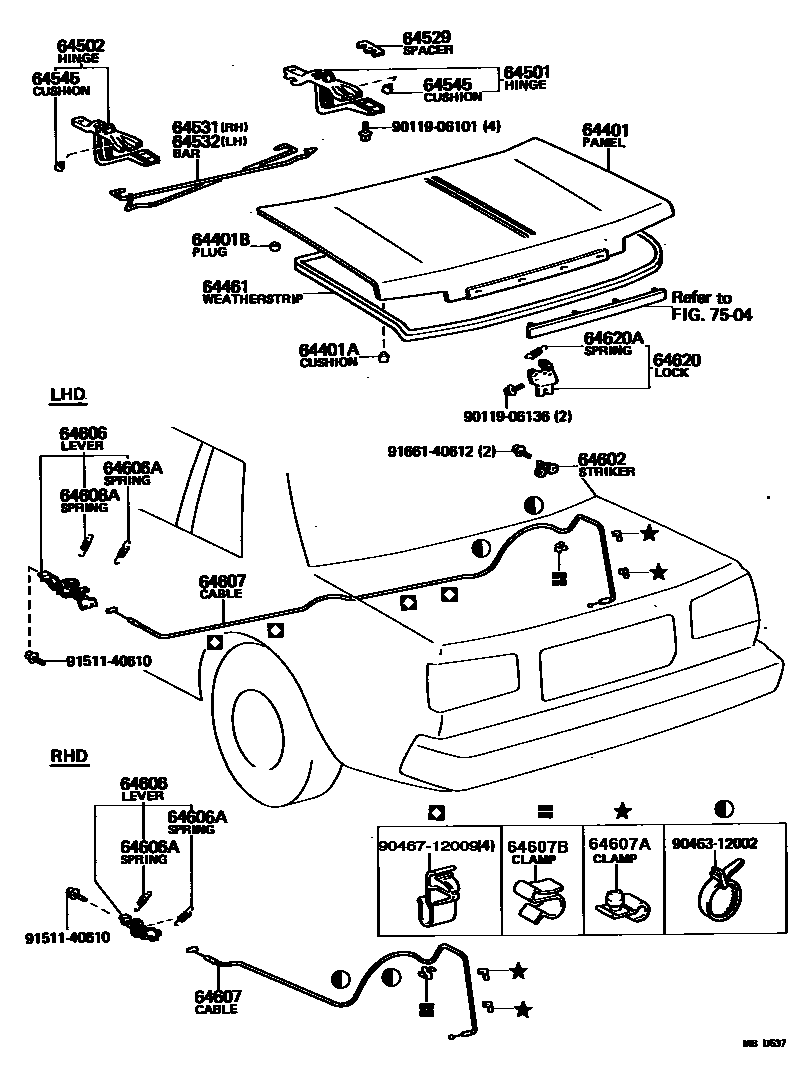

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-14370iAA63,RA6#,SA63,TA60..CP198108-198507

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09021iAA63,RA6#,SA63,TA60..CP198108-198507

sub90541-09068

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iAA63,RA6#,SA63,TA60..CP198108-198507

sub90541-06056

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-14190iAA63,RA6#,SA63,TA60..CP198108-198507

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-14110iAA63,RA6#,SA63,TA60..CP198108-198507

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-14100iAA63,RA6#,SA63,TA60..CP198108-198507

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010iAA63,RA6#,SA63,TA60..CP198108-198507

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-14140iAA63,RA6#,SA63,TA60..CP198108-198507

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-14140iAA63,RA6#,SA63,TA60..CP198108-198507

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iAA63,RA6#,SA63,TA60..CP198108-198507

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-95800iAA63,RA6#,SA63,TA60..CP198108-198507

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iAA63,RA6#,SA63..CP..RHD..(ARL,GEN)198108-198507

main64606-14050iRA60,63,TA60..CP..LHD..GEN198108-198507

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iRA60,63,TA60..CP..(ARL,GEN)198108-198507

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-14090iAA63,RA6#,SA63..CP..RHD..(ARL,GEN)198108-198507

main64607-14110iRA60,63,TA60..CP..LHD..GEN198108-198507

sub64607-32030

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iRA60,63,TA60..CP..(ARL,GEN)198108-198507

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iAA63,RA6#,SA63,TA60..CP..(ARL,GEN,ME,SAA)198108-198507

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-14050iAA63,RA6#,SA63,TA60..CP198108-198507

main64610-14060iAA63,RA6#,SA63,TA60..CP..(ARL,GEN,ME,SAA)198112-198507

W/CANCEL

sub64610-20130

main64610-22020iRA60,63,TA60..CP..(ARL,GEN)198108-198112

W/CANCEL

sub64610-14060

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09001iAA63,RA6#,SA63,TA60..CP..(ARL,GEN,ME,SAA)198108-198507

W/CANCEL

main90506-10028iAA63,RA6#,SA63,TA60..CP198108-198507

7504

9011906101

main90119-06101

9011906136

main90119-06136

9046312002

main90463-12002

9046712009

main90467-12009

9151140610

main91511-40610

9166140612

main91661-40612

25 parts on this diagram · 1 diagram in section
