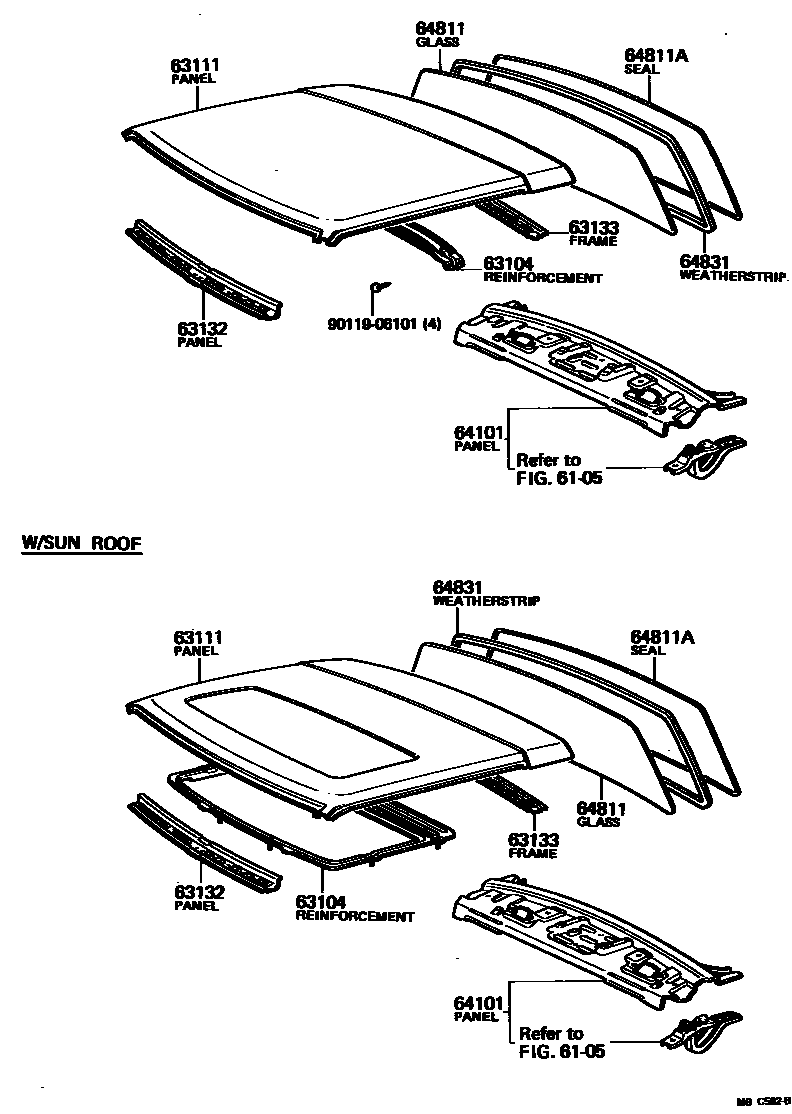

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

6105

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-14060iAA63,MA61,RA6#,SA63,TA60198108-198512

W/O SUN ROOF

main63142-14030iRA6#,TA60..ARL,EUR,GEN198108-198512

W/SUN ROOF

63111PANEL, ROOF

main63111-14140iAA63,RA6#,SA63,TA60..CP198108-198507

W/O SUN ROOF

main63111-14150iAA63,RA6#,SA63,TA60..CP198108-198507

W/SUN ROOF

main63111-14160iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

W/O SUN ROOF

main63111-14170iRA6#,TA60..LB..(ARL,EUR,GEN)198108-198512

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63102-14070iAA63,MA61,RA6#,SA63,TA60198108-198512

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

main63133-14090iAA63,RA6#,SA63,TA60..CP198108-198507

64101PANEL SUB-ASSY, UPPER BACK

main64101-14170iAA63,RA60,61,TA60..CP..(GTS,LT,ST)..(EUR,GEN)198108-198507

main64101-14180iRA60..ST..ARL198108-198208

main64101-14181iRA60,65,SA63..ST..ARL198208-198507

main64101-14190iAA63,RA60,61,63..CP..(GT,XT)198108-198507

64811GLASS, BACK WINDOW

main64801-14400iAA63,RA6#,SA63,TA60..CP198108-198507

T=3.5,*EHTT

main64811-14590iAA63,RA61,TA60..CP..(GTS,LT,ST)..EUG198108-198507

T=3.5,*TT

sub64801-14400

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14030iAA63,RA6#,SA63,TA60..CP198108-198507

sub64814-20020

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14120iTA60..LT198108-198308

main64812-14130iAA63,RA6#,SA63,TA60..CP..(GT,GTS,ST,XT)198108-198507

9011906101

main90119-06101

10 parts on this diagram · 4 diagrams in section
