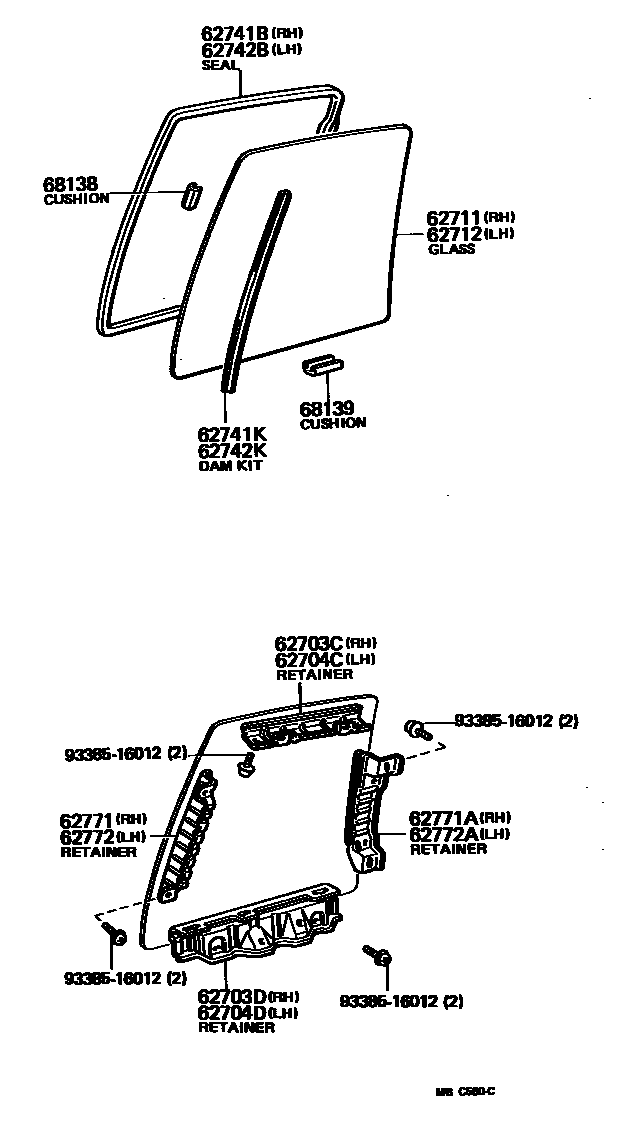

QUARTER WINDOW

0001 1 0002 1

62703CRETAINER, QUARTER WINDOW GLASS, UPPER, RH

main62763-14020iAA63,RA6#,SA63,TA60..CP198108-198507

main62763-14030iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

62703DRETAINER, QUARTER WINDOW GLASS, LOWER, RH

main62765-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

62704CRETAINER, QUARTER WINDOW GLASS, UPPER, LH

main62763-14020iAA63,RA6#,SA63,TA60..CP198108-198507

main62764-14020iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

62704DRETAINER, QUARTER WINDOW GLASS, LOWER, LH

main62766-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

62711GLASS, QUARTER WINDOW, RH

main62711-14110iAA63,RA6#,SA63,TA60..CP198108-198507

T=3.5,*TT

main62711-14120iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

T=3.5,*TT

62712GLASS, QUARTER WINDOW, LH

main62712-14110iAA63,RA6#,SA63,TA60..CP198108-198507

T=3.5,*TT

main62712-14120iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

T=3.5,*TT

62741BSEAL, QUARTER WINDOW GLASS, RH

main68177-14010iAA63,RA6#,SA63,TA60..CP198108-198507

sub68177-32030

main68177-14020iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

sub68177-32030

62741KDAM KIT, QUARTER WINDOW, RH

main04681-20010iAA63,MA61,RA6#,SA63,TA60198108-198512

62742BSEAL, QUARTER WINDOW GLASS, LH

main68177-14010iAA63,RA6#,SA63,TA60..CP198108-198507

sub68177-32030

main68177-14020iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

sub68177-32030

62742KDAM KIT, QUARTER WINDOW, LH

main04681-20010iAA63,MA61,RA6#,SA63,TA60198108-198512

62771RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH

main62761-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

62771ARETAINER, QUARTER WINDOW GLASS, REAR RH

main62767-14020iAA63,RA6#,SA63,TA60..CP198108-198507

62772RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH

main62761-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

62772ARETAINER, QUARTER WINDOW GLASS, REAR LH

main62768-14020iAA63,RA6#,SA63,TA60..CP198108-198507

68138CUSHION, QUARTER WINDOW, NO.2 UPPER

main62785-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

68139CUSHION, QUARTER WINDOW, NO.2 LOWER

main62786-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

9338516012

main93385-16012

17 parts on this diagram · 2 diagrams in section
