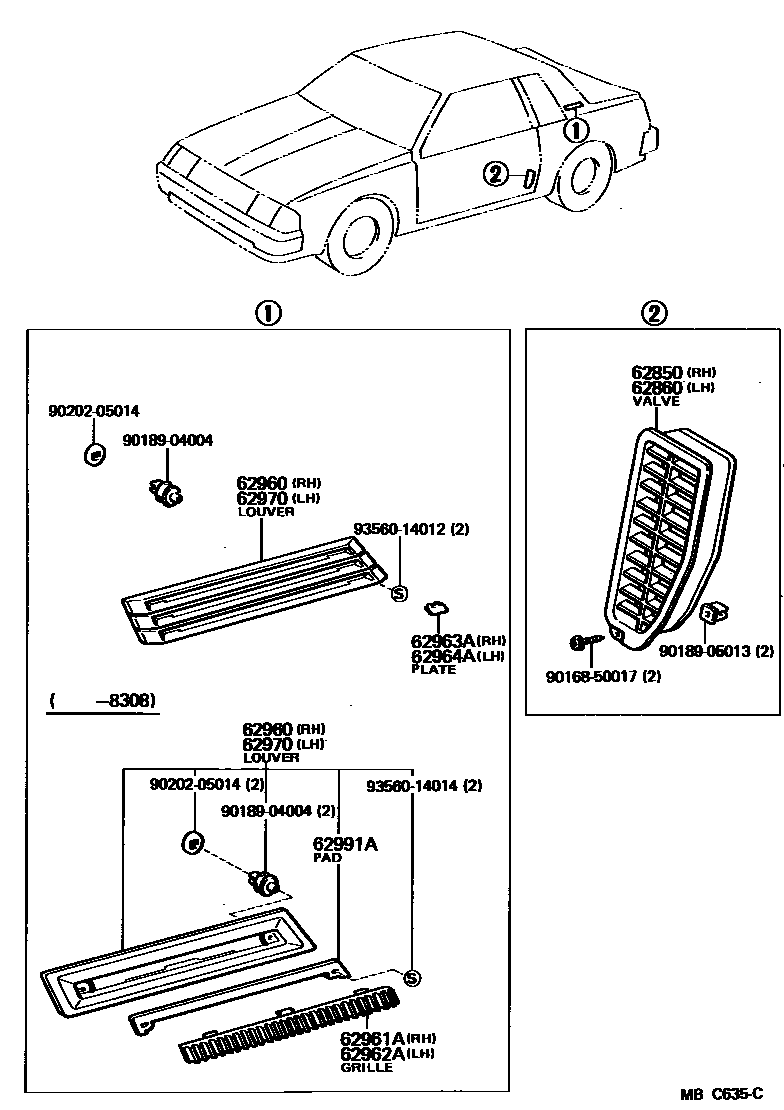

ROOF SIDE VENTILATOR

0001 1 0002 1

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62860-14030iAA63,MA61,RA6#,SA63,TA60198108-198512

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-19265iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

sub62905-14040

main62951-14110iAA63,RA6#,SA63,TA60..CP198308-198507

main62951-19265iRA6#,TA60..CP198108-198308

62961AGRILLE, ROOM VENT, RH

main62961-14020iRA6#,TA60..CP198108-198308

62962AGRILLE, ROOM VENT, LH

main62962-14020iRA6#,TA60..CP198108-198308

62963APLATE, QUARTER VENT LOUVER, RH

main62963-14020iAA63,RA6#,SA63,TA60..CP198308-198507

62964APLATE, QUARTER VENT LOUVER, LH

main62964-14020iAA63,RA6#,SA63,TA60..CP198308-198507

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-19245iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

sub62906-14040

main62952-14090iAA63,RA6#,SA63,TA60..CP198308-198507

main62952-19175iRA6#,TA60..CP198108-198308

62991APAD, QUARTER VENT LOUVER

main62991-14050iRA6#,TA60..CP198108-198308

9016850017

main90168-50017

9018904004

main90189-04004

9018905013

main90189-05013

9020205014

main90202-05014

9356014012

main93560-14012

9356014014

main93560-14014

15 parts on this diagram · 2 diagrams in section
