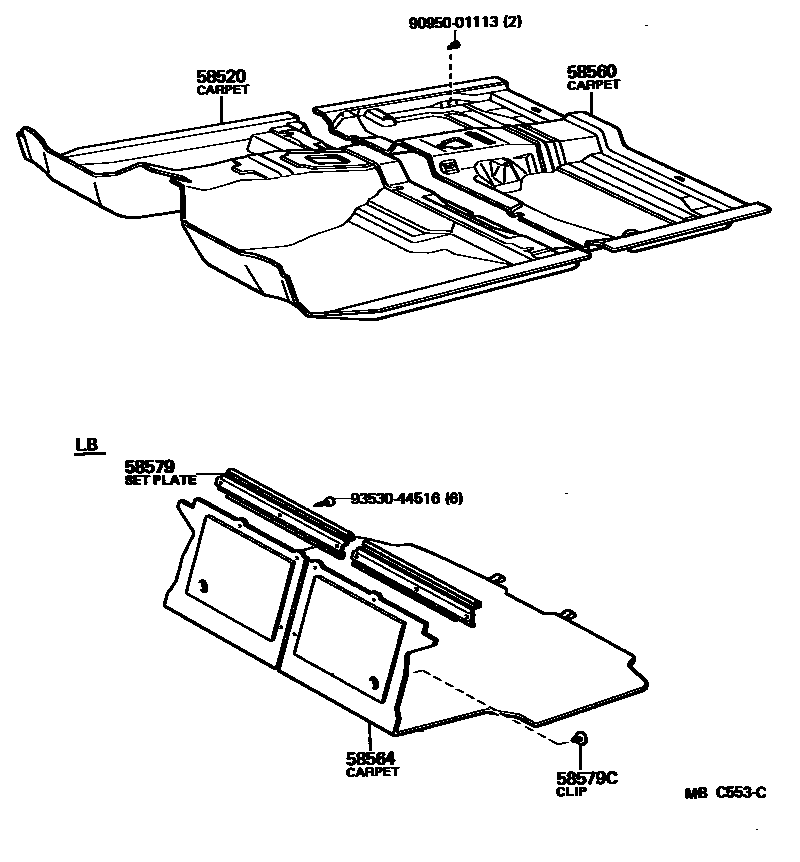

MAT & CARPET

58520CARPET ASSY, FRONT FLOOR

main58510-14540-01iMA61,RA61..RHD..(SPR,XT)198108-198308

W/RR DUCT,BLACK,BLACK,TRIM2#

sub58510-14540

main58510-14540-02iMA61..RHD198209-198308

GEN SPEC,W/RR DUCT,TERRA COTTA,RED/MAROON,TRIM3#

sub58510-14540

main58510-14540-03iMA61,RA61..RHD..(SPR,XT)198308-198405

W/RR DUCT,GRAY,GRAY,TRIM2#

sub58510-14540

main58510-14540-04iMA61,RA61..RHD..(SPR,XT)198308-198408

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14540

main58510-14540-05iRA61..RHD..XT198308-198408

W/RR DUCT,BEIGE,BEIGE,TRIM4#

sub58510-14540

main58510-14540-06iMA61..RHD198108-198308

W/RR DUCT,DARK BROWN,BROWN,TRIM4#

sub58510-14540

main58510-14540-13iMA61,RA61..RHD..(SPR,XT)198405-198512

W/RR DUCT,GRAY,GRAY,TRIM2#

sub58510-14540

main58510-14540-14iMA61,RA61..RHD..(SPR,XT)198108-198308

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14540

main58510-14540-15iRA61..RHD..XT198408-198512

W/RR DUCT,BEIGE,BEIGE,TRIM4#

sub58510-14540

main58510-14540-24iMA61,RA61..RHD..(SPR,XT)198408-198512

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14540

main58510-14640-01iRA60,61..RHD..ST198108-198308

BLACK,BLACK,TRIM2#

sub58510-14640

main58510-14640-03iRA61,SA63..RHD..ST198308-198408

GRAY,GRAY,TRIM2#

sub58510-14640

main58510-14640-04iRA6#..CP..ST198308-198507

BLUE,BLUE,TRIM8#

sub58510-14640

main58510-14640-05iRA6#..CP..ST198308-198507

BEIGE,BEIGE,TRIM4#

sub58510-14640

main58510-14640-06iRA60,61..RHD..ST198108-198308

DARK BROWN,BROWN,TRIM8#

sub58510-14640

main58510-14640-13iRA6#..CP..ST198408-198507

GRAY,GRAY,TRIM2#

sub58510-14640

main58510-14640-14iRA60,61..RHD..ST198108-198308

BLUE,BLUE,TRIM8#

sub58510-14640

main58510-14650-01iRA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)198108-198308

BLACK,BLACK,TRIM2#

main58510-14650-03iAA63,RA61,TA60..LHD..(GTS,ST)198308-198408

GRAY,GRAY,TRIM2#

main58510-14650-04iAA63,RA61,TA60..LHD..(GTS,ST)198308-198507

BLUE,BLUE,TRIM8#

main58510-14650-05iAA63,RA61,TA60..LHD..(GTS,ST)198308-198507

BEIGE,BEIGE,TRIM4#

main58510-14650-06iRA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)198108-198308

DARK BROWN,BROWN,TRIM4#

main58510-14650-13iAA63,RA61,TA60..LHD..(GTS,ST)198408-198507

GRAY,GRAY,TRIM2#

main58510-14650-14iRA61..LHD..ST..EUG;RA60,TA60..LHD..(LT,ST)198108-198308

BLUE,BLUE,TRIM8#

main58510-14660-01iRA61..RHD..ST198108-198308

W/RR DUCT,BLACK,BLACK,TRIM2#

sub58510-14660

main58510-14660-06iRA61..RHD..ST198108-198308

W/RR DUCT,DARK BROWN,BROWN,TRIM4#

sub58510-14660

main58510-14660-14iRA61..RHD..ST198108-198308

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14660

main58510-14680-01iRA61,TA60..LHD..(LT,ST)..EUR198108-198308

W/RR DUCT,BLACK,BLACK,TRIM2#

sub58510-14680

main58510-14680-03iAA63,RA61,TA60..(GTS,ST)..EUR198308-198408

W/RR DUCT,GRAY,GRAY,TRIM2#

sub58510-14680

main58510-14680-04iAA63,RA61,TA60..(GTS,ST)..EUR198308-198507

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14680

main58510-14680-05iAA63,RA61,TA60..(GTS,ST)..EUR198308-198507

W/RR DUCT,BEIGE,BEIGE,TRIM4#

sub58510-14680

main58510-14680-06iRA61,TA60..LHD..(LT,ST)..EUR198108-198308

W/RR DUCT,DARK BROWN,BROWN,TRIM4#

sub58510-14680

main58510-14680-13iAA63,RA61,TA60..(GTS,ST)..EUR198408-198507

W/RR DUCT,GRAY,GRAY,TRIM2#

sub58510-14680

main58510-14680-14iRA61,TA60..LHD..(LT,ST)..EUR198108-198308

W/RR DUCT,BLUE,BLUE,TRIM8#

sub58510-14680

main58510-14690-01iMA61,RA6#..RHD..(GT,SPR,XT)198108-198308

BLACK,BLACK,TRIM2#

sub58510-14690

main58510-14690-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub58510-14690

main58510-14690-03iAA63,MA61,RA61,SA63..RHD..(GT,SPR,XT)198308-198405

GRAY,GRAY,TRIM2#

sub58510-14690

main58510-14690-04iAA63,MA61,RA61,SA63..RHD..(GT,SPR,XT)198308-198408

BLUE,BLUE,TRIM8#

sub58510-14690

main58510-14690-05iAA63,RA61,SA63..RHD..(GT,XT)198308-198408

BEIGE,BEIGE,TRIM4#

sub58510-14690

main58510-14690-06iMA61..RHD198108-198308

DARK BROWN,BROWN,TRIM4#

sub58510-14690

main58510-14690-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub58510-14690

main58510-14690-13iAA63,MA61,RA6#,SA63..RHD..(GT,SPR,XT)198405-198512

GRAY,GRAY,TRIM2#

sub58510-14690

main58510-14690-14iMA61,RA6#..RHD..(GT,SPR,XT)198108-198308

BLUE,BLUE,TRIM8#

sub58510-14690

main58510-14690-15iAA63,RA6#..RHD..(GT,XT)198408-198512

BEIGE,BEIGE,TRIM4#

sub58510-14690

main58510-14690-24iAA63,MA61,RA6#..RHD..(GT,SPR,XT)198408-198512

BLUE,BLUE,TRIM8#

sub58510-14690

main58510-14770-01iMA61,RA61,63..LHD..(GT,SPR,XT)..EUR198108-198308

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14770-02iMA61..LHD..EUG198209-198308

GEN SPEC,W/RR DUCT,TERRA COTTA,RED/MAROON,TRIM3#

main58510-14770-03iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198308-198405

W/RR DUCT,GRAY,GRAY,TRIM2#

main58510-14770-04iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198308-198408

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14770-05iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198308-198408

W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58510-14770-06iMA61,RA61,63..LHD..(GT,SPR,XT)..EUR198108-198308

W/RR DUCT,DARK BROWN,BROWN,TRIM4#

main58510-14770-13iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198405-198512

W/RR DUCT,GRAY,GRAY,TRIM2#

main58510-14770-14iMA61,RA61,63..LHD..(GT,SPR,XT)..EUR198108-198308

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14770-15iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198408-198512

W/RR DUCT,BEIGE,BEIGE,TRIM4#

main58510-14770-24iAA63,MA61,RA61..LHD..(GT,SPR,XT)..EUR198408-198512

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14780-01iMA61,RA6#..LHD..(GT,SPR,XT)198108-198308

BLACK,BLACK,TRIM2#

main58510-14780-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58510-14780-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main58510-14780-03iAA63,MA61,RA61..LHD..(GT,SPR,XT)198308-198405

GRAY,GRAY,TRIM2#

main58510-14780-04iAA63,MA61,RA61..LHD..(GT,SPR,XT)198308-198408

BLUE,BLUE,TRIM8#

main58510-14780-05iAA63,RA61..LHD..(GT,XT)198308-198408

BEIGE,BEIGE,TRIM4#

main58510-14780-06iRA6#..LHD..(GT,XT)198108-198308

DARK BROWN,BROWN,TRIM4#

main58510-14780-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main58510-14780-13iAA63,MA61,RA61..LHD..(GT,SPR,XT)198405-198512

GRAY,GRAY,TRIM2#

main58510-14780-14iMA61,RA6#..LHD..(GT,SPR,XT)198108-198308

BLUE,BLUE,TRIM8#

main58510-14780-15iMA61..LHD..EUR198408-198512

BEIGE,BEIGE,TRIM4#

main58510-14780-24iAA63,MA61,RA61..LHD..(GT,SPR,XT)198408-198512

BLUE,BLUE,TRIM8#

58560CARPET ASSY, FLOOR, REAR

main58540-14190-01iRA60,61,TA60..LT,ST198108-198308

BLACK,BLACK,TRIM2#

sub58540-14190

main58540-14190-03iAA63,RA61,SA63,TA60..GTS,ST198308-198408

GRAY,GRAY,TRIM2#

sub58540-14190

main58540-14190-04iAA63,RA6#,SA63,TA60..GTS,ST198308-198507

BLUE,BLUE,TRIM8#

sub58540-14190

main58540-14190-05iAA63,RA6#,SA63,TA60..GTS,ST198308-198507

BEIGE,BEIGE,TRIM4#

sub58540-14190

main58540-14190-06iRA60,61,TA60..LT,ST198108-198308

DARK BROWN,BROWN,TRIM4#

sub58540-14190

main58540-14190-13iAA63,RA6#,TA60..GTS,ST198408-198507

GRAY,GRAY,TRIM2#

sub58540-14190

main58540-14190-14iRA60,61,TA60..LT,ST198108-198308

BLUE,BLUE,TRIM8#

sub58540-14190

main58540-14250-01iMA61,RA6#..RHD..(GT,SPR,XT)198108-198308

BLACK,BLACK,TRIM2#

sub58540-14250

main58540-14250-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub58540-14250

main58540-14250-03iAA63,MA61,RA61,SA63..RHD..(GT,SPR,XT)198308-198405

GRAY,GRAY,TRIM2#

sub58540-14250

main58540-14250-04iAA63,MA61,RA61,SA63..RHD..(GT,SPR,XT)198308-198408

BLUE,BLUE,TRIM8#

sub58540-14250

main58540-14250-05iMA61..RHD..(EUR,SA)198308-198408

BEIGE,BEIGE,TRIM4#

sub58540-14250

main58540-14250-06iRA6#..RHD..(GT,XT)198108-198308

DARK BROWN,BROWN,TRIM4#

sub58540-14250

main58540-14250-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub58540-14250

main58540-14250-13iAA63,MA61,RA6#,SA63..RHD..(GT,SPR,XT)198405-198512

GRAY,GRAY,TRIM2#

sub58540-14250

main58540-14250-14iMA61,RA6#..RHD..(GT,SPR,XT)198108-198308

BLUE,BLUE,TRIM8#

sub58540-14250

main58540-14250-24iAA63,MA61,RA6#..RHD..(GT,SPR,XT)198408-198512

BLUE,BLUE,TRIM8#

sub58540-14250

main58540-14250-25iAA63,RA6#..RHD..(GT,XT)198408-198512

BEIGE,BEIGE,TRIM4#

sub58540-14250

main58540-14290-01iMA61,RA6#..LHD..(GT,SPR,XT)198108-198308

BLACK,BLACK,TRIM2#

main58540-14290-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main58540-14290-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main58540-14290-03iAA63,MA61,RA61..LHD..(GT,SPR,XT)198308-198405

GRAY,GRAY,TRIM2#

main58540-14290-04iAA63,MA61,RA61..LHD..(GT,SPR,XT)198308-198408

BLUE,BLUE,TRIM8#

main58540-14290-05iMA61..LHD..EUR198308-198408

BEIGE,BEIGE,TRIM4#

main58540-14290-06iMA61..LHD..EUG198108-198308

DARK BROWN,BROWN,TRIM4#

main58540-14290-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main58540-14290-13iAA63,MA61,RA61..LHD..(GT,SPR,XT)198405-198512

GRAY,GRAY,TRIM2#

main58540-14290-14iMA61,RA6#..LHD..(GT,SPR,XT)198108-198308

BLUE,BLUE,TRIM8#

main58540-14290-15iAA63,RA61..LHD..(GT,XT)198408-198512

BEIGE,BEIGE,TRIM4#

main58540-14290-24iAA63,MA61,RA61..LHD..(GT,SPR,XT)198408-198512

BLUE,BLUE,TRIM8#

58564CARPET, REAR FLOOR

main58570-14100-01iRA60,TA60..LB..ST198108-198507

BLACK,BLACK,TRIM2#

main58570-14100-04iRA60,TA60..LB..ST198108-198507

BLUE,BLUE,TRIM8#

main58570-14100-06iRA60,TA60..LB..ST198108-198507

DARK BROWN,BROWN,TRIM4#

main58570-14110-01iRA60..LB..(GT,XT)198108-198308

BLACK,BLACK,TRIM2#

main58570-14110-04iRA60..LB..(GT,XT)198108-198308

BLUE,BLUE,TRIM8#

main58570-14110-06iRA60..LB..(GT,XT)198108-198308

DARK BROWN,BROWN,TRIM4#

main58570-14130-01iRA63..LB..GEN198108-198507

BLACK,BLACK,TRIM2#

sub58570-14130

main58570-14130-04iRA63..LB..GEN198108-198507

BLUE,BLUE,TRIM8#

sub58570-14130

main58570-14130-06iRA63..LB..GEN198108-198507

DARK BROWN,BROWN,TRIM4#

sub58570-14130

main58570-14150-01iMA61..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

sub58570-14150

main58570-14150-01iMA61..SAA198208-198308

BLACK,BLACK,TRIM2#

sub58570-14150

main58570-14150-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub58570-14150

main58570-14150-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub58570-14150

main58570-14150-04iMA61..EUG198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

sub58570-14150

main58570-14150-04iMA61..SAA198208-198308

BLUE,BLUE,TRIM8#

sub58570-14150

main58570-14220-01iAA63..LB..GTS198108-198507

BLACK,BLACK,TRIM2#

main58570-14220-04iRA61..LB..ST198108-198507

BLUE,BLUE,TRIM8#

main58570-14220-06iAA63..LB..GTS198108-198507

DARK BROWN,BROWN,TRIM4#

main58570-14230-01iMA61,RA61,63..LB..(GT,SPR,XT)..EUR198108-198308

BLACK,BLACK,TRIM2#

sub58570-14231

main58570-14230-04iMA61,RA61,63..LB..(GT,SPR,XT)..EUR198108-198308

BLUE,BLUE,TRIM8#

sub58570-14231

main58570-14230-06iMA61,RA61,63..LB..(GT,SPR,XT)..EUR198108-198308

DARK BROWN,BROWN,TRIM4#

sub58570-14231

main58570-14231-01iAA63,MA61,RA6#,SA63..LB..(GT,SPR,XT)198308-198512

BLACK,BLACK,TRIM2#

sub58570-14231

main58570-14231-04iAA63,MA61,RA6#,SA63..LB..(GT,SPR,XT)198308-198512

BLUE,BLUE,TRIM8#

sub58570-14231

main58570-14231-06iMA61..EUR,SA198308-198512

DARK BROWN,BROWN,TRIM4#

sub58570-14231

main58570-14231-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub58570-14231

58579SET PLATE, REAR FLOOR CARPET, NO.1

main58583-14020iAA63,RA6#,SA63,TA60..LB198108-198507

RH

main58584-14010iAA63,RA6#,SA63,TA60..LB198108-198507

LH

58579CCLIP, REAR FLOOR CARPET SET

main90467-06016-01iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLACK,BLACK,TRIM2#

sub90467-06016

sub90467-07049

main90467-06016-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub90467-06016

sub90467-07049

main90467-06016-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-06016

sub90467-07049

main90467-06016-04iAA63,MA61,RA6#,SA63,TA60..LB198108-198512

BLUE,BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-06iMA61..EUR,SA198108-198512

DARK BROWN,BROWN,TRIM4#

sub90467-06016

sub90467-07049

main90467-06016-22iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub90467-06016

sub90467-07049

9095001113

main90950-01113

9353044516

main93530-44516

7 parts on this diagram · 1 diagram in section
