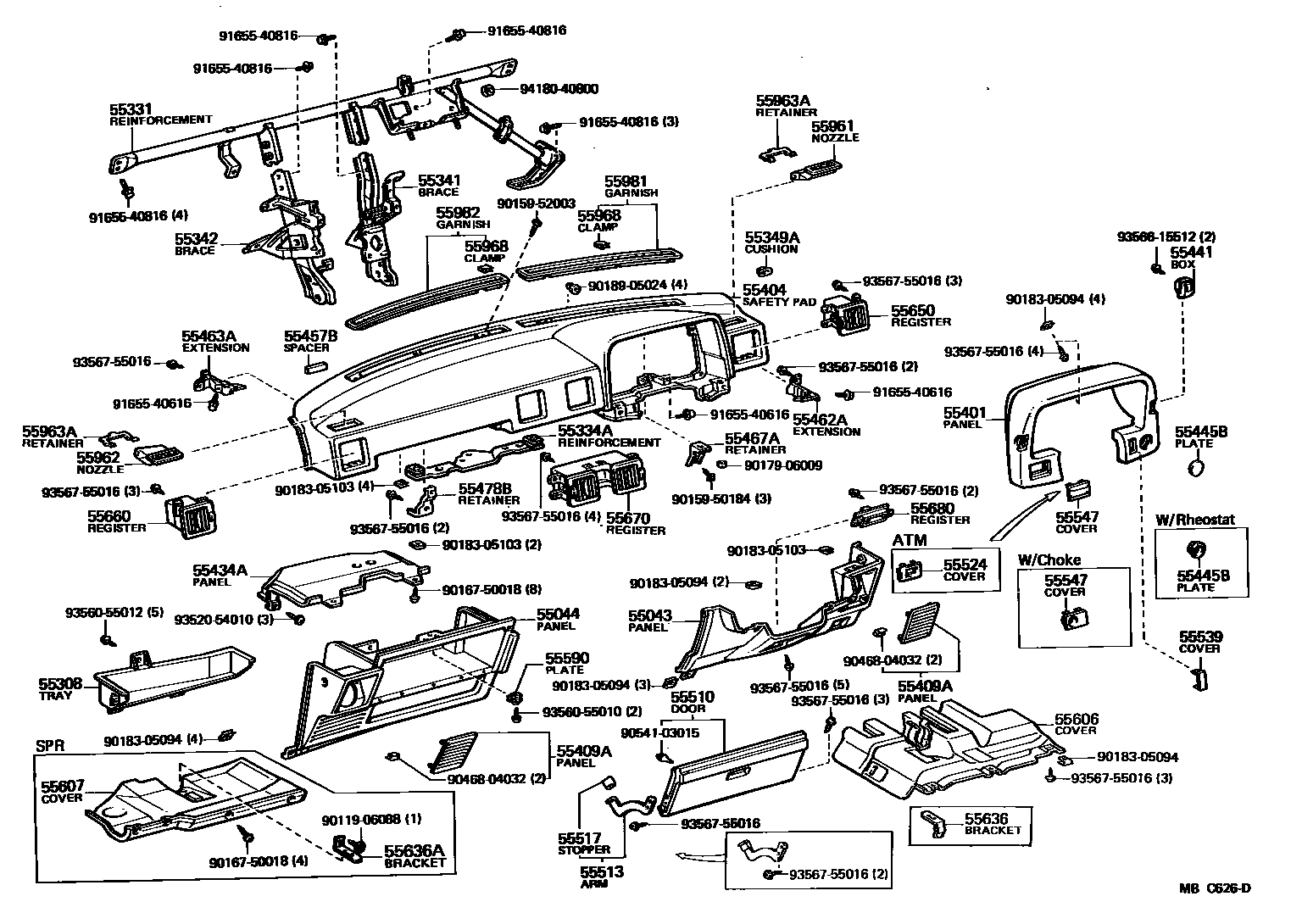

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0004 1

55043PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

main55045-14050-01iAA63,RA60,61,63,TA60..LHD198108-198507

BLACK,BLACK,TRIM2#

main55045-14050-04iMA61..LHD..EUR198112-198512

BLUE,BLUE,TRIM8#

main55045-14050-06iMA61..LHD..EUR198112-198512

DARK BROWN,BROWN,TRIM4#

main55045-14070-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55045-14070-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55045-14070-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55045-14070-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55045-14070-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55402-14010-01iMA61..LHD..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main55402-14010-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55402-14010-04iMA61..LHD..(GEN,SAA)198208-198512

BLUE,BLUE,TRIM8#

main55402-14010-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55044PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

main55046-14060-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55046-14060-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55046-14060-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55046-14060-06iMA61..RHD..(EUR,SA)198112-198512

DARK BROWN,BROWN,TRIM4#

main55046-14060-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55046-14070-01iAA63,RA60,61,63,TA60..LHD198108-198507

BLACK,BLACK,TRIM2#

main55046-14070-04iMA61..LHD..EUR198112-198512

BLUE,BLUE,TRIM8#

main55046-14070-06iAA63,RA60,61,63,TA60..LHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55403-14030-01iMA61..LHD..(GEN,SAA)198208-198512

BLACK,BLACK,TRIM2#

main55403-14030-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55403-14030-04iMA61..LHD..(GEN,SAA)198208-198512

BLUE,BLUE,TRIM8#

main55403-14030-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14180-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55601-14180-04iMA61,RA6#..RHD198108-198209

BLUE,BLUE,TRIM8#

main55601-14180-06iMA61,RA6#..RHD198108-198209

DARK BROWN,BROWN,TRIM4#

main55601-14190-01iMA61..LHD..EUR198112-198512

BLACK,BLACK,TRIM2#

main55601-14190-04iMA61,RA6#,TA60..LHD..(EUR,GEN,ME)198108-198209

BLUE,BLUE,TRIM8#

main55601-14190-06iMA61,RA6#,TA60..LHD..(EUR,GEN,ME)198108-198209

DARK BROWN,BROWN,TRIM4#

main55601-14200-01iRA60,61..ME,SAA198108-198507

W/COOLER,BLACK,BLACK,TRIM2#

main55601-14200-04iRA60..ME198108-198209

W/COOLER.BLUE,BLUE,TRIM8#

main55601-14200-06iRA60..ME198108-198209

W/COOLER,DARK BROWN,BROWN,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14010iAA63,MA61,RA6#,SA63..RHD198108-198512

main55330-14020iMA61..LHD..EUR198112-198512

main55330-14030iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

55334AREINFORCEMENT, INSTRUMENT PANEL, UPPER

main55334-14011iAA63,MA61,RA6#,SA63..RHD198108-198512

main55334-14020iAA63,RA60,61,63,TA60..LHD198108-198507

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14030iAA63,MA61,RA6#,SA63..RHD198108-198512

main55306-14040iAA63,RA60,61,63,TA60..LHD198108-198507

main55306-14050iMA61..LHD..(GEN,SAA)198208-198512

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14080iAA63,MA61,RA6#,SA63..RHD198108-198512

main55307-14090iMA61..LHD..EUR198112-198512

main55307-14100iMA61..LHD..EUG198209-198308

GENERAL COUNTRIES SPEC

55349ACUSHION, INSTRUMENT PANEL

main90467-13014×2iAA63,MA61,RA6#,SA63,TA60198108-198512

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14450-01iAA63,RA6#,SA63..RHD198108-198507

BLACK,BLACK,TRIM2#

main55404-14450-04iMA61..RHD..(EUR,SA)198112-198512

BLUE,BLUE,TRIM8#

main55404-14450-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55404-14460-01iMA61..LHD..EUR198112-198512

BLACK,BLACK,TRIM2#

main55404-14460-04iAA63,RA60,61,63,TA60..LHD198108-198507

BLUE,BLUE,TRIM8#

main55404-14460-06iMA61..LHD..EUR198112-198512

DARK BROWN,BROWN,TRIM4#

main55404-14470-01iMA61..RHD198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main55404-14470-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55404-14470-04iMA61..RHD..(ARL,GEN)198308-198512

BLUE,BLUE,TRIM8#

main55404-14470-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55404-14480-01iMA61..LHD..(GEN,SAA)198208-198512

BLACK,BLACK,TRIM2#

main55404-14480-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55404-14480-04iMA61..LHD..EUG198209-198308

GEN SPEC,BLUE,BLUE,TRIM8#

main55404-14480-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14360-01iAA63,RA6#,SA63..RHD198108-198507

BLACK,BLACK,TRIM2#

main55401-14360-04iMA61..RHD..(EUR,SA)198112-198512

BLUE,BLUE,TRIM8#

main55401-14360-06iMA61..RHD..(EUR,SA)198112-198512

DARK BROWN,BROWN,TRIM4#

main55401-14370-01iMA61..LHD..EUR198112-198512

BLACK,BLACK,TRIM2#

main55401-14370-04iAA63,RA60,61,63,TA60..LHD198108-198507

BLUE,BLUE,TRIM8#

main55401-14370-06iMA61..LHD..EUR198112-198512

DARK BROWN,BROWN,TRIM4#

main55401-14380-01iMA61..RHD198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main55401-14380-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55401-14380-04iMA61..RHD..(ARL,GEN)198308-198512

BLUE,BLUE,TRIM8#

main55401-14380-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55401-14470-01iMA61..LHD..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main55401-14470-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55401-14470-04iMA61..LHD..(GEN,SAA)198208-198512

BLUE,BLUE,TRIM8#

main55401-14470-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55408-14010-01iAA63,RA6#,SA63..RHD198108-198507

RH,BLACK,BLACK,TRIM2#

main55408-14010-04iAA63,RA6#,SA63..RHD198108-198507

RH,BLUE,BLUE,TRIM8#

main55408-14010-06iAA63,RA6#,SA63..RHD198108-198507

RH,DARK BROWN,BROWN,TRIM4#

main55408-14020-01iAA63,RA60,61,63,TA60..LHD198108-198507

LH,BLACK,BLACK,TRIM2#

main55408-14020-04iAA63,RA60,61,63,TA60..LHD198108-198507

LH,BLUE,BLUE,TRIM8#

main55408-14020-06iAA63,RA60,61,63,TA60..LHD198108-198507

LH,DARK BROWN,BROWN,TRIM4#

main55408-14030-01iMA61..RHD198112-198512

RH,BLACK,BLACK,TRIM2#

main55408-14030-02iMA61..RHD198209-198308

GEN SPEC,RH,TERRA COTTA,RED/MAROON,TRIM3#

main55408-14030-04iMA61..RHD198112-198212

RH,BLUE,BLUE,TRIM8#

main55408-14030-06iMA61..RHD198112-198212

RH,DARK BROWN,BROWN,TRIM4#

main55408-14030-12iMA61..RHD..(ARL,GEN)198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55408-14030-14iMA61..RHD198212-198512

RH,BLUE,BLUE,TRIM8#

main55408-14030-26iMA61..RHD..(EUR,SA)198212-198512

RH,DARK BROWN,BROWN,TRIM4#

main55408-14040-01iMA61..LHD..EUR198112-198512

LH,BLACK,BLACK,TRIM2#

main55408-14040-04iMA61..LHD..EUG198112-198212

LH,BLUE,BLUE,TRIM8#

main55408-14040-06iMA61..LHD..EUG198112-198212

LH,DARK BROWN,BROWN,TRIM4#

main55408-14040-14iMA61..LHD..EUR198212-198512

LH,BLUE,BLUE,TRIM8#

main55408-14040-26iMA61..LHD..EUR198212-198512

LH,DARK BROWN,BROWN,TRIM4#

main55408-14050-01iMA61..LHD..(GEN,SAA)198208-198512

LH,BLACK,BLACK,TRIM2#

main55408-14050-02iMA61..SAA198208-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

main55408-14050-04iMA61..SAA198208-198212

LH,BLUE,BLUE,TRIM8#

main55408-14050-12iMA61..LHD..(GEN,SAA)198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55408-14050-14iMA61..LHD..(GEN,SAA)198212-198512

LH,BLUE,BLUE,TRIM8#

main55409-14010-01iAA63,RA6#,SA63..RHD198108-198507

LH,BLACK,BLACK,TRIM2#

main55409-14010-04iAA63,RA6#,SA63..RHD198108-198507

LH,BLUE,BLUE,TRIM8#

main55409-14010-06iAA63,RA6#,SA63..RHD198108-198507

LH,DARK BROWN,BROWN,TRIM4#

main55409-14020-01iAA63,RA60,61,63,TA60..LHD198108-198507

RH,BLACK,BLACK,TRIM2#

main55409-14020-04iAA63,RA60,61,63,TA60..LHD198108-198507

RH,BLUE,BLUE,TRIM8#

main55409-14020-06iAA63,RA60,61,63,TA60..LHD198108-198507

RH,DARK BROWN,BROWN,TRIM4#

main55409-14030-01iMA61..RHD198112-198512

LH,BLACK,BLACK,TRIM2#

main55409-14030-02iMA61..RHD198209-198308

GEN SPEC,LH,TERRA COTTA,RED/MAROON,TRIM3#

main55409-14030-04iMA61..RHD198112-198212

LH,BLUE,BLUE,TRIM8#

main55409-14030-06iMA61..RHD198112-198212

LH,DARK BROWN,BROWN,TRIM4#

main55409-14030-12iMA61..RHD..(ARL,GEN)198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55409-14030-14iMA61..RHD198212-198512

LH,BLUE,BLUE,TRIM8#

main55409-14030-26iMA61..RHD..(EUR,SA)198212-198512

LH,DARK BROWN,BROWN,TRIM4#

main55409-14040-01iMA61..LHD..EUR198112-198512

RH,BLACK,BLACK,TRIM2#

main55409-14040-04iMA61..LHD..EUG198112-198212

RH,BLUE,BLUE,TRIM8#

main55409-14040-06iMA61..LHD..EUG198112-198212

RH,DARK BROWN,BROWN,TRIM4#

main55409-14040-14iMA61..LHD..EUR198212-198512

RH,BLUE,BLUE,TRIM8#

main55409-14040-26iMA61..LHD..EUR198212-198512

RH,DARK BROWN,BROWN,TRIM4#

main55409-14050-01iMA61..LHD..(GEN,SAA)198208-198512

RH,BLACK,BLACK,TRIM2#

main55409-14050-02iMA61..LHD..EUG198209-198308

GEN SPEC,RH,TERRA COTTA,RED/MAROON,TRIM3#

main55409-14050-04iMA61..LHD..EUG198209-198212

GEN SPEC,RH,BLUE,BLUE,TRIM8#

main55409-14050-12iMA61..LHD..(GEN,SAA)198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55409-14050-14iMA61..LHD..(GEN,SAA)198212-198512

RH,BLUE,BLUE,TRIM8#

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-14030-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55434-14030-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55434-14030-04iMA61,RA6#..RHD198108-198308

BLUE,BLUE,TRIM8#

main55434-14030-06iRA6#..RHD198108-198308

DARK BROWN,BROWN,TRIM4#

main55434-14040-01iAA63,RA60,61,63,TA60..LHD198108-198507

BLACK,BLACK,TRIM2#

main55434-14040-04iMA61..LHD..EUG198112-198308

BLUE,BLUE,TRIM8#

main55434-14040-06iMA61..LHD..EUG198112-198308

DARK BROWN,BROWN,TRIM4#

55441BOX, INSTRUMENT PANEL

main55440-14010iMA61..RHD..GEN198308-198512

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-14010-01iRA60,61..RHD;RA60,61..LHD..XT;AA63,RA63,65,SA63..GT,ST,XT198108-198507

W/CHOKE,BLACK,BLACK,TRIM2#

main55445-14010-02iMA61..RHD198209-198308

W/RHEOSTATGEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55445-14010-04iRA60,61..RHD;RA60,61..LHD..XT;AA63,RA63,65,SA63..GT,ST,XT198108-198507

W/RHEOSTAT,BLUE,BLUE,TRIM8#

main55445-14010-06iRA60,61..RHD;RA60,61..LHD..XT;AA63,RA63,65,SA63..GT,ST,XT198108-198507

W/CHOKE,DARK BROWN,BROWN,TRIM4#

main55445-14010-12iMA61..RHD..(ARL,GEN)198308-198512

W/RHEOSTAT,DEEP MAROON,RED/MAROON,TRIM3#

main55445-14020-01iMA61..LHD..EUG198209-198308

W/RHEOSTAT,GEN SPEC,BLACK,BLACK,TRIM2#

main55445-14020-02iMA61..LHD..EUG198209-198308

W/RHEOSTATGEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55445-14020-04iMA61..LHD..(GEN,SAA)198208-198512

W/RHEOSTAT,BLUE,BLUE,TRIM8#

main55445-14020-12iMA61..LHD..(GEN,SAA)198308-198512

W/RHEOSTAT,DEEP MAROON,RED/MAROON,TRIM3#

main55445-14030-01iAA63,RA60,61..LHD198108-198507

W/O RHEOSTAT,BLACK,BLACK,TRIM2#

main55445-14030-04iAA63,RA60,61..LHD198108-198507

W/O RHEOSTAT,BLUE,BLUE,TRIM8#

main55445-14030-06iAA63,RA60,61..LHD198108-198507

W/O CHOKE,DARK BROWN,BROWN,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×3iAA63,MA61,RA6#,SA63,TA60198108-198512

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-14050iAA63,RA6#,SA63,TA60198108-198507

main55462-14060iMA61..LHD..(GEN,SAA)198208-198512

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-14060iMA61..RHD..GEN;MA61..ARL,EUR,SA198112-198512

main55463-14070iMA61..LHD..(GEN,SAA)198208-198512

55467ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2

main55467-14070iAA63,MA61,RA6#,SA63,TA60198108-198512

55478BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4

main55478-14010iMA61..RHD..GEN;MA61..ARL,EUR,SA198112-198512

main55478-14020iMA61..LHD..(GEN,SAA)198208-198512

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14110-01iMA61..RHD..(EUR,SA)198112-198512

BLACK,BLACK,TRIM2#

main55550-14110-04iMA61..RHD..(EUR,SA)198112-198512

BLUE,BLUE,TRIM8#

main55550-14110-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55550-14120-01iMA61..LHD..EUR198112-198512

BLACK,BLACK,TRIM2#

main55550-14120-04iMA61..LHD..EUR198112-198512

BLUE,BLUE,TRIM8#

main55550-14120-06iMA61..LHD..EUR198112-198512

DARK BROWN,BROWN,TRIM4#

main55550-14130-01iMA61..RHD..(ARL,GEN)198308-198512

BLACK,BLACK,TRIM2#

main55550-14130-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55550-14130-04iMA61..RHD..(ARL,GEN)198308-198512

BLUE,BLUE,TRIM8#

main55550-14130-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55550-14140-01iMA61..LHD..EUG198209-198308

GEN SPEC,BLACK,BLACK,TRIM2#

main55550-14140-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55550-14140-04iMA61..LHD..(GEN,SAA)198208-198512

BLUE,BLUE,TRIM8#

main55550-14140-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iAA63,MA61,RA6#,SA63,TA60198108-198512

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

55524COVER, SWITCH BACE HOLE

main55524-14010iMA61..LHD..4FC198308-198512

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-14030

sub55539-20030

main55539-24010-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub55539-32010

sub55539-14030

sub55539-20030

55547COVER, REMOTE CONTROL MIRROR HOLE

main55531-14090-01iRA63..RHD198108-198308

BLACK,BLACK,TRIM2#

main55531-14090-04iRA63..RHD198108-198308

BLUE,BLUE,TRIM8#

main55531-14090-06iRA63..RHD198108-198308

DARK BROWN,BROWN,TRIM4#

main55547-14010-01iRA63..LHD;AA63,MA61,RA60,61,65,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main55547-14010-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55547-14010-04iRA63..LHD;AA63,MA61,RA60,61,65,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main55547-14010-06iRA60,61,65,TA60;MA61,RA63..LHD..EUR198108-198512

DARK BROWN,BROWN,TRIM4#

main55547-14010-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iAA63,MA61,RA6#,SA63,TA60198108-198412

main55590-14020iAA63,MA61,RA6#,TA60198412-198512

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14030iMA61..RHD198209-198308

GENERAL COUNTRIES SPEC

main55606-14040iMA61..LHD..(GEN,SAA)198208-198512

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14030iMA61..RHD198112-198507

main55607-14040iMA61..LHD..(GEN,SAA)198208-198512

main55607-14050iMA61..LHD..EUR198112-198512

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-14030iMA61..EUG198209-198308

GENERAL COUNTRIES SPEC

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-24010iMA61198112-198512

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14070-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55650-14070-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55650-14070-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55650-14070-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55650-14070-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55650-14080-01iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLACK,BLACK,TRIM2#

main55650-14080-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55650-14080-04iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLUE,BLUE,TRIM8#

main55650-14080-06iAA63,RA60,61,63,TA60..LHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55650-14080-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14070-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55660-14070-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55660-14070-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55660-14070-06iMA61..RHD..(EUR,SA)198112-198512

DARK BROWN,BROWN,TRIM4#

main55660-14070-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55660-14080-01iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLACK,BLACK,TRIM2#

main55660-14080-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55660-14080-04iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLUE,BLUE,TRIM8#

main55660-14080-06iAA63,RA60,61,63,TA60..LHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55660-14080-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14040-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main55670-14040-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55670-14040-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main55670-14040-06iAA63,RA6#,SA63,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

main55670-14040-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14010-01iMA61..EUG198308-198512

W/COOLER,BLACK,BLACK,TRIM2#

main55680-14010-04iRA61..EUG;RA60,63,TA60..EUR,GEN,ME198108-198209

W/COOLER,BLUE,BLUE,TRIM8#

main55680-14010-06iRA61..EUG;RA60,63,TA60..EUR,GEN,ME198108-198209

W/COOLER,DARK BROWN,BROWN,TRIM4#

main55680-14020-01iMA61..LHD..(GEN,SAA)198208-198512

W/COOLER,BLACK,BLACK,TRIM2#

main55680-14020-02iMA61..SAA198208-198209

W/COOLER,TERRA COTTA,RED/MAROON,TRIM3#

main55680-14020-04iMA61..SAA198208-198209

W/COOLER,BLUE,BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14040-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55961-14040-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55961-14040-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55961-14040-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55961-14040-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55962-14030-01iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLACK,BLACK,TRIM2#

main55962-14030-02iMA61..LHD..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55962-14030-04iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLUE,BLUE,TRIM8#

main55962-14030-06iAA63,RA60,61,63,TA60..LHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55962-14030-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-14050-01iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLACK,BLACK,TRIM2#

main55961-14050-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55961-14050-04iAA63,MA61,RA60,61,63,TA60..LHD198108-198512

BLUE,BLUE,TRIM8#

main55961-14050-06iAA63,RA60,61,63,TA60..LHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55961-14050-12iMA61..LHD..(GEN,SAA)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55962-14020-01iAA63,MA61,RA6#,SA63..RHD198108-198512

BLACK,BLACK,TRIM2#

main55962-14020-02iMA61..RHD198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55962-14020-04iAA63,MA61,RA6#,SA63..RHD198108-198512

BLUE,BLUE,TRIM8#

main55962-14020-06iAA63,RA6#,SA63..RHD198108-198507

DARK BROWN,BROWN,TRIM4#

main55962-14020-12iMA61..RHD..(ARL,GEN)198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55963ARETAINER, SIDE DEFROSTER

main55963-14010×2iAA63,MA61,RA6#,SA63,TA60198108-198512

55968CLAMP, DEFROSTER NOZZLE

main55968-14010×6iAA63,MA61,RA6#,SA63,TA60198108-198512

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-14020-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main55981-14020-02iMA61..SAA198208-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55981-14020-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main55981-14020-06iMA61..EUR,SA198112-198512

DARK BROWN,BROWN,TRIM4#

main55981-14020-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-14020-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

main55982-14020-02iMA61..EUG198209-198308

GEN SPEC,TERRA COTTA,RED/MAROON,TRIM3#

main55982-14020-04iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

main55982-14020-06iAA63,RA6#,TA60198108-198507

DARK BROWN,BROWN,TRIM4#

main55982-14020-12iMA61..ARL,GEN,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

9011906088

main90119-06088

9015950184

main90159-50184

9015952003

main90159-52003

9016750018

main90167-50018

9017906009

main90179-06009

9018305094

main90183-05094

9018305103

main90183-05103

9018905024

main90189-05024

9046804032

main90468-04032

9054103015

main90541-03015

9165540616

main91655-40616

9165540816

main91655-40816

9352054010

main93520-54010

9356055010

main93560-55010

9356055012

main93560-55012

9356615512

main93566-15512

9356755016

main93567-55016

9418040800

main94180-40800

58 parts on this diagram · 3 diagrams in section
