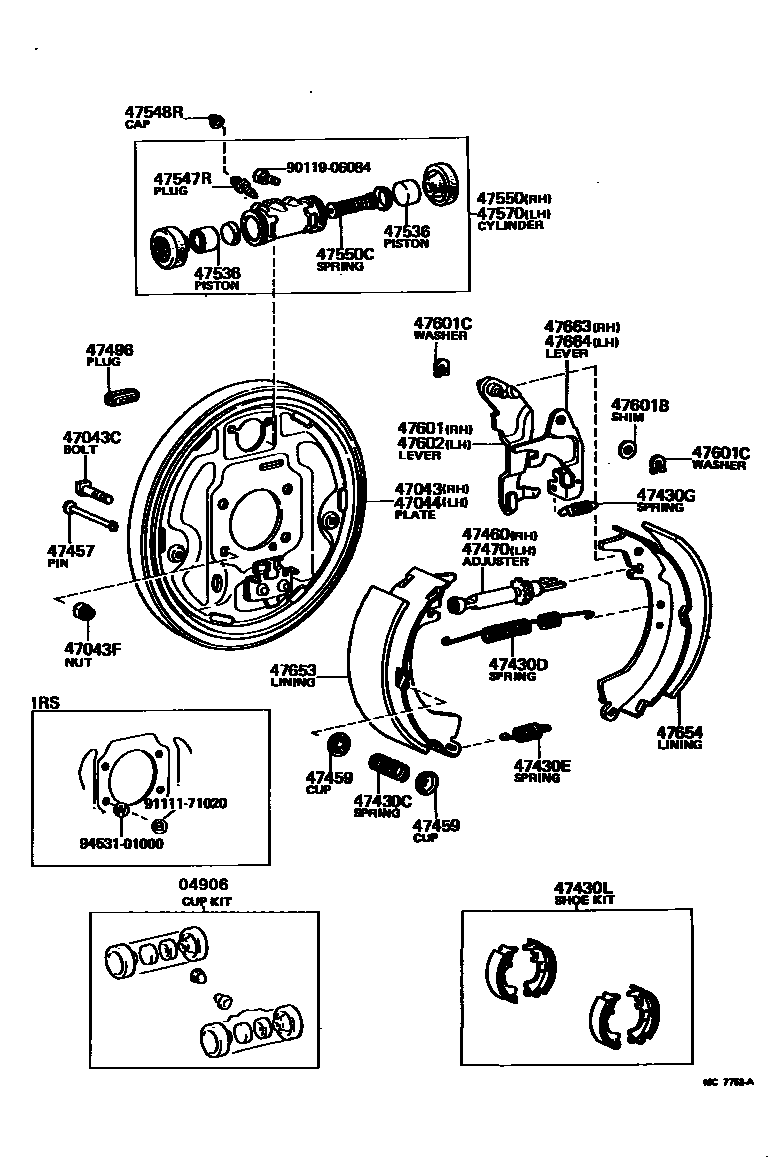

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12030iTA60..EUG198108-198507

ID=19.05

main04906-12040iTA60..GEN198108-198507

ID=20.64

main04906-14020iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

ID=22.22

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-14040iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

main47043-14050iTA60..EUG198110-198507

sub47043-27020

main47043-20050iRA60,TA60198108-198507

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iRA60,TA60198108-198507

*10-1.25PX37-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iRA60,TA60198108-198507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-14040iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

main47044-14050iTA60..EUG198110-198507

sub47044-27020

main47044-20050iRA60,TA60198108-198507

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iRA60,TA60198108-198507

main90506-29008iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

RH

main90506-29009iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47430LSHOE KIT, REAR BRAKE

main04495-14010iTA60..GEN198108-198507

sub04495-14011

main04495-14030iTA60..EUG198108-198507

sub04495-14031

main04495-14040iAA63..GTS198108-198507

sub04495-14041

main04495-20050iRA60198108-198308

sub04495-20051

main04495-22040iRA6#,SA63..ARL,GEN,SAA198308-198507

sub04495-22041

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iRA60,61,TA60198108-198507

main47061-14040iAA63,RA61,TA60..(GTS,ST,XT)..EUR198308-198507

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iAA63,RA61,TA60..(GTS,ST,XT)..EUR198108-198507

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iRA60,TA60198108-198507

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

main47051-22031iTA60..EUG198108-198507

main47051-22040iRA61..EUR198108-198507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19125iTA60..EUG198108-198507

ID=19.05

main47550-19135iRA61..EUR198108-198507

ID=20.64

sub47550-12060

main47550-19145iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

ID=22.22

sub47550-14020

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iTA60..EUG198108-198507

main47509-12020iRA61..EUR198108-198507

main47509-20010iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19125iTA60..EUG198108-198507

ID=19.05

main47550-19135iTA60..GEN198108-198507

ID=20.64

sub47550-12060

main47550-19145iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

ID=22.22

sub47550-14020

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iRA60,TA60198108-198507

main47601-14020iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.3,T=0.3

main90564-08151iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.6,T=0.6

main90564-08152iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.9,T=0.9

main90564-08172iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.2,T=0.2

main90564-08173iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.4,T=0.4

main90564-08174iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=0.5,T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iRA60,TA60198108-198507

main47602-14020iAA63,RA61,65,SA63..GTS,ST,XT198108-198507

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-14020iAA63..GTS198108-198507

main47651-22020iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

main47655-14010iTA60..GEN198108-198507

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-14020iAA63..GTS198108-198507

main47651-22020iRA60,61,65,SA63..ARL,GEN,ME,SAA198108-198507

main47655-14010iTA60..GEN198108-198507

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20020iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-20020iRA60;AA63,RA61,65,SA63,TA60..GTS,LT,ST,XT198108-198507

9011906084

main90119-06084

9111171020

main91111-71020

9453101000

main94531-01000

32 parts on this diagram · 1 diagram in section
