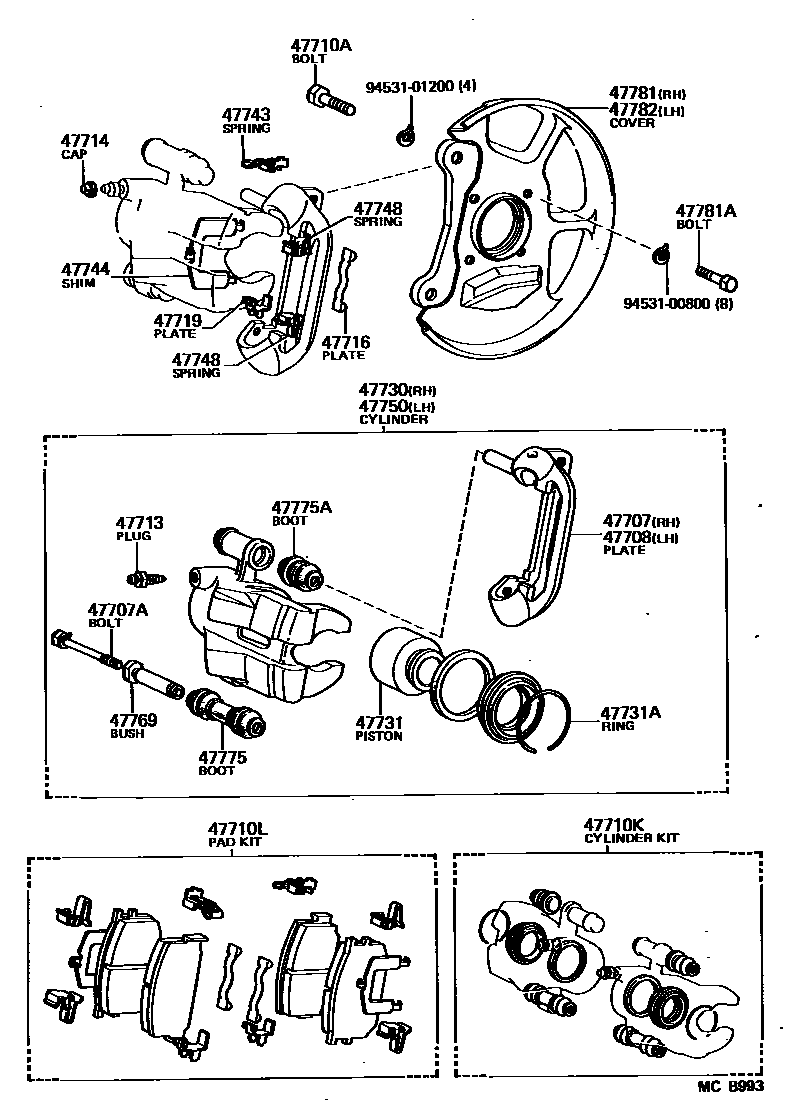

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iTA60198108-198507

main47707-14030iAA63,MA61,RA6#,SA63198108-198512

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iMA61,RA6#,TA60198108-198308

main90119-08431iAA63,MA61,RA6#,SA63,TA60198308-198512

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iTA60198108-198507

main47708-14030iAA63,MA61,RA6#,SA63198108-198512

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064iTA60198108-198507

main90101-12066iAA63,MA61,RA6#,SA63198108-198512

*12-1.25PX32.5-20.5

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14060iTA60198108-198507

main04479-14070iAA63,MA61,RA6#,SA63198108-198512

47710LPAD KIT, DISC BRAKE, FRONT

main04491-14140iAA63,RA6#,SA63;MA61..ARL,GEN,SA,SAA198108-198512

sub04491-14141

main04491-14150iTA60198108-198507

sub04465-12370

main04491-14160iMA61..EUR;MA61..5F..SAA198112-198512

sub04465-14190

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAA63,MA61,RA6#,SA63,TA60198108-198512

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAA63,MA61,RA6#,SA63,TA60198108-198512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080iTA60198108-198507

main47716-14100iAA63,MA61,RA6#,SA63198108-198512

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010iTA60198108-198507

main47736-14030iAA63,MA61,RA6#,SA63198108-198512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iTA60198308-198507

main47730-14050iTA60198108-198308

sub47730-12250

main47730-14140iAA63,MA61,RA6#,SA63198108-198512

47731PISTON, FRONT DISC BRAKE

main47731-14070iTA60198108-198507

main47731-14090iAA63,MA61,RA6#,SA63198108-198512

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004iTA60198108-198507

main90522-69002iAA63,MA61,RA6#,SA63198108-198512

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iAA63,MA61,RA6#,SA63198108-198512

RH

main47718-14090iAA63,MA61,RA6#,SA63198108-198512

LH

main47743-12010iTA60198108-198507

LH

main47748-12050iTA60198108-198507

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050iTA60198108-198507

main47744-14080iAA63,MA61,RA6#,SA63198108-198512

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040iAA63,MA61,RA6#,SA63,TA60198108-198512

LWR

main47748-14050iAA63,MA61,RA6#,SA63,TA60198108-198512

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iTA60198308-198507

main47750-14130iTA60198108-198308

sub47750-12250

main47750-14150iAA63,MA61,RA6#,SA63198108-198512

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010iMA61,RA6#,TA60198108-198308

sub47769-28H00

sub47769-28H01

main47769-28010iAA63,MA61,RA6#,SA63,TA60198308-198512

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

47775ABOOT, PIN

main47776-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iTA60198108-198507

main47703-14090iAA63,MA61,RA6#,SA63198108-198512

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iAA63,MA61,RA6#,SA63198108-198512

main90101-10062iTA60198108-198507

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iTA60198108-198507

main47704-14090iAA63,MA61,RA6#,SA63198108-198512

9453100800

main94531-00800

9453101200

main94531-01200

25 parts on this diagram · 2 diagrams in section
