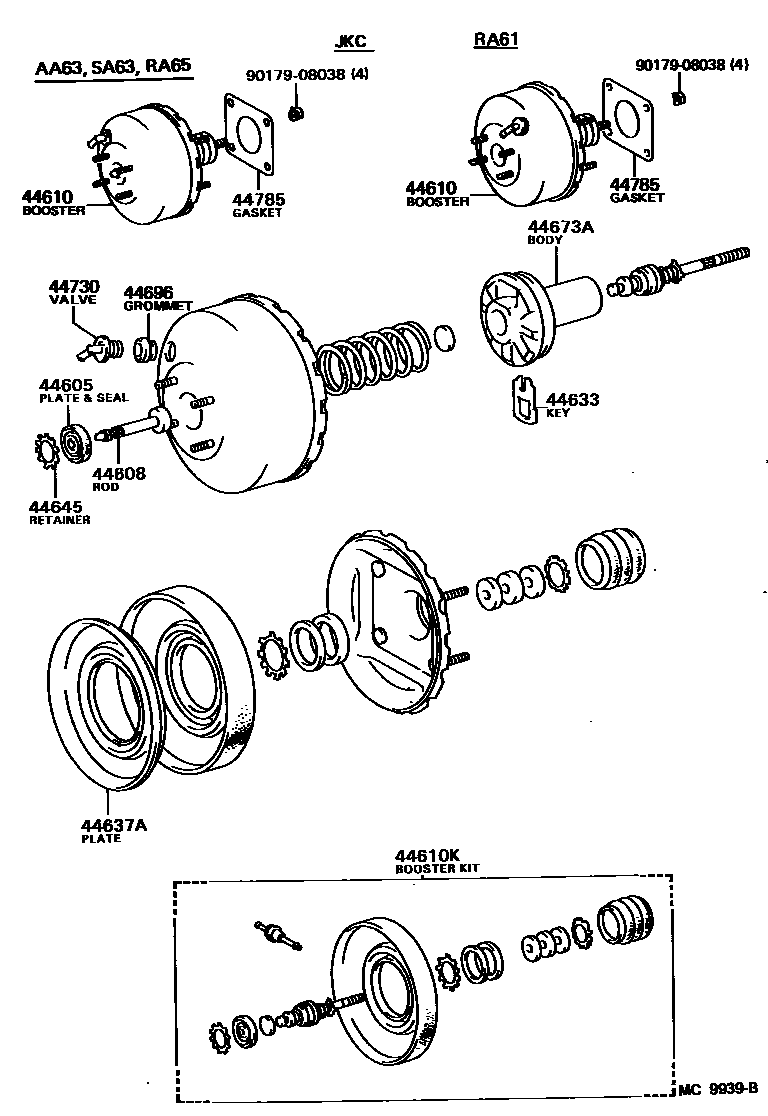

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iAA63,RA60,61,65,SA63..RHD¥710198108-198507

sub44605-10080¥620

main44605-28130iRA63..RHD198108-198308

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30340iMA61¥1,090198112-198512

main44606-32010iAA63,RA61..LHD198308-198507

main44606-35100iTA60¥940198108-198507

main44608-22090iRA60,61..RHD¥2,150198108-198308

main44608-28130iRA63..RHD198108-198308

main44608-32020iAA63,RA6#,SA63..RHD¥2,670198308-198507

44610BOOSTER ASSY, BRAKE

main44610-14560iMA61..LHD¥41,700198112-198512

main44610-14570iMA61..RHD198112-198512

main44610-14580iRA6#..LHD¥46,400198108-198308

main44610-14590iRA60,61..RHD198108-198308

main44610-14610iRA63..RHD198108-198308

main44610-14630iTA60¥42,100198108-198507

main44610-14650iAA63,RA65,SA63..RHD¥40,200198308-198507

main44610-14660iRA61..RHD198308-198507

main44610-14700iAA63,RA61..LHD¥47,300198308-198507

44610KBOOSTER KIT, BRAKE

main04443-14360iRA60,61..RHD198108-198308

main04443-14370iRA63..RHD198108-198308

main04443-14380iMA61..RHD198112-198512

main04443-14390iRA6#..LHD¥14,100198108-198308

main04443-14410iMA61..LHD198112-198512

main04443-14430iAA63,RA61..LHD¥14,000198308-198507

main04443-14450iAA63,RA65,SA63..RHD198308-198507

main04443-14460iRA61..RHD198308-198507

main04443-22190iTA60¥7,600198108-198507

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iRA60,61..RHD¥260198108-198308

main44633-28130iRA63..RHD¥640198108-198507

44637APLATE, BOOSTER DIAPHRAGM

main44637-28130iRA63..RHD198108-198308

main44637-32040iAA63,RA6#,SA63..RHD¥7,600198308-198507

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMA61;RA6#..LHD¥440198108-198512

main44645-22020iAA63,RA6#,SA63..RHD¥220198108-198507

44673ABODY, BOOSTER VALVE

main44673-14610iRA63..RHD198108-198308

main44673-32040iAA63,RA6#,SA63..RHD¥5,900198308-198507

44696GROMMET, CHECK VALVE

main90480-24439iAA63,MA61,RA60,61,63,TA60..LHD¥390198108-198512

AISIN

main90480-24517iAA63,RA60,61,SA63..RHD¥580198108-198507

JKC

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iAA63,RA63,65,SA63..RHD¥1,820198108-198507

main44730-14050iAA63,RA61..LHD¥1,380198410-198507

AISIN

main44730-20010iMA61..RHD¥2,300198112-198512

main44730-20040iAA63,RA61,SA63..RHD¥2,780198308-198507

main44730-20060iMA61,TA60..LHD¥2,920198410-198512

main44730-20060iAA63,MA61,RA60,61,63,TA60..LHD¥2,920198108-198410

AISIN

main44730-22090iRA61..SDZ¥2,300198208-198305

JKC

main44730-30010iRA60,61..RHD¥1,440198108-198308

44785GASKET, BRAKE BOOSTER

main44785-20030iAA63,MA61,RA6#,SA63,TA60¥250198108-198512

9017908038

main90179-08038¥130

12 parts on this diagram · 9 diagrams in section
