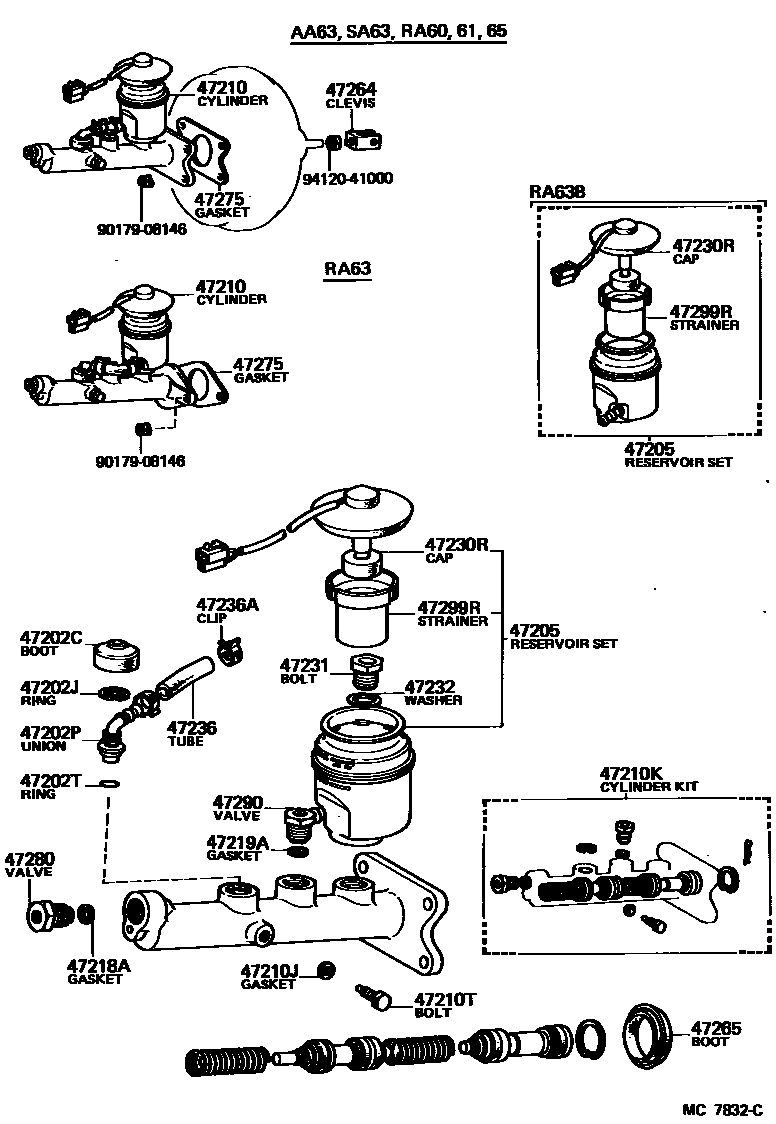

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iRA61..SDZ198208-198512

SWITZERLAND SPEC

main47265-20060iMA61..SDZ198108-198512

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iMA61,RA61..RHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..LHD..5F..TWC;AA63,RA60,63,65,SA63,TA60;RA61..LHD..4FC..(EUR,GEN);MA61..LHD..4FC..TWC..(EUR,GEN)198108-198512

main96151-02000iRA61..SDZ198208-198512

SWITZERLAND SPEC

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10125iMA61..SDZ198308-198512

COLD SPEC

main90405-10125iRA61..SDZ198108-198208

main90405-10125iRA61..LB..XT..SDZ198208-198507

SWEDEN SPEC

main90407-10003iMA61..SDZ198108-198512

sub90407-10004

main90407-10003iRA61..SDZ198208-198507

SWITZERLAND SPEC

sub90407-10004

main90407-10004iRA60..ME198108-198507

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iMA61,RA61..RHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;MA61..LHD..5F..TWC;AA63,RA60,63,65,SA63,TA60;RA61..LHD..4FC..(EUR,GEN);MA61..LHD..4FC..TWC..(EUR,GEN)198108-198512

main90301-14001iRA61..SDZ198208-198512

SWITZERLAND SPEC

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14210iMA61..LHD198112-198512

main47202-14220iRA61..LB..XT..SDZ198208-198507

SWEDEN SPEC

main47202-14220iRA61..SDZ198108-198208

main47202-14220iMA61..SDZ198308-198512

COLD SPEC

main47202-14230iRA63..RHD198108-198308

main47202-14240iRA61..LHD..4FC;AA63,RA60,63..LHD;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198507

main47202-14240iRA61..SDZ198208-198507

SWITZERLAND SPEC

main47202-14250iAA63,RA60,61,65,SA63..RHD198108-198507

main47202-14270iTA60198108-198507

main47202-22120iMA61..RHD198112-198512

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14360iMA61..LHD198112-198512

main47201-14370iRA60..ME198108-198308

sub47201-14490

main47201-14380iRA61..SDZ198108-198208

sub47201-14480

main47201-14380iRA61..LB..XT..SDZ198208-198308

SWEDEN SPEC

sub47201-14480

main47201-14390iRA63..RHD198108-198308

main47201-14400iRA61..SDZ198208-198308

SWITZERLAND SPEC

sub47201-14470

main47201-14400iRA61..LHD..EUG;RA60,63..LHD..(EUR,GEN)198108-198308

sub47201-14470

main47201-14410iTA60198108-198507

main47201-14420iRA60,61..RHD198108-198308

sub47201-14460

main47201-14460iAA63,RA6#,SA63..RHD198308-198507

main47201-14470iAA63..LHD;RA61..5F..XT..GEN;RA61..LHD..5F..EUG;RA61..LHD..4FC..(EUR,GEN)198308-198507

SWITZERLAND SPEC

main47201-14480iRA61..LB..XT..SDZ198308-198507

SWEDEN SPEC

main47201-14490iRA61..SAA198308-198507

main47201-14500iMA61..SDZ198308-198512

COLD SPEC

main47201-24010iMA61..RHD198112-198512

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAA63,MA61,RA6#,SA63,TA60198108-198512

47210KCYLINDER KIT, BRAKE MASTER

main04493-14090iRA60..ME198108-198308

main04493-20100iTA60198108-198507

main04493-24010iAA63,RA6#,SA63..ARL,EUR,GEN198108-198507

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iAA63,MA61,RA6#,SA63,TA60198108-198512

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAA63,MA61,RA6#,SA63,TA60198108-198512

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAA63,MA61,RA6#,SA63,TA60198108-198512

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iTA60;AA63,RA6#,SA63..RHD198108-198507

main84460-14032iMA61..LHD..TWC;RA61..LHD..4FC;AA63,RA60,63..LHD;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA)198108-198512

main84460-14032iRA61..SDZ198208-198507

SWITZERLAND SPEC

main84460-14050iMA61..SDZ198308-198512

COLD SPEC

main84460-14050iRA61..SDZ198108-198208

main84460-14050iRA61..LB..XT..SDZ198208-198507

SWEDEN SPEC

main84460-20051iMA61..RHD198112-198512

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRA61..SDZ198108-198208

main47231-20010iRA61..LB..XT..SDZ198208-198507

SWEDEN SPEC

main47231-20010iMA61..SDZ198308-198512

COLD SPEC

main47231-30010iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60198108-198512

main47231-30010iRA61..SDZ198208-198507

SWITZERLAND SPEC

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iMA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60198108-198512

47236TUBE, RESERVOIR BRAKE

main47234-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iAA63,MA61,RA6#,SA63,TA60198108-198512

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iAA63,MA61,RA6#,SA63,TA60198108-198512

47265BOOT, MASTER CYLINDER

main47265-20050iAA63,MA61,RA6#,SA63,TA60198108-198512

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iTA60;RA63..RHD198108-198507

sub47275-26010

main47275-24010iRA63..LHD;AA63,MA61,RA60,61,65,SA63198108-198512

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47218-12040iAA63,MA61,RA6#,SA63,TA60198308-198512

main47280-14010iRA60..ME198108-198308

main47280-30030iMA61,RA6#,TA60..ARL,EUR,GEN198108-198308

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47218-12040iAA63,MA61,RA6#,SA63,TA60198308-198512

main47280-14010iRA60..ME198108-198308

main47280-30030iMA61,RA6#,TA60..ARL,EUR,GEN198108-198308

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iAA63,MA61,RA6#,SA63,TA60198108-198512

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 3 diagrams in section
