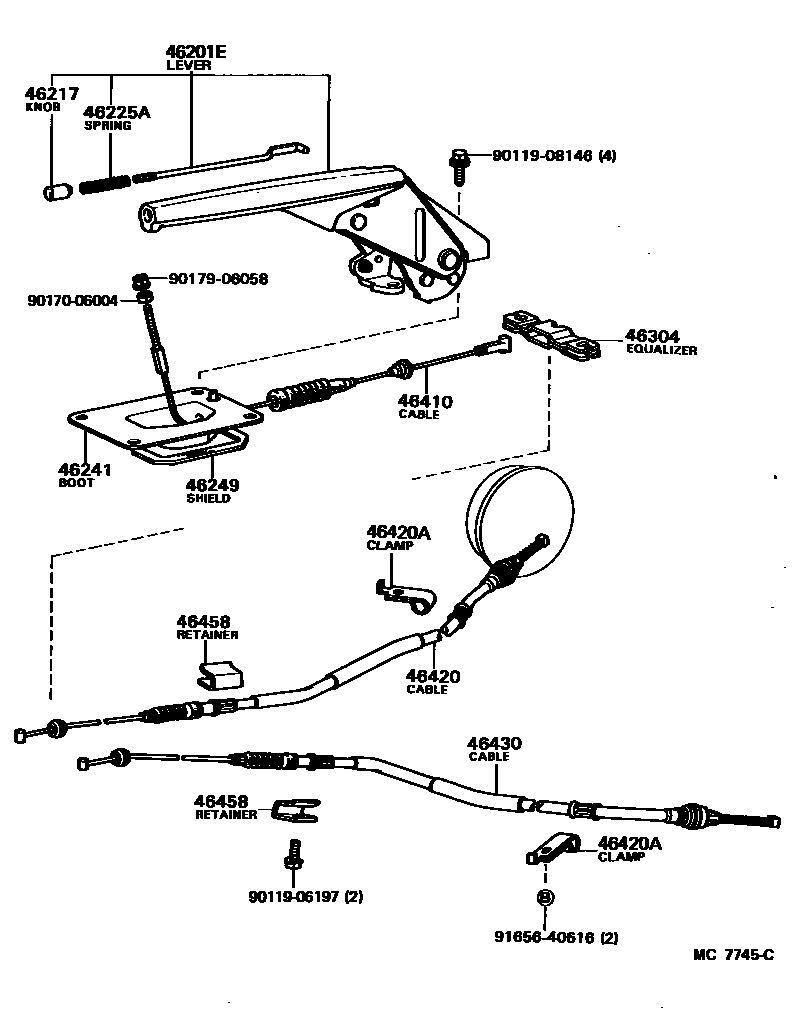

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14110-01iRA60,61,TA60..LT,ST198108-198305

BLACK,BLACK,TRIM2#

sub46201-14130

main46201-14110-04iRA60,61,TA60..LT,ST198108-198305

BLUE,BLUE,TRIM8#

sub46201-14130

main46201-14110-06iRA60,61,TA60..LT,ST198108-198305

DARK BROWN,BROWN,TRIM4#

sub46201-14130

main46201-14130-01iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198305-198507

BLACK,BLACK,TRIM2#

sub46201-14200

sub46201-14130

main46201-14130-04iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198305-198507

BLUE,BLUE,TRIM8#

sub46201-14200

sub46201-14130

main46201-14130-06iAA63,RA60,61,65,SA63,TA60..GTS,LT,ST198305-198507

DARK BROWN,BROWN,TRIM4#

sub46201-14200

sub46201-14130

main46201-24010-01iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

BLACK,BLACK,TRIM2#

sub46201-14250

main46201-24010-02iMA61..SAA198208-198308

TERRACOTTA,RED/MAROON,TRIM3#

sub46201-14250

main46201-24010-04iAA63,MA61,RA6#,SA63..GT,SPR,XT198108-198512

BLUE,BLUE,TRIM8#

sub46201-14250

main46201-24010-06iAA63,RA6#,SA63..GT,XT198108-198512

DARK BROWN,BROWN,TRIM4#

sub46201-14250

main46201-24010-12iMA61..ARL,GEN,SA,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub46201-14250

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iAA63,MA61,RA6#,SA63,TA60198108-198512

BLACK,BLACK,TRIM2#

sub46217-10020

sub46217-20020

main46217-10020-02iMA61..SAA198208-198308

TERRACOTTA,RED/MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-14iAA63,MA61,RA6#,SA63,TA60198108-198512

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-22iMA61..ARL,GEN,SA,SAA198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub46217-10020

sub46217-20020

main46217-10020-26iRA6#,TA60;AA63,MA61..EUR198108-198512

DARK BROWN,BROWN,TRIM4#

sub46217-10020

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iAA63,MA61,RA6#,SA63,TA60198108-198512

46241BOOT, PARKING BRAKE LEVER

main46241-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iAA63,MA61,RA6#,SA63,TA60198108-198512

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-24010iAA63,MA61,RA6#,SA63,TA60198108-198512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14170iRA60,TA60198108-198507

sub46420-14180

main46420-14200iAA63,MA61,RA63..GT,SPR198108-198512

main46420-14210iRA61..EUR198108-198507

main46420-14220iRA6#,SA63..ARL,GEN,SAA198308-198507

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-12121iRA60,TA60198108-198507

main90461-14013iAA63,MA61,RA61,63,65,SA63198108-198512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14210iRA60,TA60198108-198507

sub46430-14220

main46430-14240iAA63,MA61,RA63..GT,SPR198108-198512

main46430-14250iAA63..GTS198108-198507

main46430-14260iRA6#,SA63..ARL,GEN,SAA198308-198507

46458RETAINER, CABLE

main46458-20020iAA63,MA61,RA6#,SA63,TA60198108-198512

sub46458-50010

9011906197

main90119-06197

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9165640616

main91656-40616

16 parts on this diagram · 2 diagrams in section
