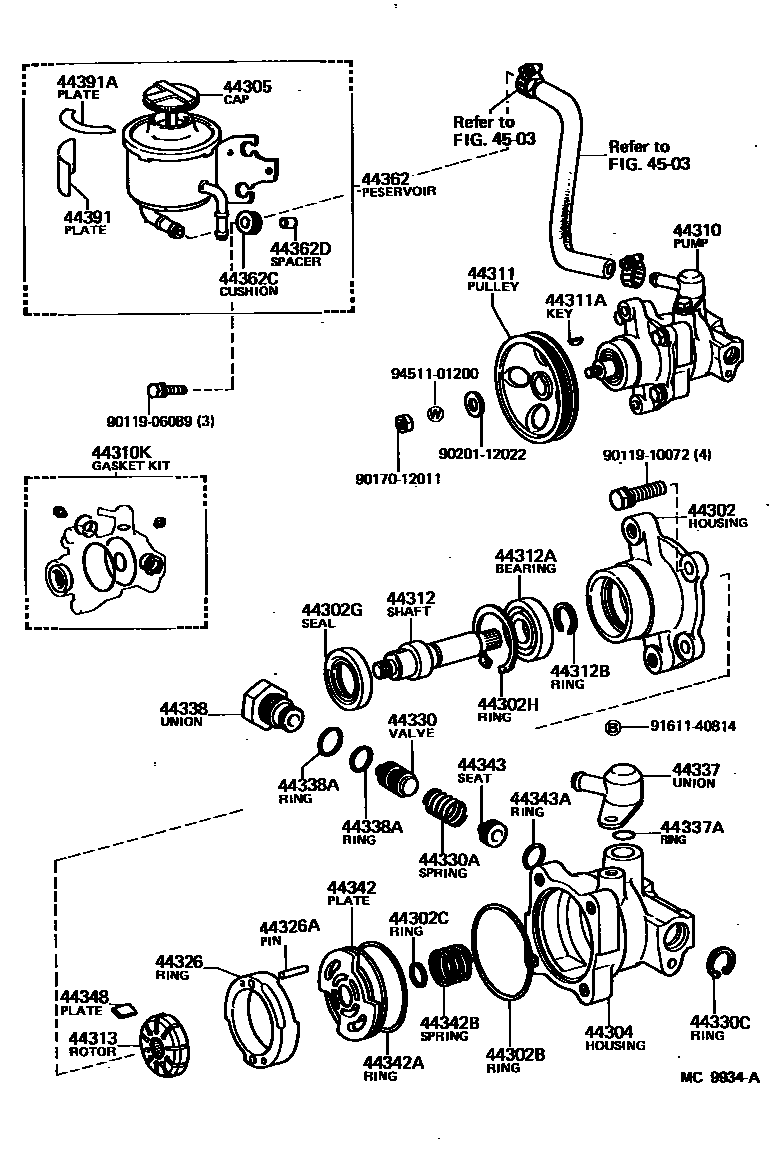

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRA60,61,65198108-198507

main44302-14010iSA63198308-198507

main44302-22020iMA61..TWC198112-198512

main44302-30020iMA61..EFI198308-198512

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iMA61..TWC;RA60,61,65,SA63198108-198512

main90301-69170iMA61..EFI198308-198512

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96710-01016iRA60,61198108-198112

sub96711-19016

main96711-19016iMA61..TWC;RA60,61,65,SA63198112-198512

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-24001iMA61..TWC;RA60,61,65,SA63198108-198512

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iMA61..TWC;RA60,61,65,SA63198108-198512

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-14040iSA63198308-198408

sub44304-14041

sub44343-12040

sub90501-12103

main44304-20030iRA60,61198108-198408

main44304-22010iMA61..TWC198112-198311

sub44304-22011

sub90105-10092

main44304-22011iMA61..TWC198311-198512

sub44304-22012

sub44343-12040

sub90501-12103

main44304-30040iMA61..EFI198308-198512

main44304-35020iRA61198408-198507

sub44304-35021

sub44343-12040

sub90501-12103

main44304-35030iRA65198408-198507

sub44304-35031

sub44343-12040

sub90501-12103

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iMA61,RA60,61,65,SA63198108-198512

sub44305-22040

44310PUMP ASSY, VANE

main44320-14100iSA63198308-198408

main44320-14110iRA60,61198108-198408

main44320-14111iRA61198408-198507

main44320-14120iMA61..TWC198112-198311

sub44320-14121

sub90105-10092

main44320-14121iMA61..TWC198311-198409

sub44320-22270

main44320-14161iRA65198408-198507

main44320-14200iMA61..EFI198308-198502

main44320-14201iMA61..EFI198502-198512

main44320-22270iMA61..TWC198409-198512

44310KGASKET KIT, POWER STEERING PUMP

main04446-14010iMA61..TWC;RA60,61,65,SA63198108-198512

sub04446-14040

main04446-22010iMA61..EFI198308-198512

44311PULLEY, VANE PUMP

main44311-14010iSA63198308-198408

main44311-20010iRA60,61,65198108-198507

main44311-22030iMA61..TWC198112-198512

main44311-30030iMA61..EFI198308-198512

sub44311-30070

44311AKEY, VANE PUMP PULLEY

main90280-05008iMA61,RA60,61,65,SA63198108-198512

44312SHAFT, VANE PUMP

main44312-12010iMA61..TWC;RA60,61,65,SA63198108-198512

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iMA61..TWC;RA60,61,65,SA63198108-198512

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iMA61..TWC;RA60,61,65,SA63198108-198512

sub90520-15005

44313ROTOR, VANE PUMP

main44313-12010iMA61..TWC;RA60,61,65,SA63198108-198512

NO MARK

sub44313-22040

main44313-12020iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 1,MARK 1

sub44313-22050

main44313-12030iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 2,MARK 2

sub44313-22060

main44313-12040iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 3,MARK 3

sub44313-22070

main44313-12050iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 4,MARK 4

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iMA61..TWC;RA60,61,65,SA63198108-198512

NO MARK

main44325-12020iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 1,MARK 1

main44325-12030iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 2,MARK 2

main44325-12040iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 3,MARK 3

main44325-12050iMA61..TWC;RA60,61,65,SA63198108-198512

MARK 4,MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-05008iMA61..TWC;RA60,61,65,SA63198108-198512

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12010iRA60,61198108-198201

MARK A,MARK A

sub44330-12130

main44330-12020iRA60,61198108-198201

MARK B,MARK B

sub44330-12140

main44330-12030iRA60,61198108-198201

MARK C,MARK C

sub44330-12150

main44330-12040iRA60,61198108-198201

MARK D,MARK D

sub44330-12160

main44330-12050iRA60,61198108-198201

MARK E,MARK E

sub44330-12170

main44330-12060iRA60,61198108-198201

MARK F,MARK F

sub44330-12180

main44330-12130iMA61..TWC198207-198409

MARK A,MARK A

sub44330-12131

main44330-12140iMA61..TWC198207-198409

MARK B,MARK B

sub44330-12141

main44330-12150iMA61..TWC198207-198409

MARK C,MARK C

sub44330-12151

main44330-12160iMA61..TWC198207-198409

MARK D,MARK D

sub44330-12161

main44330-12170iMA61..TWC198207-198409

MARK E,MARK E

sub44330-12171

main44330-12180iMA61..TWC198207-198409

MARK F,MARK F

sub44330-12181

main44330-14010iRA60,61,65,SA63198207-198512

MARK A,MARK A

sub44330-20010

main44330-14020iRA60,61,65,SA63198207-198512

MARK B,MARK B

sub44330-20020

main44330-14030iRA60,61,65,SA63198207-198512

MARK C,MARK C

sub44330-20030

main44330-14040iRA60,61,65,SA63198207-198512

MARK D,MARK D

sub44330-20040

main44330-14050iRA60,61,65,SA63198207-198512

MARK E,MARK E

sub44330-20050

main44330-14060iRA60,61,65,SA63198207-198512

MARK F,MARK F

sub44330-20060

main44330-24010iMA61198112-198207

MARK A,MARK A

sub44330-12130

main44330-24020iMA61198112-198207

MARK B,MARK B

sub44330-12140

main44330-24030iMA61198112-198207

MARK C,MARK C

sub44330-12150

main44330-24040iMA61198112-198207

MARK D,MARK D

sub44330-12160

main44330-24050iMA61198112-198207

MARK E,MARK E

sub44330-12170

main44330-24060iMA61198112-198207

MARK F,MARK F

sub44330-12180

main44330-30041iMA61..EFI198308-198512

MARK A

main44330-30051iMA61..EFI198308-198512

MARK B

main44330-30061iMA61..EFI198308-198512

MARK C

main44330-30071iMA61..EFI198308-198512

MARK D

main44330-30081iMA61..EFI198308-198512

MARK E

main44330-30091iMA61..EFI198308-198512

MARK F

main44330-35070iRA60,61198201-198207

MARK A,MARK A

sub44330-32070

main44330-35080iRA60,61198201-198207

MARK B,MARK B

sub44330-32080

main44330-35090iRA60,61198201-198207

MARK C,MARK C

sub44330-32090

main44330-35100iRA60,61198201-198207

MARK D,MARK D

sub44330-32100

main44330-35110iRA60,61198201-198207

MARK E,MARK E

sub44330-32110

main44330-35120iRA60,61198201-198207

MARK F,MARK F

sub44330-32120

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iMA61,RA60,61,65,SA63198108-198512

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iMA61,RA60,61,65,SA63198108-198512

44337UNION, POWER STEERING SUCTION PORT

main44337-14010iMA61..EFI198308-198512

main90404-16016iRA60,61,65198108-198507

main90404-16017iSA63198308-198408

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-25135iMA61..EFI198308-198512

main96710-01013iRA60,61198108-198112

sub96711-19013

main96711-19013iRA60,61,65,SA63198112-198507

44338UNION, PRESSURE PORT

main44308-14020iRA60,61198108-198112

main44308-14040iMA61..TWC;RA60,61,SA63198112-198405

sub44308-14041

main44308-14041iRA6#,SA63;MA61..TWC198405-198512

main44308-22030iMA61..EFI198308-198512

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-22001iMA61..TWC;RA60,61,65,SA63198108-198512

OD=25.5,ID=22.5,ID=22.5,OD=25.5

main96710-01014iRA60,61198108-198112

ID=14,OD=17,ID=14,OD=17

sub96711-19014

main96711-19014iMA61..TWC;RA60,61,65,SA63198112-198512

OD=17.0,ID=13.0,ID=13.8,OD=17.6

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iMA61..TWC;RA60,61,65,SA63198108-198512

main44341-30020iMA61..EFI198308-198512

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-53002iMA61..TWC;RA60,61,65,SA63198108-198512

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iMA61..TWC;RA60,61,65,SA63198108-198512

44343SEAT, FLOW CONTROL SPRING

main44343-12010iMA61,RA60,61,65,SA63198108-198512

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iRA60,61198108-198112

sub96711-19014

main96711-19014iMA61,RA60,61,65,SA63198112-198512

44348PLATE, VANE PUMP

main44345-12010iMA61..TWC;RA60,61,65,SA63198108-198512

L=14.997,L=14.996-14.998,ROTOR NO MARK

main44345-12020iMA61..TWC;RA60,61,65,SA63198108-198512

L=14.995,L=14.994-14.996,ROTOR MARK 1

main44345-12030iMA61..TWC;RA60,61,65,SA63198108-198512

L=14.993,L=14.992-14.994,ROTOR MARK 2

main44345-12040iMA61..TWC;RA60,61,65,SA63198108-198512

L=14.991,L=14.990-14.992,ROTOR MARK 3

main44345-12050iMA61..TWC;RA60,61,65,SA63198108-198512

L=14.989,L=14.988-14.990,ROTOR MARK 4

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-22100iMA61..TWC198112-198512

sub44306-22200

main44360-14020iRA60,61,65198108-198507

main44360-14030iSA63198308-198408

main44360-14060iMA61..ARL198308-198512

main44360-14070iMA61..SDZ198308-198512

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004iRA60,61;MA61,RA65,SA63..ARL198108-198512

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014iRA60,61;MA61,RA65,SA63..ARL198112-198512

main90560-06238iRA60,61198108-198112

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iMA61,RA60,61,65,SA63198112-198512

44391APLATE, OIL RESERVOIR CAUTION

main44391-20010iRA60,61,65,SA63198108-198507

sub44392-35010

4503

9011906089

main90119-06089

9011910072

main90119-10072

9017012011

main90170-12011

9020112022

main90201-12022

9161140814

main91611-40814

9451101200

main94511-01200

42 parts on this diagram · 4 diagrams in section
