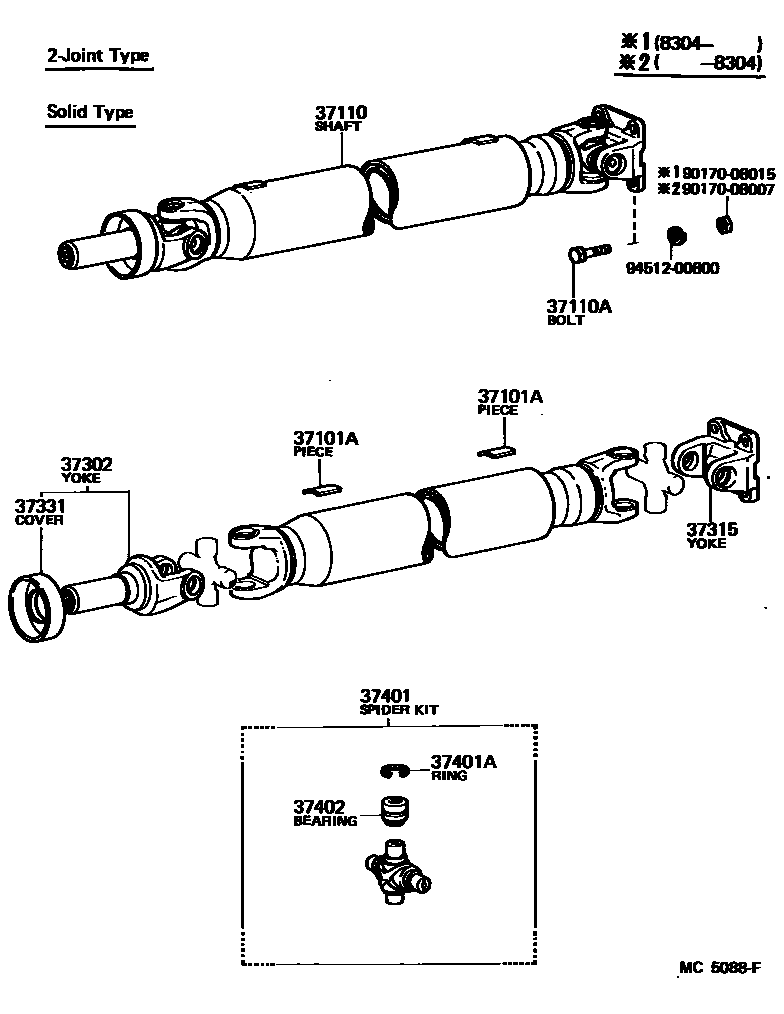

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0004 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAA63,MA61,RA6#,SA63,TA60198108-198512

10G,L=20.7,10G

main90937-01136iAA63,MA61,RA6#,SA63,TA60198108-198512

20G,L=41.4,20G

main90937-01140iAA63,MA61,RA6#,SA63,TA60198108-198512

30G,L=62.2,30G

main90937-01147iAA63,MA61,RA6#,SA63,TA60198108-198512

2G,T=2.0,2G

main90937-01148iAA63,MA61,RA6#,SA63,TA60198108-198512

4G,T=2.0,4G

main90937-01149iAA63,MA61,RA6#,SA63,TA60198108-198512

6G,L=12.4,6G

main90937-01150iAA63,MA61,RA6#,SA63,TA60198108-198512

8G,L=16.6,8G

main90937-01151iAA63,MA61,RA6#,SA63,TA60198108-198512

12G,L=24.9,12G

main90937-01152iAA63,MA61,RA6#,SA63,TA60198108-198512

14G,L=29.0,14G

main90937-01153iAA63,MA61,RA6#,SA63,TA60198108-198512

16G,L=33.2,16G

main90937-01154iAA63,MA61,RA6#,SA63,TA60198108-198512

18G,L=37.3,18G

main90937-01155iAA63,MA61,RA6#,SA63,TA60198108-198512

22G,L=45.6,22G

main90937-01156iAA63,MA61,RA6#,SA63,TA60198108-198512

24G,L=49.7,24G

main90937-01157iAA63,MA61,RA6#,SA63,TA60198108-198512

26G,L=53.9,26G

main90937-01158iAA63,MA61,RA6#,SA63,TA60198108-198512

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-12410iMA61,RA61,63..EUG198108-198512

main37110-14140iTA60..TCB198108-198507

main37110-14150iRA61..SDZ198108-198507

main37110-15030iTA60..5F..SCB198108-198308

sub37110-15010

main37110-15040iTA60..3FC198108-198308

sub37110-15020

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iMA61,RA6#,TA60198108-198304

13G

main90101-08082iAA63,MA61,RA6#,TA60198304-198512

*8-1.25PX25-12,13G

main90101-08085iMA61,RA6#,TA60..ARL,EUR198108-198306

15G,YELLOW

main90101-08086iMA61,RA6#,TA60..ARL,EUR198108-198306

17G,YELLOW

main90101-08087iMA61,RA6#,TA60..ARL,EUR198108-198306

19G,YELLOW

main90101-08088iAA63,MA61,RA61,63,TA60..EUR198306-198512

15G,BLACK

main90101-08090iAA63,MA61,RA61,63,TA60..EUR198306-198512

17G,BLACK

main90101-08091iAA63,MA61,RA61,63,TA60..EUR198306-198512

19G,BLACK

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-14030iTA60..5F..SCB198108-198308

main37302-20040iTA60..3FC198108-198308

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iTA60..SCB198108-198308

37331COVER, SLIDING SHAFT DUST

main37331-12010iAA63,TA60..5F198108-198507

main37331-30010iTA60..3FC;MA61,RA6#,SA63198108-198512

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010iTA60..SCB198108-198308

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070iTA60..SCB198108-198308

T=2.375-2.425,T=2.40

main90521-29071iTA60..SCB198108-198308

T=2.425-2.475,T=2.45

main90521-29072iTA60..SCB198108-198308

T=2.475-2.525,T=2.50

main90521-29073iTA60..SCB198108-198308

T=2.525-2.575,T=2.55

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020iTA60..SCB198108-198308

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800

12 parts on this diagram · 3 diagrams in section
