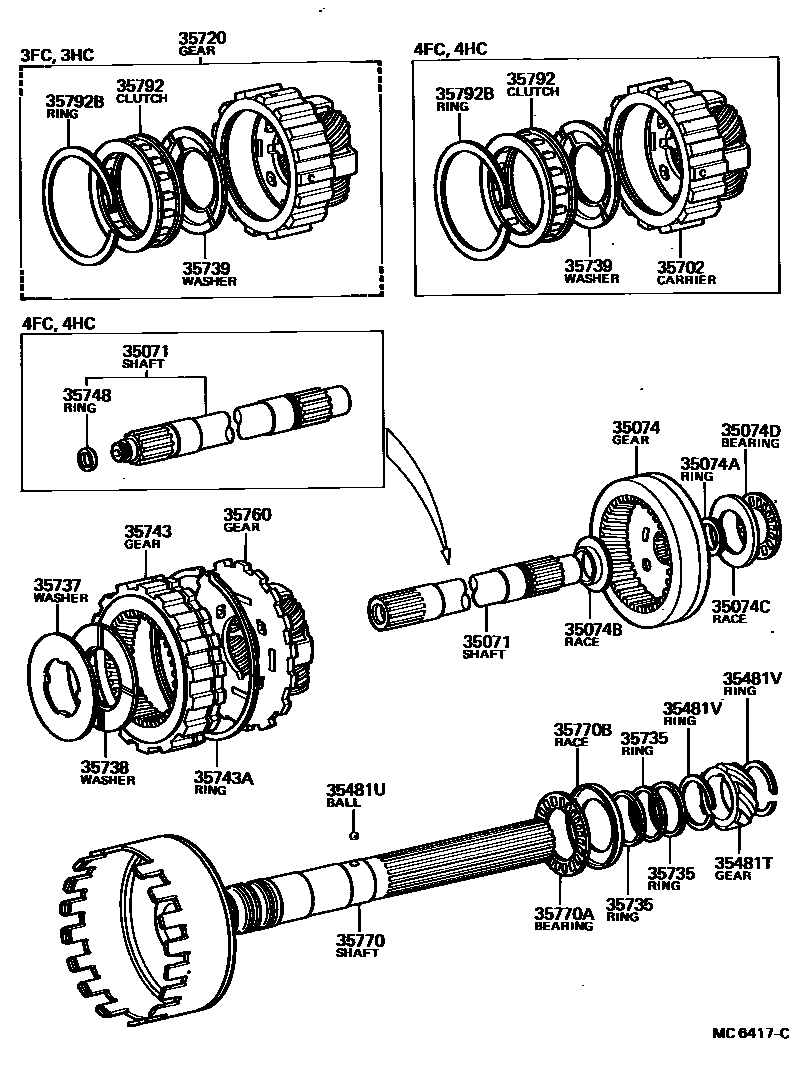

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-22011iTA60..3FC198108-198507

main35708-30021iRA60,61,65,SA63..4FC198108-198507

main35708-30031iMA61..4FC..EUG198308-198512

main35708-30041iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-22010iTA60..3FC198108-198507

sub35074-30010

main35074-30010iRA60,61,65,SA63..4FC198108-198507

main35074-30020iMA61..4FC198308-198311

sub35074-30030

main35074-30030iMA61..4FC198311-198512

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-25030iTA60..3FC198108-198308

N=6

main33481-26010iMA61,RA60,61,65,SA63..4FC198108-198512

N=6,MARK 6X18-20,N=6

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

T=1.50,OD=33.8

35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR

main35704-30020iRA60,61,65,SA63..4FC198108-198507

sub35704-22030

main35704-30030iMA61..4FC198308-198512

35720GEAR ASSY, FRONT PLANETARY

main35720-22012iTA60..3FC198108-198308

35735RING, PLANETARY OUTPUT SNAP

main35735-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iRA60,61,65,SA63,TA60..ATM198108-198507

main35737-30020iMA61..4FC198308-198512

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iRA60,61,65,SA63,TA60..ATM198108-198507

main35738-30010iMA61..4FC198308-198512

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-22011iMA61..4FC..EUG198108-198512

main35739-30010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

35743GEAR, FRONT PLANETARY RING

main35743-22010iRA60,61,65,SA63,TA60..ATM198108-198507

main35743-30010iMA61..4FC198308-198512

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iMA61,RA60,61,65,SA63..4FC198108-198512

35760GEAR ASSY, REAR PLANETARY

main35760-22020iTA60..3FC198108-198208

sub35760-30010

main35760-30010iRA60,61..4FC198108-198507

sub35760-30020

main35760-30020iRA65..4FC198408-198507

main35760-30030iMA61..4FC198308-198512

35770SHAFT ASSY, OUTPUT

main35770-14010iRA61..LHD..4FC198108-198507

sub35770-14020

main35770-14020iRA65..4FC198408-198507

main35770-22012iRA60,TA60..ATM198108-198201

sub35770-14010

main35770-30010iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

main35770-30030iMA61..4FC..EUG198308-198512

sub35770-53010

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35792CLUTCH, 1 WAY, NO.2

main35792-20010iRA6#,SA63..4FC198405-198507

sub35792-30011

sub35739-14010

main35792-22020iRA60,61,SA63,TA60..ATM198108-198405

sub35792-20010

main35792-30011iMA61..4FC198308-198512

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

24 parts on this diagram · 1 diagram in section
