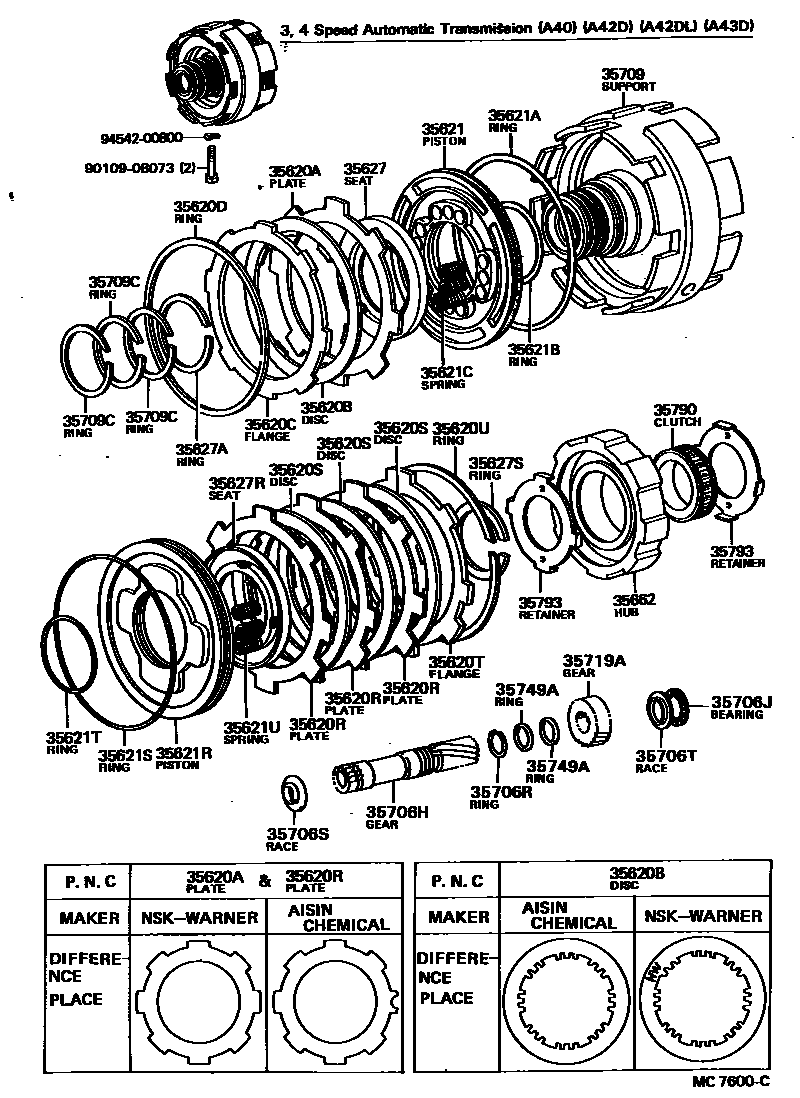

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060iRA60,61,65,SA63..4FC198108-198507

T=1.8

main35634-22060iTA60..3FC198108-198307

NSK-WARNER

main35634-22090iMA61..4FC198108-198512

AISIN CHEMICAL

sub35634-22060

main35648-30010iRA60,61,65,SA63..4FC198108-198507

T=2.0

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22020iRA60,61..4FC198108-198307

sub35677-30030

main35677-22020iTA60..3FC198108-198308

NSK-WARNER

sub35677-30030

main35677-22030iTA60..3FC198108-198307

AISIN CHEMICAL

sub35677-22020

main35677-22050iMA61,TA60..ATM198307-198512

sub35677-30030

main35677-30030iRA60,61,65,SA63..4FC198307-198507

sub35677-30160

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

sub35675-22140

35620DRING (FOR BRAKE)

main90521-99139iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060iTA60..3FC198108-198308

NSK-WARNER

main35634-22090iTA60..3FC198108-198307

AISIN CHEMICAL

sub35634-22060

main35648-30020iMA61..4FC198308-198512

35620SDISC, CLUTCH (FOR REAR BRAKE)

main35677-22040iTA60..3FC198108-198307

sub35677-30020

main35677-30020iMA61..4FC..(GEN,SAA);MA61,TA60..ATM..(EFI,SCB)198307-198512

main35677-30050iMA61..4FC..EUG198308-198512

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main35625-22010iMA61,TA60..ATM198108-198512

35620URING (FOR REAR BRAKE)

main90521-99139iMA61,TA60..ATM198108-198512

35621PISTON, BRAKE, NO.1

main35621-30010iRA60,61,65,SA63..4FC198108-198507

main35624-22010iMA61,TA60..ATM198108-198512

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99007iRA60,61,65,SA63..4FC198108-198507

sub90301-99107

main90301-99192iMA61,TA60..ATM198108-198512

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35621RPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iMA61,TA60..ATM198108-198512

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iMA61,TA60..ATM198108-198512

sub90301-99107

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iMA61,TA60..ATM198108-198512

35621USPRING (FOR REAR BRAKE PISTON RETURN)

main90501-10671iMA61,TA60..ATM198108-198512

35627SEAT, BRAKE RETURN SPRING

main35627-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)

main35627-22010iMA61,TA60..ATM198108-198512

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iMA61,TA60..ATM198108-198512

35662HUB, BRAKE

main35662-22011iTA60..3FC198108-198308

sub35662-30010

main35662-30010iMA61..4FC198308-198512

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22011iTA60..3FC198108-198308

main35706-30030iRA60,61,65,SA63..4FC198108-198507

main35706-30040iMA61..4FC198308-198512

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-23012iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iMA61,RA60,61,65,SA63..4FC198108-198512

main90520-34260iTA60..3FC198108-198308

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35709SUPPORT SUB-ASSY, CENTER

main35709-12011iTA60..3FC198108-198308

main35709-22041iRA65..4FC198408-198507

main35709-30021iRA60,61,SA63..4FC198108-198507

main35709-30041iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)198308-198512

main35709-30051iMA61..4FC..EUG198308-198512

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35719AGEAR, REAR PLANETARY SUN

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010iRA60,61,65,SA63,TA60..ATM198108-198507

main35749-30010iMA61..4FC198308-198512

35790CLUTCH ASSY, 1 WAY

main35791-22010iTA60..3FC198108-198308

sub35791-30020

main35791-30020iMA61..4FC198308-198512

35793RETAINER, 1 WAY CLUTCH

main35793-22011iMA61,TA60..ATM198108-198512

9010908073

main90109-08073

9454200800

main94542-00800

34 parts on this diagram · 2 diagrams in section
