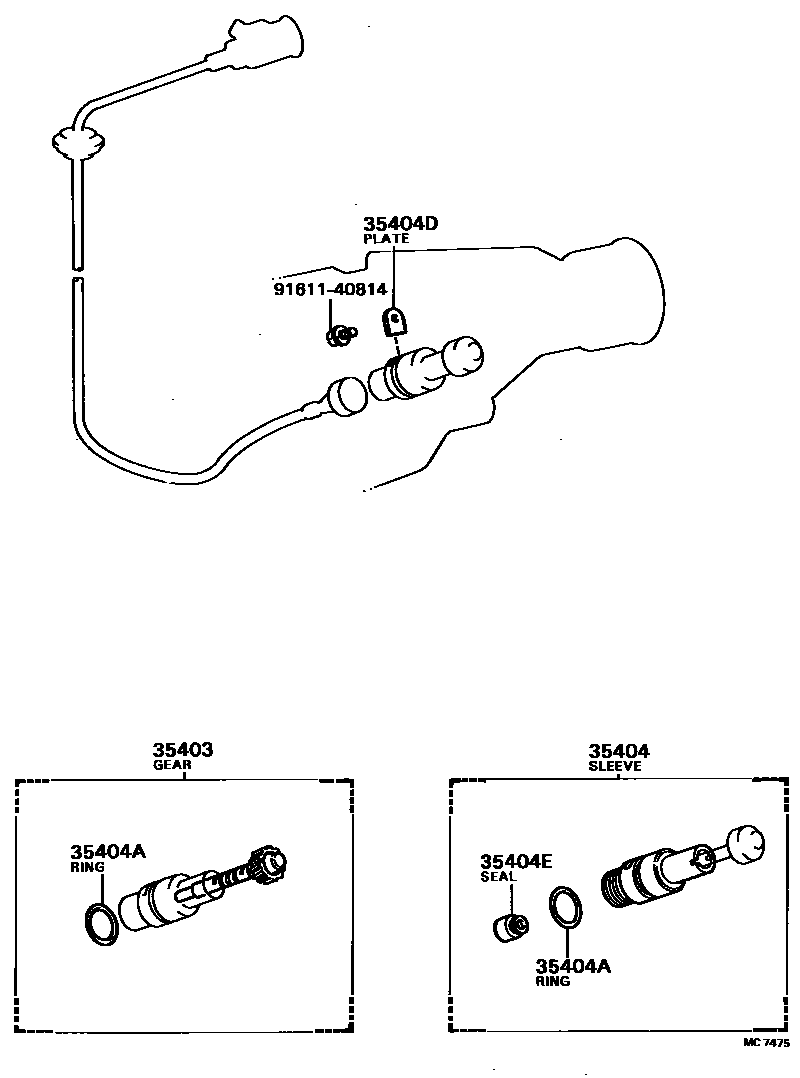

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iRA61..RHD..4FC;RA61..LHD..4FC..EUG198308-198507

N=20

main33403-69026iRA60,61..4FC..(ARL,EUR,GEN)198108-198507

N=19

main33403-69065iRA60..4FC..ME198108-198308

N=18

main33482-39015iTA60..3FC198108-198308

N=21

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iMA61,RA60,61,65,SA63,TA60..ATM198108-198512

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
