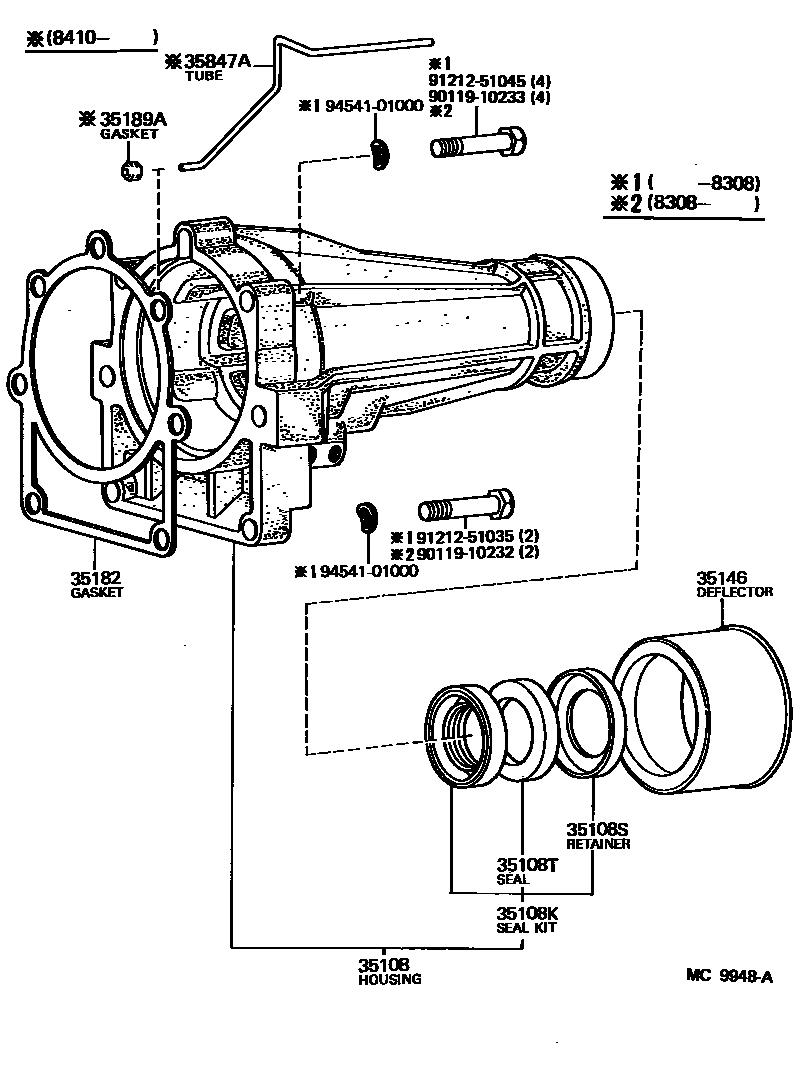

EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22032iRA60,61,TA60..ATM¥28,200198108-198112

sub35108-22033¥28,100

main35108-22033iRA60,61,65,SA63,TA60..ATM¥28,100198112-198410

sub35108-22034¥28,300

main35108-22034iMA61..4FC..EFI;MA61..4FC..(GEN,SAA)¥28,300198410-198512

sub35108-20060¥28,000

main35108-24010iMA61..4FC..EUG¥26,000198308-198410

sub35108-24011¥26,200

main35108-24011iMA61..4FC..EUG¥26,200198410-198512

sub35108-24012¥28,200

35108KSEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iMA61,RA60,61,65,SA63,TA60..ATM¥740198108-198512

sub04332-30030¥730

35108SRETAINER, EXTENSION HOUSING DUST SEAL (ATM)

main33145-30010iMA61,RA60,61,65,SA63,TA60..ATM¥190198108-198512

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iMA61,RA60,61,65,SA63,TA60..ATM¥140198108-198512

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMA61,RA60,61,65,SA63,TA60..ATM¥1,680198108-198512

sub33146-30020¥990

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMA61,RA60,61,65,SA63,TA60..ATM¥780198108-198512

sub35182-28010¥520

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iMA61,RA6#..4FC¥500198410-198512

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iMA61,RA6#..4FC¥460198410-198512

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

9121251035

main91212-51035¥170

9121251045

main91212-51045¥130

9454101000

main94541-01000¥170

13 parts on this diagram · 1 diagram in section
