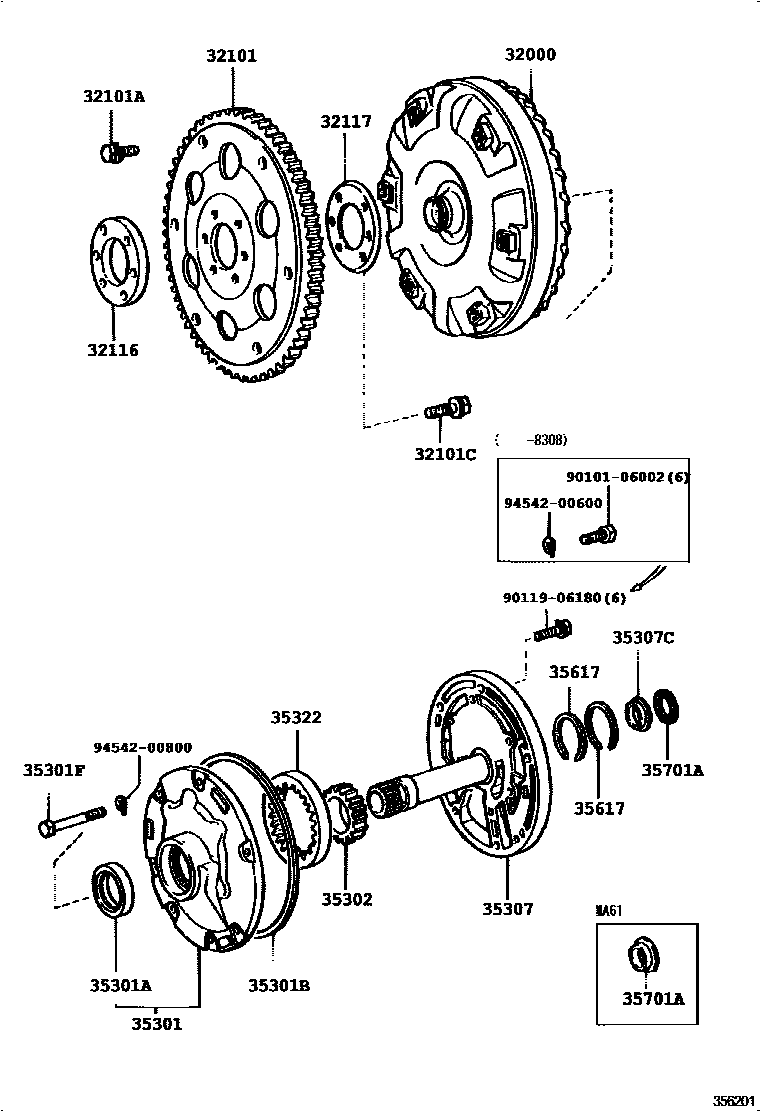

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-12030iTA60..3FC¥116,000198108-198308

main32000-14070iMA61..4FC¥134,000198308-198408

sub32000-14071¥141,000

main32000-14071iMA61..4FC¥141,000198408-198512

main32000-14090iRA60,61,SA63..4FC¥105,000198108-198405

sub32000-14091¥105,000

main32000-14091iRA61,SA63..4FC¥105,000198405-198507

main32000-30101iRA65..4FC¥105,000198408-198507

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iTA60..3FC¥20,900198108-198308

sub32101-22030¥21,000

main32101-14040iSA63..4FC¥17,000198308-198408

main32101-20050iRA60,61,65..4FC¥8,700198108-198507

main32101-30040iMA61..4FC¥20,900198308-198408

sub32101-30060¥22,100

main32101-30060iMA61..4FC¥22,100198408-198512

sub32101-30061¥20,500

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iMA61,RA60,61,65,SA63,TA60..ATM¥170198108-198411

L=10.5,WHITE

main90109-08113iMA61,RA6#..4FC¥80198411-198512

*8-1.25PX12-8.4,L=12,GREEN

main90119-08223iMA61,RA60,61,65,SA63,TA60..ATM¥190198108-198411

*8-1.25PX10.5-6.5,L=10.5,YELLOW

main90119-08498iMA61,RA6#..4FC¥80198411-198512

*8-1.25PX12-8,L=12,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iTA60..3FC¥240198108-198308

*10-1.25PX23-15.5

main90109-10037iMA61..4FC¥450198308-198512

*10-1.25PX18-12

main90109-10054iSA63..4FC¥210198308-198408

*10-1.25PX22-16

main90913-01011iRA60,61,65..4FC¥230198108-198507

*17-1.25PX26-18

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iTA60..3FC¥820198108-198308

main32116-14020iSA63..4FC¥1,070198308-198408

main32116-20011iRA60,61,65..4FC¥1,030198108-198507

main32116-30011iMA61..4FC¥730198308-198512

32117SPACER, DRIVE PLATE, REAR

main32117-14011iTA60..3FC¥680198108-198308

main32117-14030iSA63..4FC¥1,710198308-198408

main32117-20021iRA60,61,65..4FC¥400198108-198507

main32117-30011iMA61..4FC¥730198308-198512

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iMA61..4FC..EUG¥18,200198308-198512

main35301-30030iRA60,61,65,SA63,TA60..ATM¥19,000198108-198512

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iMA61,RA6#,SA63..4FC¥540198312-198512

main90311-38129iMA61,RA60,61,SA63,TA60..ATM¥540198108-198312

sub90311-38020¥540

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iMA61,RA60,61,65,SA63,TA60..ATM¥590198108-198512

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042iMA61..4FC..EUG¥320198308-198512

sub90105-08137¥210

main90101-08046iTA60..3FC¥230198108-198308

sub90105-08128¥260

main90101-08431iRA60,61,65,SA63..4FC¥280198108-198512

sub90105-08136¥270

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iMA61..4FC..EUG¥3,830198308-198512

sub35321-22020¥2,670

sub35321-22030¥2,670

sub35321-22040¥2,670

sub35321-22050¥2,670

sub35321-22060¥2,670

main35321-22010iRA60,61,65,SA63,TA60..ATM¥3,820198108-198512

sub35321-22090¥3,680

35307SHAFT SUB-ASSY, STATOR

main35370-14011iMA61..4FC..EUG¥25,300198308-198412

sub35370-14012¥25,600

main35370-14012iMA61..4FC..EUG¥25,600198412-198512

main35370-22011iTA60..3FC¥26,500198108-198308

sub35370-22012¥26,900

main35370-22030iRA60,61,65,SA63..4FC¥25,300198108-198412

sub35370-22031¥25,300

main35370-22031iRA6#..4FC¥25,300198412-198512

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iRA60,61,65,SA63,TA60..ATM¥530198108-198507

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iMA61..4FC..EUG¥5,700198308-198512

T=17.286-17.235

sub35322-22020¥4,030

sub35322-22030¥4,030

sub35322-22040¥4,030

sub35322-22050¥4,030

sub35322-22060¥4,030

main35322-22010iRA60,61,65,SA63,TA60..ATM¥4,910198108-198512

T=15.286-15.235

sub35322-22090¥5,400

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iMA61,RA60,61,65,SA63..4FC¥1,260198108-198512

main35617-22011iTA60..3FC¥2,010198108-198308

sub35617-32010¥1,400

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iRA60,61,65,SA63,TA60..ATM¥570198108-198507

main90374-25003iMA61..4FC¥1,270198308-198512

9010106002

main90101-06002¥130

9011906180

main90119-06180¥80

9454200600

main94542-00600¥180

9454200800

main94542-00800¥170

20 parts on this diagram · 1 diagram in section
