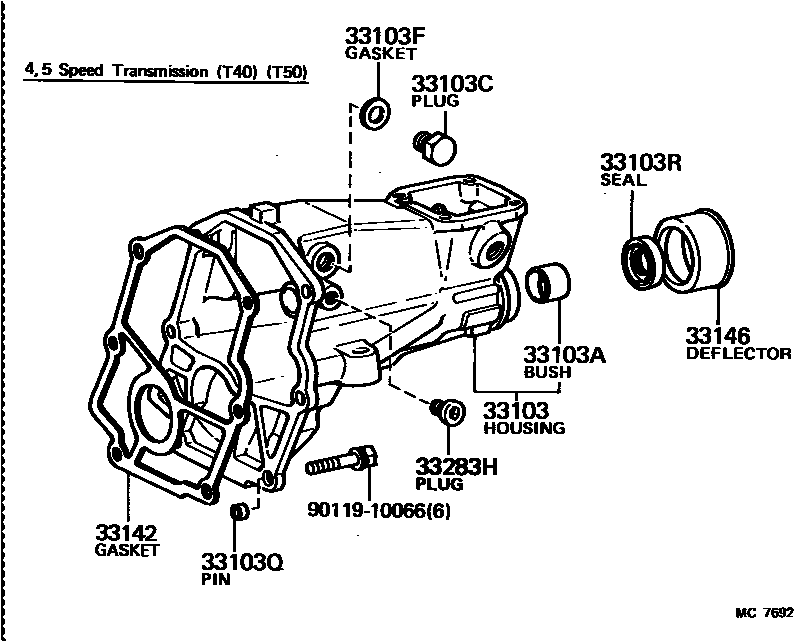

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12130iAA63,TA60198503-198507

main33103-14040iAA63,TA60..5F198108-198403

sub33103-14041

main33103-14041iAA63,TA60198403-198503

sub33103-12130

main33103-22090iMA61,RA6#,SA63..5F198108-198512

sub33103-22091

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iAA63,TA60..5F198108-198403

main90999-72023iMA61,RA6#,SA63..5F198108-198512

sub90999-73139

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90341-18006iAA63,TA60198308-198507

main90341-18049iTA60..5F198108-198308

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18007iAA63,TA60..5F198108-198408

sub90430-18008

main90430-18008iAA63,TA60198408-198507

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017iAA63,TA60..5F198108-198507

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iAA63,TA60..5F198109-198507

main90311-32086iTA60..5F198108-198109

sub90311-32010

main90311-38043iMA61,RA6#,SA63..5F198108-198512

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iAA63,TA60..5F198108-198507

main33142-22010iMA61,RA6#,SA63..5F198108-198512

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iAA63,TA60..5F198108-198507

main33146-30010iMA61,RA6#,SA63..5F198108-198512

sub33146-30020

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10065iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

9011910066

main90119-10066

10 parts on this diagram · 2 diagrams in section
