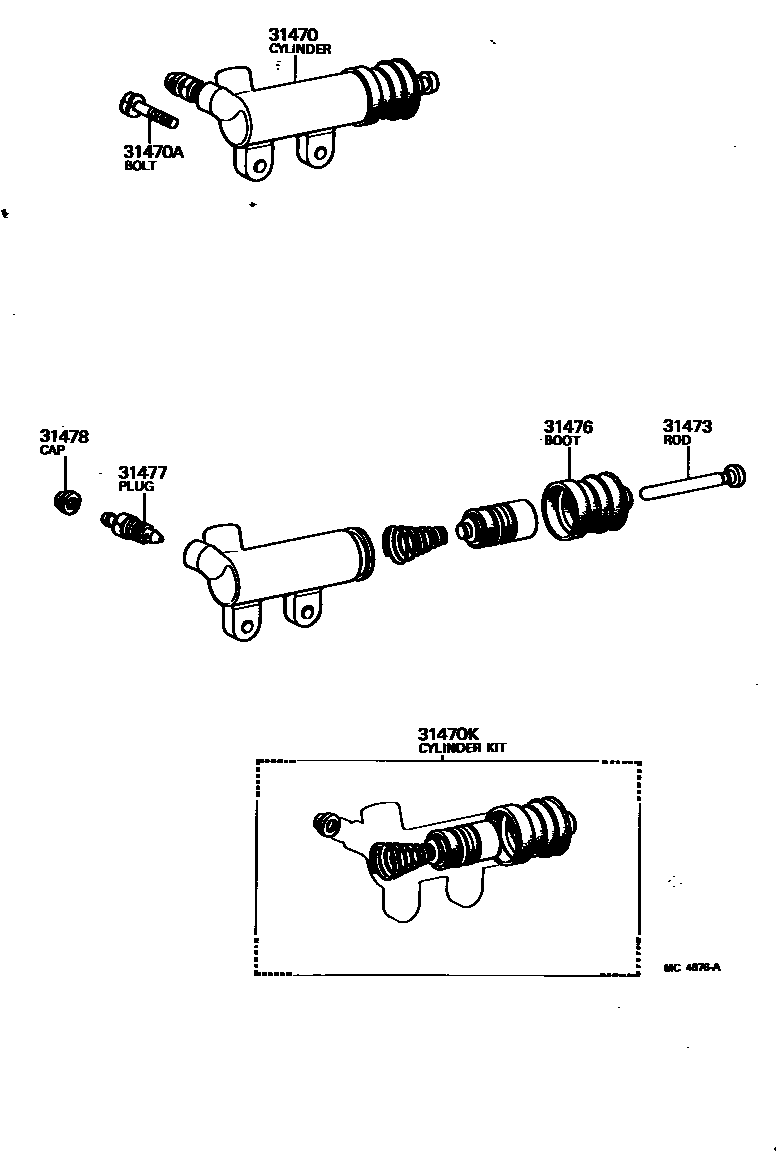

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12050iAA63¥8,000198308-198507

main31470-14021iRA6#..5F¥7,400198108-198507

sub31470-20190¥7,500

main31470-20151iTA60..5F¥7,400198108-198507

main31470-30220iMA61,SA63..5F¥7,200198112-198512

sub31470-30221¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iAA63,MA61,RA6#,SA63,TA60..5F¥160198108-198512

*8-1.25PX25-25

sub91611-B0825¥160

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iAA63,MA61,RA6#,SA63,TA60..5F¥1,040198108-198512

sub04313-12030¥800

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAA63,TA60..5F¥470198108-198507

main31473-22010iMA61,RA6#,SA63..5F¥720198108-198512

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAA63,MA61,RA6#,SA63,TA60..5F¥230198108-198512

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAA63,MA61,RA6#,SA63,TA60..5F¥180198108-198512

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAA63,MA61,RA6#,SA63,TA60..5F¥160198108-198512

7 parts on this diagram · 2 diagrams in section
