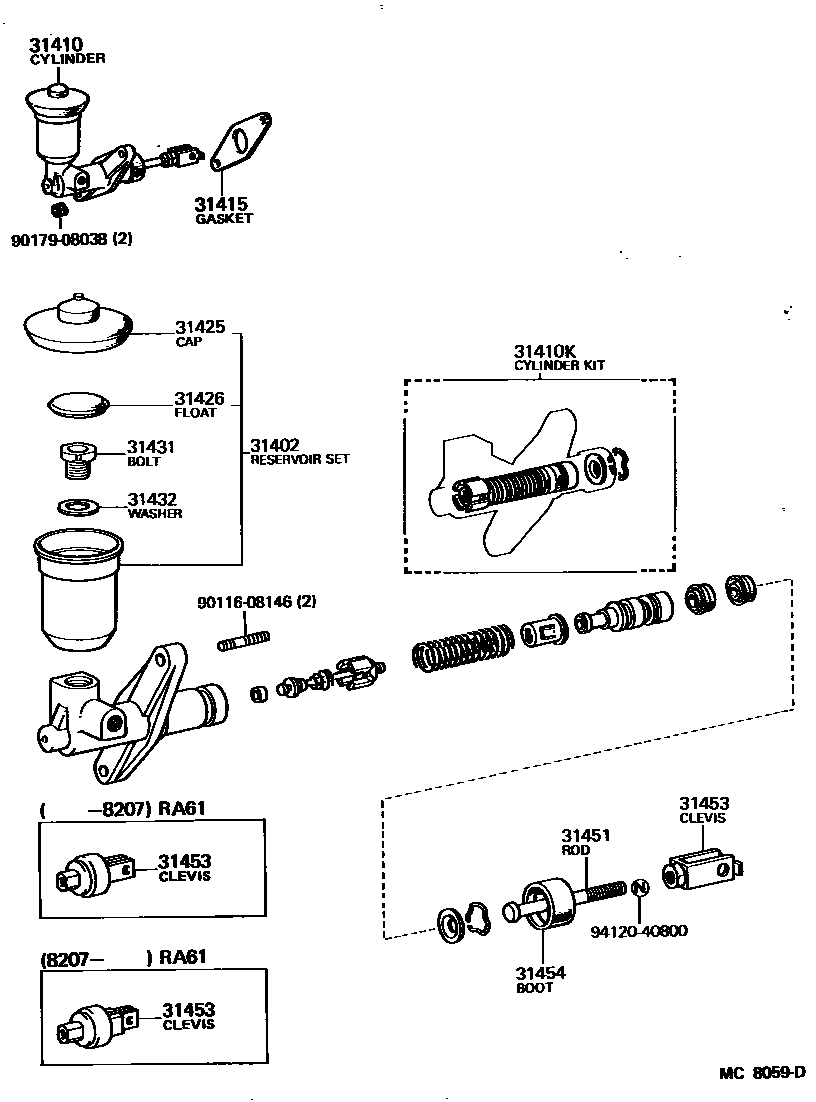

CLUTCH MASTER CYLINDER

0001 1 0002 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iAA63,RA60,61,63,SA63,TA60..5F198108-198507

main47202-12050iMA61,RA65..5F198112-198512

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14120iRA60,63..RHD..5F198108-198305

sub31410-14121

main31410-14131iRA60,61,63..LHD..5F..(GEN,ME,SAA)198108-198507

sub31410-14132

main31410-14140iRA65..5F198112-198512

sub31410-14240

main31410-14141iMA61..LHD..5F198208-198512

sub31410-14250

main31410-14150iTA60..TCB;RA61,63..LHD..5F..EUR198108-198207

sub31410-14H00

main31410-14151iAA63..LHD198207-198507

sub31410-14152

main31410-14160iRA60,61,63,SA63..RHD..5F..(ARL,GEN)198305-198507

sub31410-14161

main31410-14180iRA61..RHD..EUG198305-198507

sub31410-14181

main31410-22070iMA61..RHD198112-198305

sub31410-22071

main31410-24011iRA61..RHD198108-198207

sub31410-24H00

main31410-24012iRA61..RHD198207-198305

sub31410-22140

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12020iRA60,61,63,SA63..5F..(ARL,GEN,ME,SAA)198108-198507

sub04311-12021

main04311-14011iMA61,RA65..5F198112-198512

sub04311-14012

main04311-30080iAA63;TA60..TCB;RA61,63..5F..EUR198108-198507

sub04311-14020

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iTA60..SCB198108-198512

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iRA6#,SA63..5F..(ARL,GEN,ME,SAA)198108-198512

main31451-30060iAA63;TA60..TCB;RA61,63..5F..EUR198108-198507

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iTA60..TCB;RA61,63..5F..EUR198108-198207

main31404-30041iAA63;TA60..TCB;RA61,63..5F..EUR198207-198507

main31453-22010iMA61..5F198108-198512

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iTA60..SCB198108-198512

main31454-24010iAA63;TA60..TCB;RA61,63..5F..EUR198108-198507

9011608146

main90116-08146

9017908038

main90179-08038

9412040800

main94120-40800

14 parts on this diagram · 2 diagrams in section
