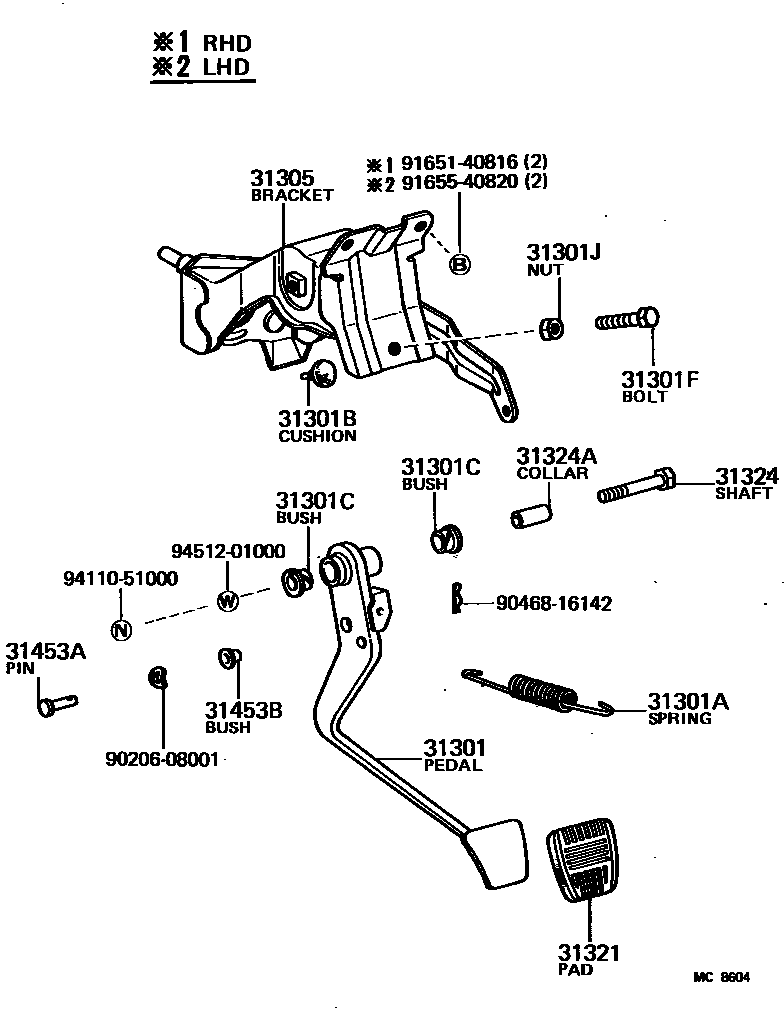

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14050iAA63,RA60,61,63,SA63..RHD..5F198108-198507

main31301-14060iAA63,RA60,61,63,TA60..LHD..5F198108-198507

main31301-14070iMA61..LHD198112-198512

main31301-24010iMA61..RHD198112-198302

sub31301-24030

main31301-24030iMA61,RA65..RHD..5F198302-198512

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14002iAA63,RA60,61,63,SA63,TA60..5F198108-198507

main90507-20005iMA61,RA65..RHD..5F198112-198512

main90507-23003iMA61..LHD198112-198512

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAA63,RA60,61,63,SA63,TA60..5F198108-198507

main90541-07010iMA61,RA65..5F198112-198512

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMA61..5F198512-198512

main90386-13192iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10105iMA61,RA65..5F198208-198512

main90101-10109iMA61..LHD198112-198208

sub90101-10105

main90101-10369iAA63,RA60,61,63,SA63,TA60..5F198108-198507

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10114iMA61..LHD198112-198512

main94120-41000iRA60,61,63,TA60..5F198108-198507

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-14080iRA60,61,63,TA60..LHD..5F198108-198507

main55107-14090iMA61..LHD198112-198208

main55107-14091iMA61..LHD198208-198512

main55107-14100iMA61,RA65..RHD..5F198308-198512

main55107-24010iRA60,61,63..RHD..5F198108-198507

main55107-24020iMA61..RHD198112-198308

31321PAD, CLUTCH PEDAL

main31321-14020iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31324SHAFT, CLUTCH PEDAL

main90101-10039iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAA63,MA61,RA60,61,63,TA60..LHD..5F198108-198512

main90387-10021iAA63,MA61,RA6#,SA63..RHD..5F198108-198512

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iRA63..GEN;MA61,RA60..5F198108-198207

L=23.5

main90240-08006iAA63,MA61,RA6#,SA63,TA60..5F198207-198512

L=23.5,L=23.5

main90240-08027iTA60..TCB198108-198207

L=26.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAA63,MA61,RA6#,SA63..RHD..5F198108-198512

main90386-08010iAA63,MA61,RA60,61,63,TA60..LHD..5F198108-198512

9020608001

main90206-08001

9046816142

main90468-16142

9165140816

main91651-40816

9165540820

main91655-40820

9411051000

main94110-51000

9451201000

main94512-01000

18 parts on this diagram · 5 diagrams in section
