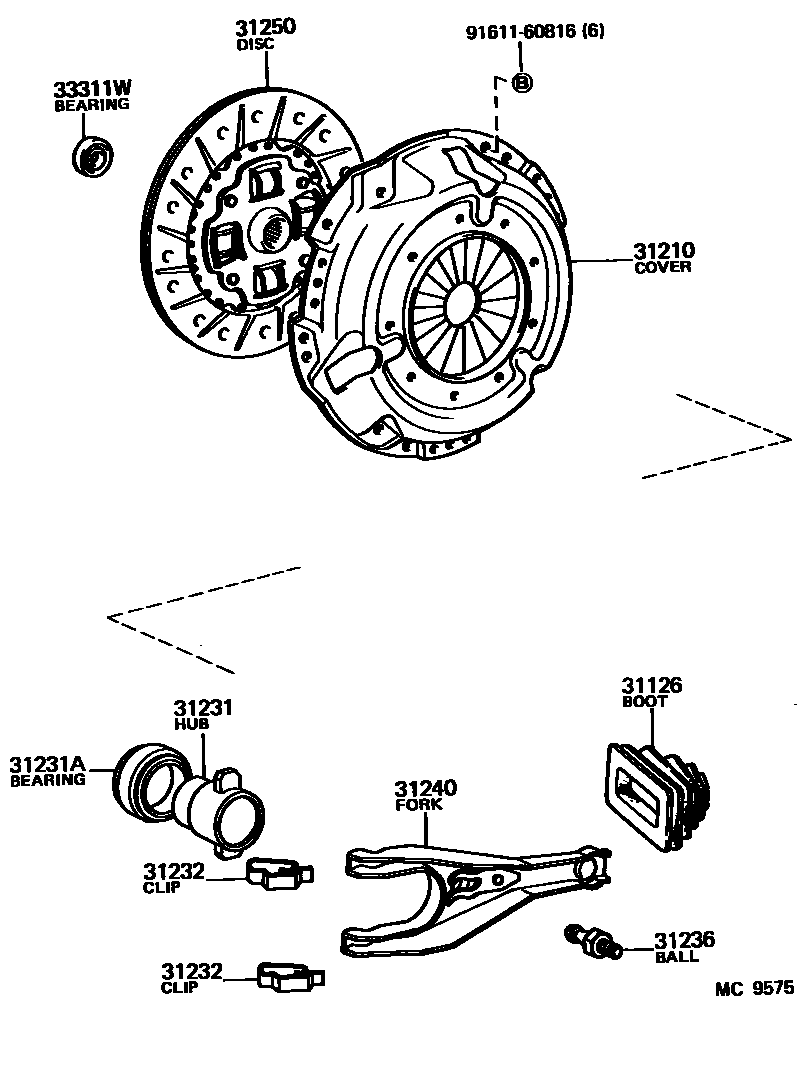

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRA6#..5F198108-198507

main31126-20070iAA63,MA61,SA63,TA60..5F198108-198512

31210COVER ASSY, CLUTCH

main31210-12080iAA63198308-198507

sub31210-12120

main31210-14070iTA60..5F198108-198308

sub31210-14100

main31210-14100iTA60198308-198507

sub31210-14101

main31210-14120iMA61198112-198208

sub31210-14121

main31210-14121iMA61..5F..TWC198208-198512

sub31210-14122

main31210-14130iRA65..5F198408-198507

sub31210-35090

main31210-20170iRA63198108-198308

sub31210-20171

main31210-24020iMA61..5F..EFI198308-198512

sub31210-35130

main31210-30172iRA60,61..5F198108-198308

sub31210-20270

main31210-36029iRA61,SA63..5F198308-198507

sub31210-36200

31231HUB, CLUTCH RELEASE BEARING

main31231-12050iAA63198308-198507

main31231-20081iTA60..5F198108-198507

main31231-20090iRA6#,SA63..5F198108-198507

main31231-36070iMA61..5F198112-198512

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31236BALL, RELEASE FORK

main31236-30060iAA63,MA61,RA6#,SA63,TA60..5F198108-198512

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRA6#..5F198108-198507

sub31204-20072

main31204-20080iAA63,MA61,TA60..5F198108-198512

main31204-20090iSA63..5F198308-198408

31250DISC ASSY, CLUTCH

main31250-12180iAA63198308-198312

sub31250-12182

main31250-12182iAA63198312-198409

sub31250-12183

main31250-12183iAA63198409-198412

sub31250-12184

main31250-12184iAA63198412-198507

sub31250-12290

main31250-14090iTA60..5F198108-198208

sub31250-14091

main31250-14091iTA60..5F198208-198507

sub31250-14092

main31250-14130iMA61..5F..TWC198308-198512

sub31250-36290

main31250-22053iRA63198108-198308

sub31250-22054

main31250-22160iRA60,SA63..5F..ARL198303-198402

sub31250-35101

main31250-24011iMA61..5F..EFI198112-198512

sub31250-24012

main31250-30200iRA60,61..5F..(EUR,GEN,ME)198108-198402

sub31250-30330

main31250-30330iRA6#..5F198402-198507

sub31250-25122

main31250-35101iSA63..5F198402-198408

sub31250-60110

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMA61,RA6#..5F198108-198512

sub90363-12024

main90363-12003iAA63,TA60..5F198108-198507

main90363-12004iSA63..5F198308-198507

9161160816

main91611-60816

10 parts on this diagram · 4 diagrams in section
