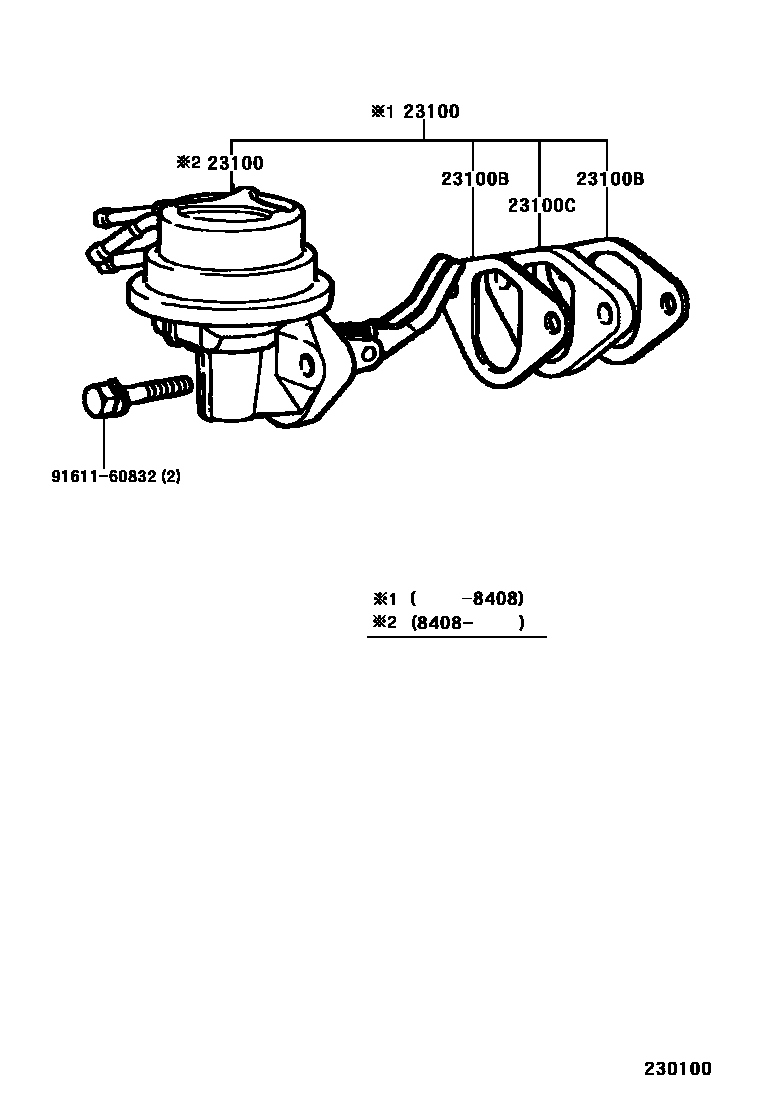

FUEL PUMP & PIPE

0001 1 0002 1 0003 1

23100PUMP ASSY, FUEL

main23100-19105i2TB..TA60..EUG198108-198306

sub23100-19106

main23100-19116i2TB..TA60..EUG198306-198507

sub23100-19117

main23100-29306i2T#..TA60..GEN198108-198507

sub23100-29307

main23100-37060i21R#..RA61198408-198507

sub23100-37061

main23100-39106i18RG..RA63198108-198112

sub23100-39107

main23100-39107i18RG..RA63198112-198308

sub23100-39108

main23100-39336i21RC..RA60198108-198308

main23100-39346i21R#..RA60,61..EUR,GEN,ME,SAA198108-198408

sub23100-37041

main23100-79045i2SC..SA63198308-198408

23100BGASKET, FUEL PUMP

main90923-05005i21R#,18RG..RA60,61,63198108-198507

sub90923-05019

23100CINSULATOR, FUEL PUMP

main23915-63010i2SC..SA63198308-198408

sub23915-63011

main90923-06001i2T#..TA60198108-198507

sub90923-06009

9161160832

main91611-60832

4 parts on this diagram · 3 diagrams in section
