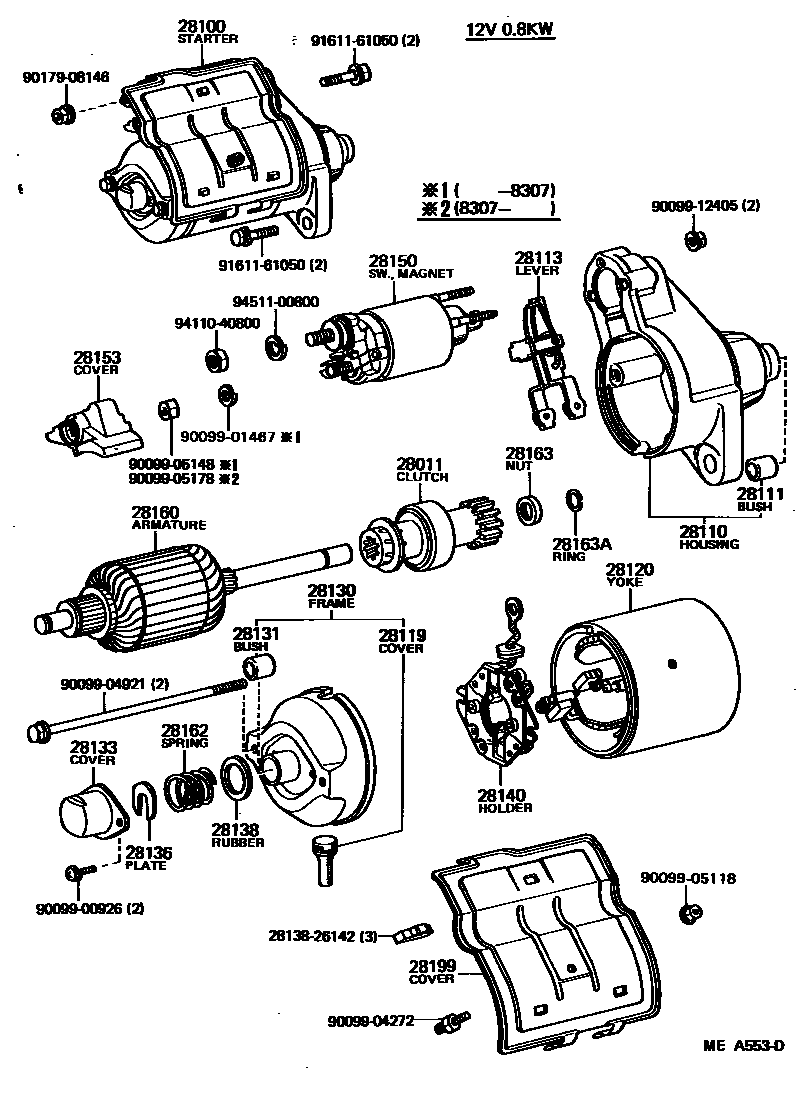

STARTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

main28011-26042i21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA198108-198512

12V 1.0KW,1.4KW

28100STARTER ASSY

main28100-15110i4AGE..AA63198308-198507

12V 0.8KW,12V 0.8KW

sub28100-15170

main28100-15130i4AGE..AA63198308-198507

12V 1.0KW,12V 1.0KW

sub28100-15180

main28100-27020i2T#..TA60198108-198507

12V 0.8KW,12V 0.8KW

main28100-27030i2T#..TA60198108-198507

12V 1.0KW,12V 1.0KW

main28100-34060i21R#,22REC..RA6#..ARL,EUR,GEN198108-198507

12V 1.0KW,12V 1.0KW

main28100-34080i18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN)198108-198308

12V 1.0KW,12V 1.0KW

main28100-37010i21R..RA61;21R#,18RG..RA60,63198108-198302

12V 0.8KW,12V 0.8KW

sub28100-37011

main28100-37011i21R..RA61;21R#,18RG..RA60,63198302-198507

12V 0.8KW,12V 0.8KW

main28100-41060i5MGE..MA61;5ME..MA61..ARL198112-198512

12V 1.0KW,12V 1.0KW

sub28100-45050

main28100-45033i5MGE..MA61..EUG198112-198308

12V 1.4KW,12V 1.4KW

sub28100-45050

main28100-45050i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW,12V 1.4KW

main28100-63020i2SC..SA63198308-198408

12V 1.0KW,12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-15110i4AGE..AA63198308-198507

12V 0.8KW

main28110-15130i4AGE..AA63198308-198507

12V 1.0KW

main28110-27020i2T#..TA60198108-198507

12V 0.8KW

main28110-27030i2T#..TA60198108-198507

12V 1.0KW

main28110-34060i21R#,22REC..RA6#..ARL,EUR,GEN198108-198507

12V 1.0KW

main28110-34080i18RG..RA63;21R#..RA60,61..LHD..(EUR,GEN)198108-198308

12V 1.0KW

main28110-37010i21R..RA61;21R#,18RG..RA60,63198108-198507

12V 0.8KW

main28110-41060i5MGE..MA61;5ME..MA61..ARL198112-198512

12V 1.0KW

main28110-45050i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28110-63020i2SC..SA63198308-198408

12V 1.0KW

main28115-45021i5MGE..MA61..EUG198112-198308

12V 1.4KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28119COVER, STARTER END FRAME

main28199-77090i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i21R..RA61;21R#,18RG..RA60,63198108-198507

12V 0.8KW

main28120-15090i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28120-26070i21R#,18RG,5MGE,2T#..MA61,RA6#,TA60..EUR,GEN198108-198203

12V 1.0KW

sub28120-26071

main28120-26071i21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA198203-198512

12V 1.0KW

main28120-26140i4AGE,2T#..AA63,TA60198108-198507

12V 0.8KW

main28120-34030i5MGE..MA61..EUG198112-198308

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i4AGE..AA63198308-198507

12V 1.0KW

main28130-13020i4AGE..AA63198308-198507

12V 0.8KW

main28130-15020i5MGE..MA61;5ME..MA61..ARL198112-198512

12V 1.0KW

main28130-15090i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28130-26070i2T#..TA60198108-198507

12V 1.0KW

main28130-34060i21R#,22REC,18RG..RA6#..ARL,EUR,GEN198108-198507

12V 1.0KW

main28130-37010i21R..RA61;21R#,18RG,2T#..RA60,63,TA60198108-198507

12V 0.8KW

main28130-63020i2SC..SA63198308-198408

12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

main28140-15090i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28140-26070i21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA198108-198512

12V 1.0KW

main28140-34030i5MGE..MA61..EUG198112-198308

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i4AGE..AA63198308-198507

12V 1.0KW

main28150-15012i21R..RA61;21R#,18RG,2T#..RA60,63,TA60198108-198304

12V 0.8KW

sub28150-37010

main28150-27031i2T#..TA60198108-198507

12V 1.0KW

main28150-34080i21R#,22REC..RA60,61,65..RHD198108-198507

12V 1.0KW

main28150-37010i4AGE..AA63198304-198507

12V 0.8KW

sub28150-37011

main28150-41060i5MGE..MA61;5ME..MA61..ARL198112-198512

12V 1.0KW

main28150-45032i5MGE..MA61..EUG198112-198308

12V 1.4KW

main28150-45050i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28150-63021i2SC..SA63198308-198408

12V 1.0KW

28153COVER, MAGNET SWITCH

main28159-13030i4AGE,2TB..AA63,TA60198308-198403

12V 0.8KW

main28159-15010i21R..RA61198108-198507

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

main28160-15090i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

sub28160-15091

main28160-26050i5MGE..MA61..EUG198112-198308

12V 1.4KW

main28160-26070i21R#..RA61..EUR,GEN;21R#,22REC,18RG,4AGE,5M#,2SC,2T#..AA63,MA61,RA60,63,65,SA63,TA60..ARL,EUR,GEN,SA,SAA198108-198512

12V 1.0KW

sub28160-26071

28162SPRING, STARTER BRAKE

main28162-15010i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i21R..RA61;21R#,18RG,4AGE,2T#..AA63,RA60,63,TA60198108-198507

12V 0.8KW

28199COVER, STARTER

main28199-15090i5M#..MA61..EUR,GEN198308-198512

12V 1.4KW

main28199-15110i4AGE,2TB..AA63,TA60198308-198507

12V 0.8KW

main28199-15130i4AGE..AA63198308-198507

12V 1.0KW

sub28199-63050

main28199-26131i2T#..TA60198108-198308

12V 0.8KW

sub28199-15110

main28199-27031i2T#..TA60198108-198507

12V 1.0KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009901467

main90099-01467

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905148

main90099-05148

9009905178

main90099-05178

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

33 parts on this diagram · 10 diagrams in section
