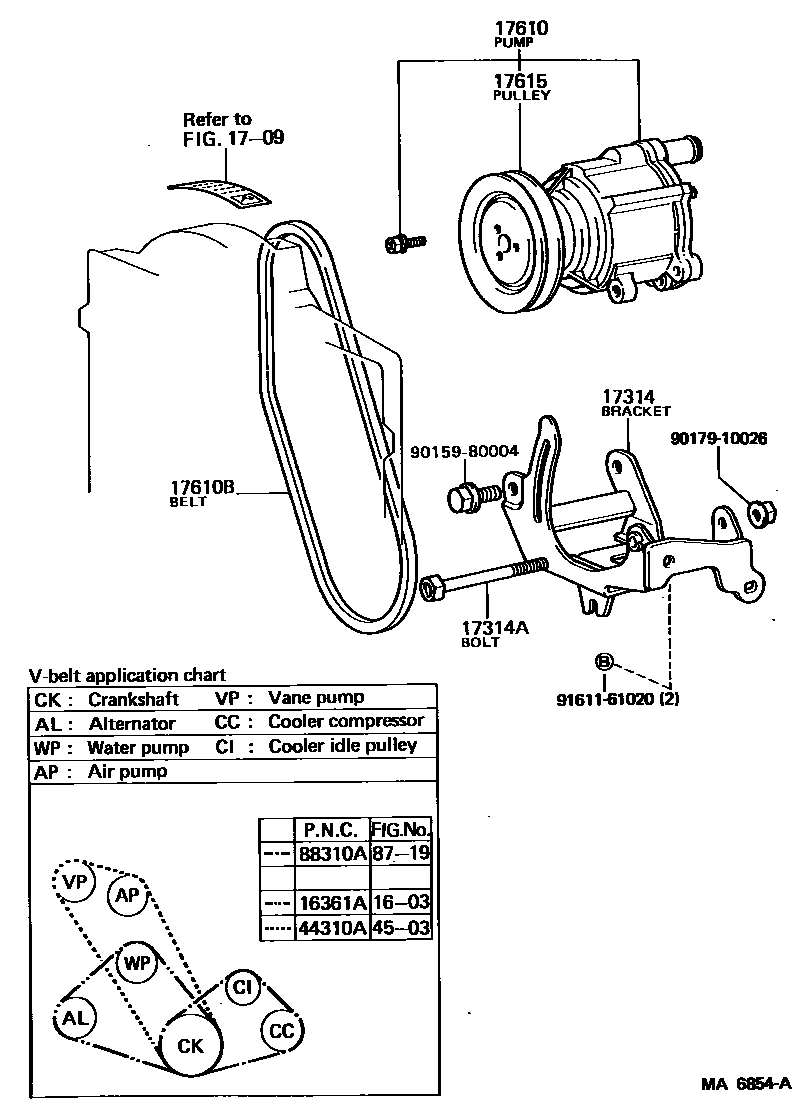

AIR PUMP

0001 1 0002 1 0003 1

1603

1709

17314BRACKET, AIR PUMP

main17314-35010i21RC..RA60,61198108-198507

main17314-41031i5ME..MA61198308-198502

main17314-43010i5ME..MA61198502-198512

main17314-74010i2SC..SA63198308-198408

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10463i21RC..RA60,61198108-198507

main90110-10001i5ME..MA61198308-198512

17610PUMP ASSY, AIR

main17600-74010i2SC..SA63198308-198408

main17610-35010i21RC..RA60,61198108-198401

main17610-35011i21RC..RA61198401-198507

main17610-45031i5ME..MA61198308-198512

17610BBELT, V(FOR AIR PUMP)

main99332-01395i5ME..MA61198308-198512

main99332-10820i21RC..RA60,61198108-198507

L=820

main99363-50640i2SC..SA63198308-198408

17615PULLEY(FOR AIR PUMP)

main17615-35010i21RC..RA60,61198108-198507

main17615-41020i5ME..MA61198308-198512

main17615-74010i2SC..SA63198308-198408

4503

8719

9015980004

main90159-80004

9017910026

main90179-10026

9161161020

main91611-61020

12 parts on this diagram · 3 diagrams in section
