WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1603

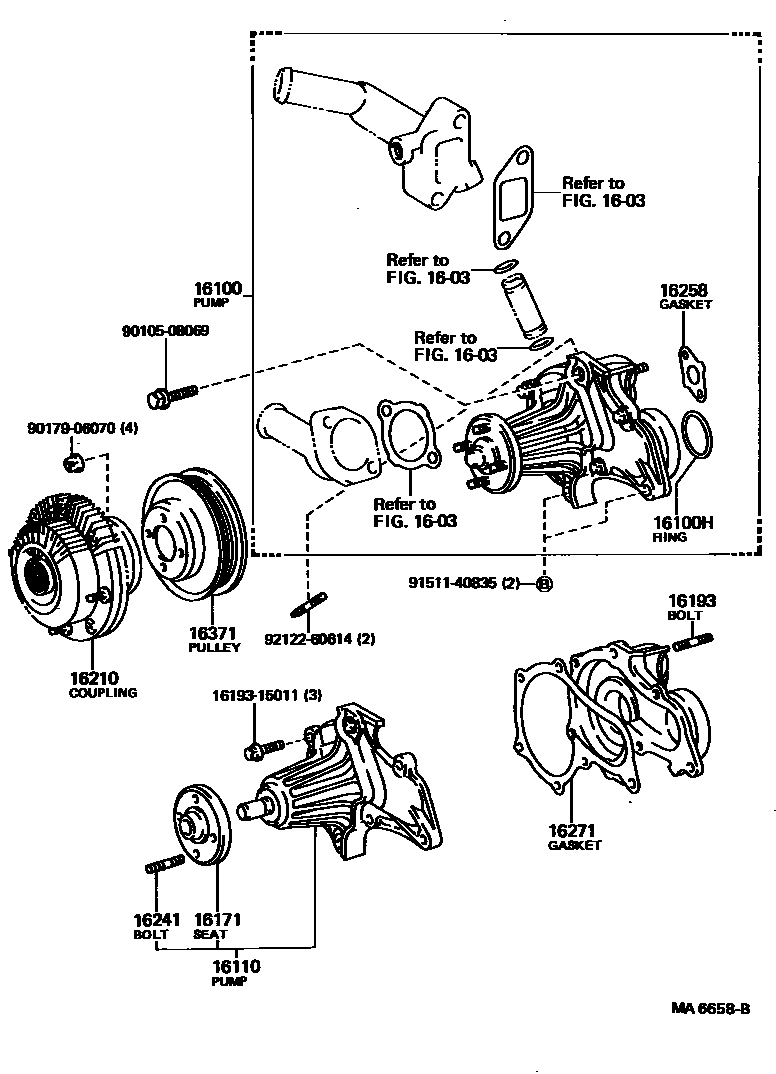

16100PUMP ASSY, ENGINE WATER

main16100-19095i4AGE..AA63198308-198507

main16100-28020i2T#..TA60198108-198507

main16100-39227i18RG..RA63198108-198308

sub16100-39228

main16100-39315i21R#..RA60,61198108-198208

main16100-39316i21R#..RA60,61198208-198408

sub16100-39317

main16100-39345i21R#,22REC..RA6#198408-198507

sub16100-39346

main16100-49655i5MGE..MA61198112-198512

sub16100-49656

main16100-49735i5ME..MA61198308-198512

sub16100-49736

main16100-69075i2SC..SA63198308-198408

sub90179-06045

sub16100-69076

16100HRING, O(FOR WATER PUMP)

main96711-24035i4AGE..AA63198308-198507

sub96761-24035

main96711-24037i2SC..SA63198308-198408

16110PUMP ASSY, WATER, W/O COUPLING

main16110-16010i4AGE..AA63198308-198507

sub16110-19155

main16110-28010i2T#..TA60198108-198507

main16110-45110i5ME..MA61198308-198402

main16110-49075i5ME..MA61198402-198512

sub16110-49076

main16110-88251i18RG..RA63198108-198308

16171SEAT, WATER PUMP PULLEY

main16171-24030i18RG..RA63198108-198308

main16171-26021i2T#..TA60198108-198507

main16171-35010i21R#,22REC..RA6#198503-198507

main16171-38022i21R#,22REC..RA60,61,65198108-198503

main16171-41170i5MGE..MA61198112-198304

main16171-43030i5MGE..MA61198304-198308

main16171-43040i5MGE..MA61198308-198512

main16171-88280i4AGE..AA63198308-198507

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15010×2i4AGE..AA63198308-198507

main16193-33030×5i18RG..RA63198108-198308

main16193-41031i5ME..MA61198308-198512

main16193-45100i5ME..MA61198308-198512

16210COUPLING ASSY, FLUID

main16210-16010i4AGE..AA63198308-198507

main16210-28020i2T#..TA60198108-198507

main16210-34102i18RG..RA63198108-198308

main16210-38050i22REC..RA65..5F198408-198507

main16210-38060i22REC..RA65..4FC198408-198507

main16210-45100i5MGE..MA61198112-198208

main16210-45110i5MGE..MA61..GEN,SA,SAA198208-198512

main16210-74010i2SC..SA63198308-198408

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-33030×4i21R#,18RG..RA6#198108-198408

main16198-41170×4i5MGE..MA61198112-198304

main16198-43030×4i5MGE..MA61198304-198308

main16198-43040×4i5M#..MA61198308-198512

main16241-15020×4i4AGE..AA63198308-198507

main16241-28020×4i21R#,22REC..RA6#198408-198507

main90116-06008×4i2T#..TA60198108-198507

16258GASKET(FOR HEATER RETURN)

main16258-15011i2SC..SA63198308-198507

16271GASKET, WATER PUMP

main16124-15010i4AGE..AA63198308-198507

sub16124-16020

main16129-25011i2T#..TA60198108-198201

main16129-25012i2T#..TA60198201-198507

sub16129-25013

main16271-33010i18RG..RA63198108-198308

sub16271-33011

main16271-41011i5ME..MA61198308-198512

sub16271-43010

16371PULLEY, FAN

main16173-28010i2T#..TA60198108-198507

main16173-35020i21R#,22REC..RA6#198408-198507

main16173-38011i21R#..RA60,61198108-198408

main16173-43040i5M#..MA61198308-198512

main16173-45101i5MGE..MA61198112-198308

main16173-74010i2SC..SA63198308-198408

WATER PUMP SIDE

main16173-74011i2SC..SA63198308-198408

COUPLING SIDE

main16173-88251i18RG..RA63198108-198308

main16371-16020i4AGE..AA63198308-198501

main16371-16021i4AGE..AA63198501-198507

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9010508069

main90105-08069

9017906070

main90179-06070

9151140835

main91511-40835

9212260614

main92122-60614

16 parts on this diagram · 7 diagrams in section
