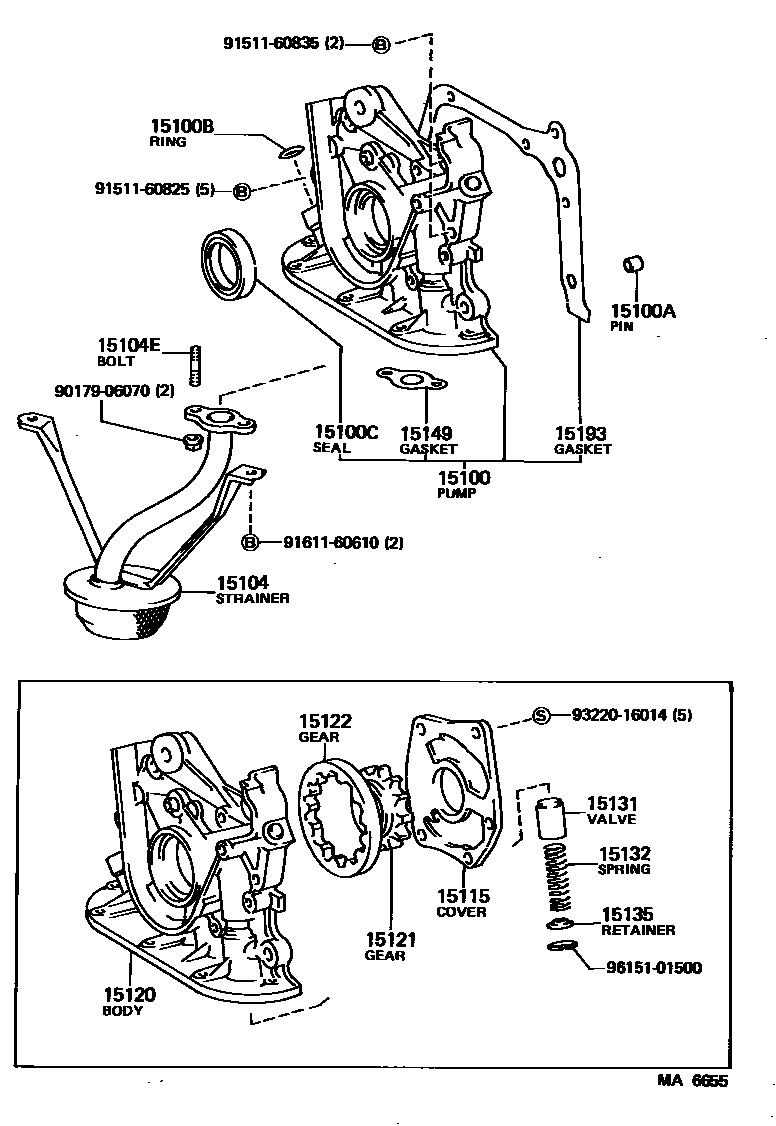

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15100PUMP ASSY, OIL

main15100-19025i4AGE..AA63198308-198507

sub15100-19026

main15100-26020i2T#..TA60198108-198507

main15100-35020i21R#,22REC..RA6#198408-198507

main15100-38021i21R#..RA60,61198108-198408

sub15100-35010

main15100-43010i5MGE..MA61198112-198408

main15100-43020i5MGE..MA61198408-198512

main15100-43030i5ME..MA61198308-198408

main15100-43050i5ME..MA61198408-198512

main15100-63010i2SC..SA63198308-198408

main15100-88271i18RG..RA63198108-198308

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021i4AGE..AA63198308-198507

15100BRING, O(FOR OIL PUMP)

main15188-63010i2SC..SA63198308-198408

main96711-19010i4AGE..AA63198308-198507

15100CSEAL(FOR OIL PUMP)

main15165-70010i2SC..SA63198308-198408

main90311-32001i4AGE..AA63198308-198507

sub90311-32018

15104STRAINER SUB-ASSY, OIL

main15104-15080i4AGE..AA63198308-198507

sub15104-15090

main15104-37010i21R#,22REC..RA60,61,65198108-198507

main15104-63010i2SC..SA63198308-198408

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06022i4AGE..AA63198308-198407

main90116-06049i4AGE..AA63198407-198507

15115COVER, OIL PUMP

main15012-26020i2T#..TA60198108-198507

main15115-16010i4AGE..AA63198308-198507

main15115-35020i21R#,22REC..RA6#198408-198507

main15115-38022i21R#..RA60,61198108-198408

sub15115-35010

15120BODY SUB-ASSY, OIL PUMP

main15120-16010i4AGE..AA63198308-198507

15121GEAR, OIL PUMP DRIVE

main15102-41040i5MGE..MA61198112-198408

main15102-42010i5MGE..MA61198408-198512

main15102-45010i5ME..MA61198308-198512

sub15102-43050

main15121-16010i4AGE..AA63198308-198507

main15121-38020i21R#,22REC..RA60,61,65198108-198507

15122GEAR, OIL PUMP DRIVEN

main15122-16010i4AGE..AA63198308-198507

main15122-38020i21R#,22REC..RA60,61,65198108-198507

main15122-41040i5MGE..MA61198112-198408

main15122-42010i5MGE..MA61198408-198512

main15122-45010i5ME..MA61198308-198512

sub15122-43050

15131VALVE, OIL PUMP RELIEF

main15131-22010i2T#..TA60198108-198507

main15131-24010i5M#..MA61198112-198512

main15131-38030i21R#,22REC..RA60,61,65198108-198507

main15131-41010i18RG..RA63198108-198308

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i18RG..RA63198108-198507

main15132-46010i21R#,22REC..RA60,61,65198108-198512

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AGE..AA63198308-198507

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AGE..AA63198308-198507

sub15149-15011

15193GASKET, OIL PUMP

main15193-33011i18RG..RA63198108-198308

main15197-15011i4AGE..AA63198308-198507

sub15197-15012

main15197-63010i2SC..SA63198308-198408

sub15197-63020

9017906070

main90179-06070

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

21 parts on this diagram · 6 diagrams in section
