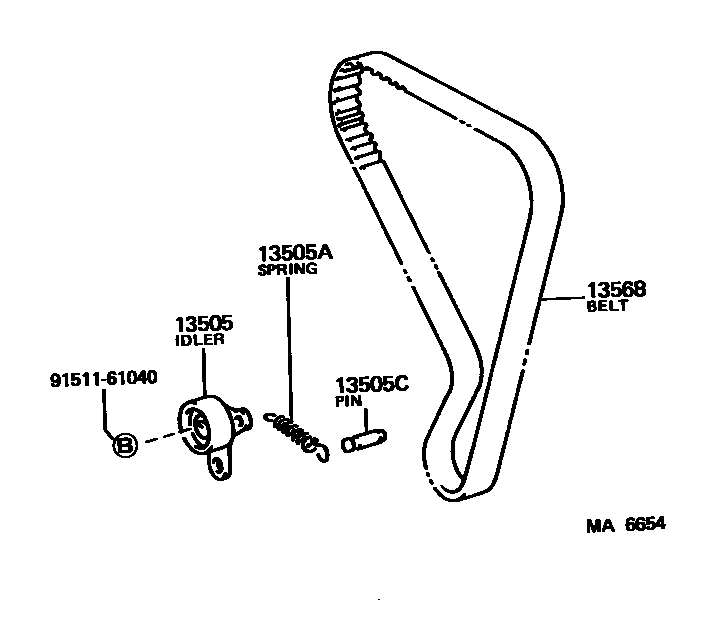

TIMING BELT

0001 1 0002 1 0003 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-16020i4AGE..AA63198308-198507

sub13505-16021

main13505-43010i5MGE..MA61198112-198512

main13505-63010i2SC..SA63198308-198408

sub13505-63011

13505ASPRING, TENSION(FOR IDLER)

main90506-20039i2SC..SA63198308-198408

main90507-16004i5MGE..MA61198205-198308

sub90507-18008

main90507-18008i5MGE..MA61198308-198512

main90507-20010i4AGE..AA63198308-198507

main90507-23002i5MGE..MA61198112-198205

sub90507-16004

13505CPIN(FOR IDLER SPRING TENSION)

main90249-06006i4AGE..AA63198308-198507

13568BELT, TIMING

main13568-16010i4AGE..AA63198308-198507

sub13568-16020

main13568-43010i5MGE..MA61198112-198308

sub13568-43020

main13568-43030i5MGE..MA61198308-198512

sub13568-49055

main13568-63020i2SC..SA63198308-198408

sub13568-63022

9151161040

main91511-61040

5 parts on this diagram · 3 diagrams in section
