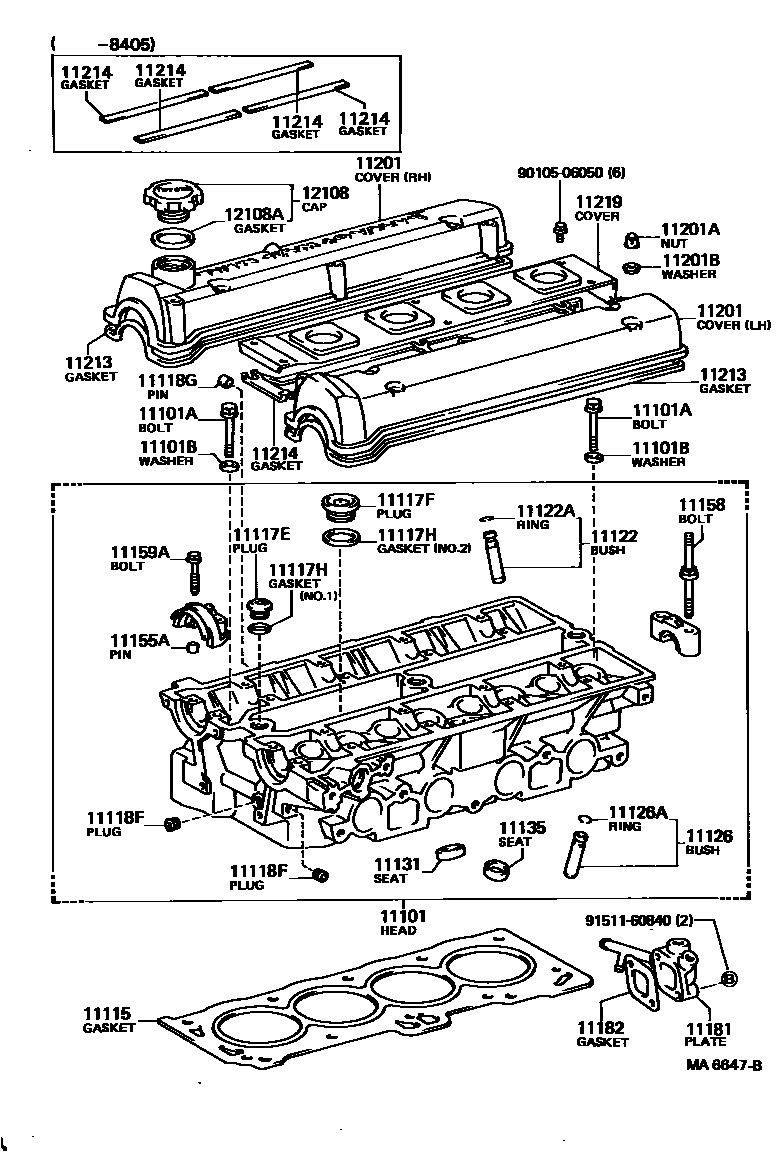

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-16030
sub11101-35080
sub11101-37020
sub11101-43022
sub11101-43031
11101ABOLT(FOR CYLINDER HEAD SET)
*12-1.25PX164-22
*12-1.25PX166.5-21
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11115GASKET, CYLINDER HEAD
sub11115-16070
sub11115-25040
sub11115-35021
sub11115-37021
sub11115-74020
sub11115-88231
11117GASKET, CAMSHAFT HOUSING, NO.1
sub11117-43020
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
PNC 11118A
NO.1
PNC 11118B
NO.2
11118GASKET, CAMSHAFT HOUSING, NO.2
sub11118-43020
11118FPLUG, TAPER, NO.1
11118GPIN, SLOTTED SPRING, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
STD,STD
STD,STD
STD,STD
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
STD,STD
STD,STD
STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD,STD
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
STD
STD
STD,STD
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
STD
STD
STD,STD
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
L=105,S=12&20
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
L=74.5
L=35,S=11&11
L=51
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
L=58.5,S=18&17
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-16020
sub11182-25011
sub11182-25012
sub11182-35011
sub11182-35021
sub11182-35031
sub11182-35031
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11214GASKET, CYLINDER HEAD COVER, NO.2
FR
RR
11219COVER, CYLINDER HEAD, NO.3
12108AGASKET(FOR OIL FILLER CAP)
9010506050
main90105-06050
9151160840
main91511-60840
34 parts on this diagram · 10 diagrams in section
