ENGINE OVERHAUL GASKET KIT

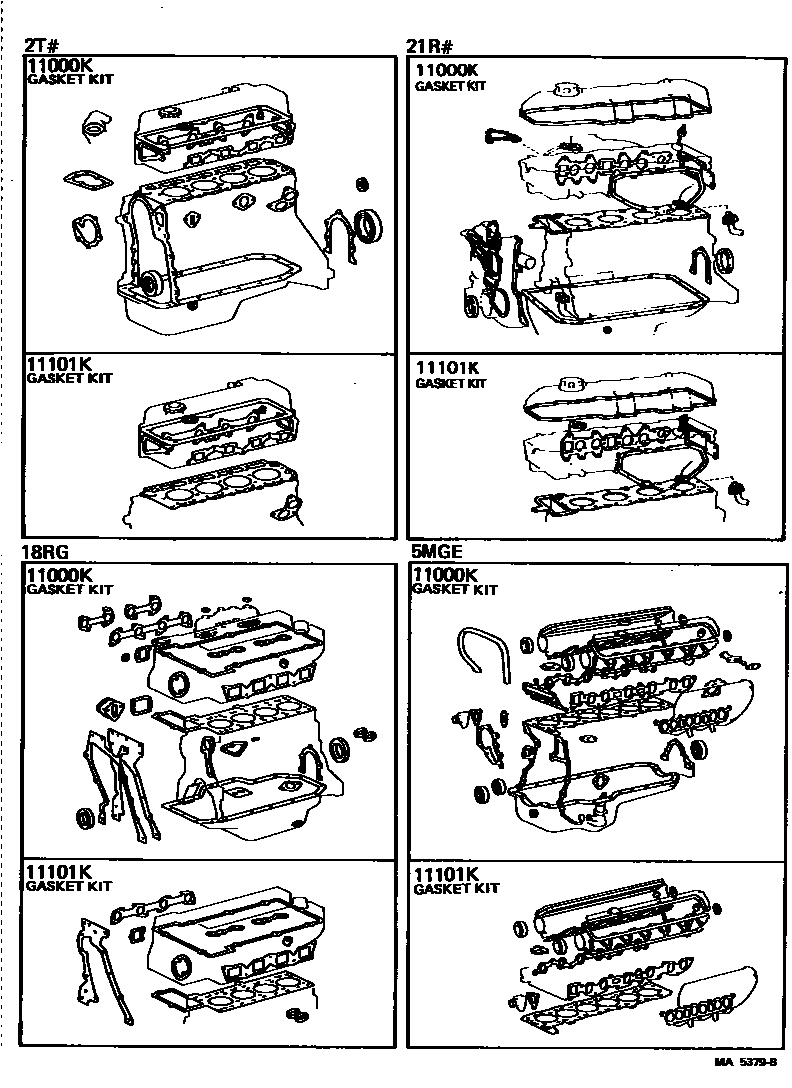

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-16020i198308-198403

main04111-16021i198403-198405

main04111-16022i198405-198506

main04111-16023i198506-198507

main04111-28016i198108-198201

main04111-28017i198201-198507

main04111-34101i198108-198308

main04111-35080i198408-198507

main04111-37031i198108-198408

main04111-37040i198408-198411

main04111-37041i198411-198507

main04111-37050i198408-198507

main04111-43011i198308-198512

main04111-43030i198112-198308

main04111-43050i198308-198512

main04111-74020i198308-198408

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-16020i198308-198403

main04112-16021i198403-198405

main04112-16022i198405-198506

main04112-16023i198506-198507

main04112-28015i198108-198201

main04112-28016i198201-198507

main04112-34081i198108-198308

main04112-35070i198408-198507

main04112-37031i198108-198408

main04112-37040i198408-198411

main04112-37041i198411-198507

main04112-37050i198408-198507

main04112-43011i198308-198512

main04112-43030i198112-198308

main04112-43051i198308-198512

main04112-74020i198308-198408

2 parts on this diagram · 2 diagrams in section
