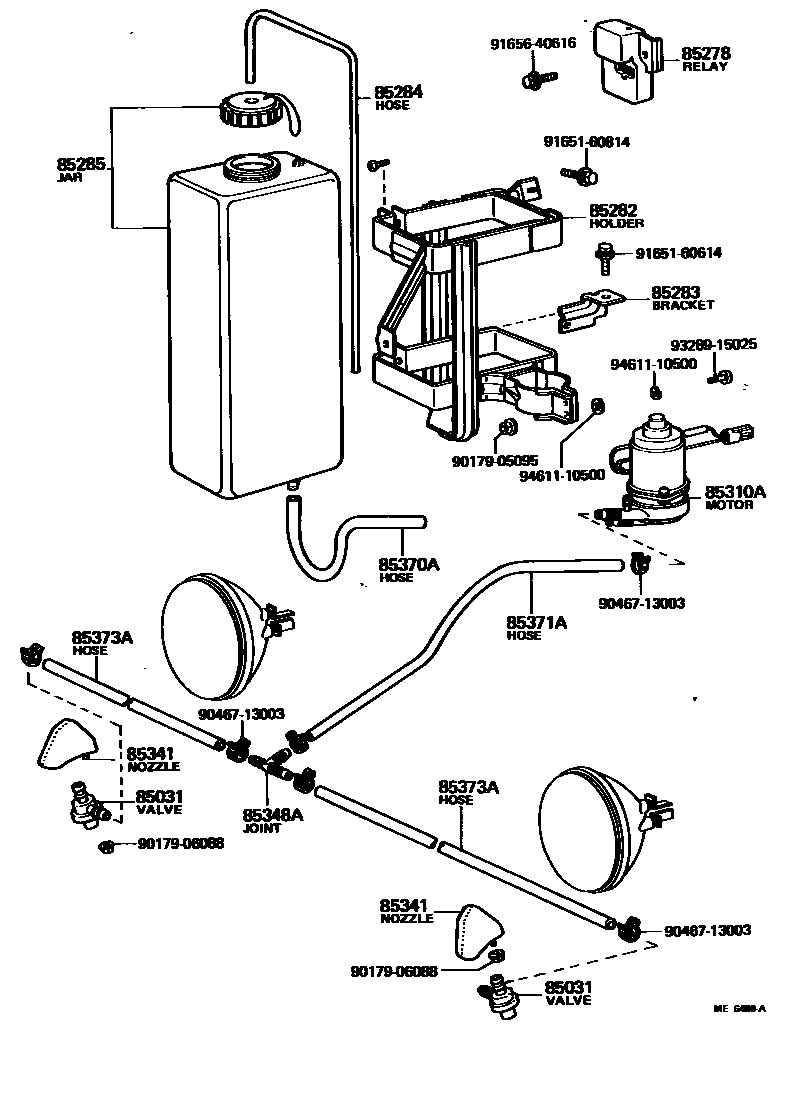

HEADLAMP CLEANER

0001 1 0002 1 0003 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-14030iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

main85031-14060iRA40,TA40..LHD..EUR197908-198107

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iRA40,TA40..LHD..EUR197908-198107

main85276-22010iRA40,TA40..LHD..EUR197708-197908

85282HOLDER ASSY, HEADLAMP CLEANER WASHER JAR

main85361-14080iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

main85361-14130iRA40,TA40..LHD..EUR197908-198107

UPR

main85361-14140iRA40,TA40..LHD..EUR197908-198107

LWR

sub85361-20140

85283BRACKET, HEADLAMP CLEANER WASHER

main85036-14090iRA40,TA40..LHD..GT..EUG197908-198107

main85361-14050iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

85284HOSE ASSY, HEADLAMP CLEANER WASHER

main90446-07002iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

L=500

sub90446-07004

main90446-07004iRA40,TA40..LHD..GT197801-198107

L=1300

85285JAR, HEADLAMP CLEANER WASHER

main85330-12060iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

main85330-14190iRA40,TA40..LHD..GT..EUG197908-198107

main85330-14260iRA40,TA40..LHD..(LT,ST,XT)..EUR197908-198107

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iRA40,TA40..LHD..EUR197908-198107

main85310-12050iRA40,TA40..LHD..EUR197708-197908

main85310-20100iRA40,TA40..LHD..GT..EUG197908-198107

WINDSHIELD WASHER

sub85310-22080

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-14070iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

main85035-14160iRA40,TA40..LHD..EUR197908-198107

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iRA40,TA40..LHD..EUR197708-198107

85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1

main85271-14040iRA40,TA40..LHD..GT..EUG197801-197908

main85271-14050iRA40,TA40..LHD..EUR197908-198107

main85343-14010iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197908

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-14100iRA40,TA40..LHD..EUR197908-198107

main85343-12030iRA40,TA40..LHD..EUR197801-197908

L=460

main90445-14036iRA40,TA40..LHD..(LT,ST,XT)..EUR197708-197801

L=640(*H,L=460)

sub85375-22061

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14035iRA40,TA40..LHD..EUR197708-197908

L=280

sub90445-14056

main90445-14037iRA40,TA40..LHD..EUR197708-197908

L=1320(*H,L=940)

sub90445-14072

main90445-14048iRA40,TA40..LHD..EUR197908-198107

L=150

sub90445-14059

main90445-14055iRA40,TA40..LHD..EUR197908-198107

L=60

sub85375-50020

main90445-14061iRA40,TA40..LHD..EUR197908-198107

L=1320(*H,L=990)

sub90445-14072

9017905095

main90179-05095

9017906088

main90179-06088

9046713003

main90467-13003

9165160614

main91651-60614

9165160814

main91651-60814

9165640616

main91656-40616

9328915025

main93289-15025

9461110500

main94611-10500

20 parts on this diagram · 3 diagrams in section
