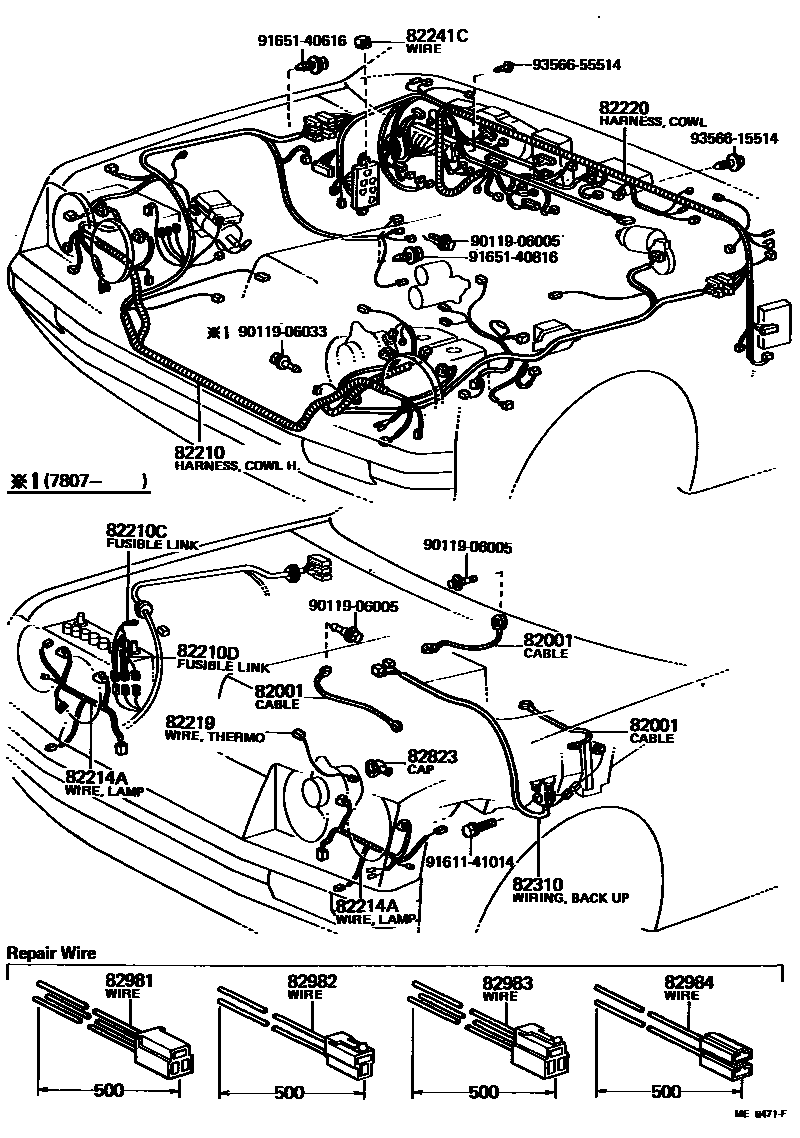

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

82001CABLE, BOND, NO.1

main90980-07021iTA40..GT197710-198107

RADIO,L=280

main90980-07062iRA40,TA40..ARL,GEN197708-198107

RADIO,L=260

main90980-07066iRA40..ST,XT197710-198107

RADIO,L=250

main90980-07117iRA40,TA40197708-198107

L=350

main90980-07148iRA40,TA40..ARL,GEN197708-198107

L=260

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-14580iTA40..RHD197708-197802

main82210-14581iTA40..RHD197802-197807

main82210-14582iTA40..RHD197807-197908

main82210-14640iTA40..LHD197708-197802

main82210-14641iTA40..LHD197802-197807

main82210-14642iTA40..LHD197807-197908

main82210-14650iRA40..LHD..(ST,XT)197708-197802

main82210-14651iRA40..LHD..(ST,XT)197802-197807

main82210-14652iRA40..LHD..(ST,XT)197807-197908

main82210-14660iRA40..RHD..(LT,ST,XT)197708-197802

main82210-14661iRA40..RHD..(LT,ST,XT)197802-197807

main82210-14662iRA40..RHD..(LT,ST,XT)197807-197908

main82210-14690iRA40..RHD..GT197708-197802

main82210-14691iRA40..RHD..GT197802-197807

main82210-14692iRA40..RHD..GT197807-197908

main82210-14700iRA40..LHD..GT197708-197802

main82210-14701iRA40..LHD..GT197802-197807

main82210-14702iRA40..LHD..GT197807-197908

main82210-1B100iTA40..RHD197908-198107

main82210-1B110iRA40..RHD..(LT,ST,XT)..(ARL,GEN)197908-198107

main82210-1B120iRA40..RHD..GT197908-198001

main82210-1B130iTA40..LHD197908-198107

main82210-1B150iRA40..LHD..(ST,XT)197908-198107

main82210-1B160iRA40..LHD..GT197908-198107

main82210-1B250iRA40..RHD..(ST,XT)..EUG198001-198107

main82210-1B260iRA40..RHD..GT198001-198107

82210CFUSIBLE LINK

main90982-08059iRA40,TA40..LT197708-197908

main90982-08060iRA40,TA40..GT,ST,XT197708-197908

W/FUSE

main90982-08080iRA40,TA40197908-198107

82210DFUSIBLE LINK

main90982-08061iRA40,TA40197708-197905

main90982-08119iRA40,TA40197905-197908

82214AWIRE, LAMP

main82214-14100iRA40,TA40197908-198107

HEADLAMP=SEMI-SEALED BEAM

main82214-14130iRA40,TA40..GEN197908-198107

HEADLAMP=SEALED BEAM

82219WIRE, THERMO SENSOR

main82219-22020iRA40..LHD..(ST,XT)197708-198107

82220HARNESS ASSY, WIRING COWL

main82220-14800iRA40,TA40..LHD..GEN197708-197802

main82220-14801iRA40,TA40..LHD..GEN197802-197808

main82220-14802iRA40,TA40..LHD..EUG197808-197905

sub82220-14803

main82220-14803iRA40,TA40..LHD..GEN197905-197908

main82220-14810iRA40,TA40..LHD..EUR197708-197802

W/HEADLAMP CLEANER

main82220-14811iRA40,TA40..LHD..(LT,ST,XT)..EUR197802-197808

W/HEADLAMP CLEANER

main82220-14812iRA40,TA40..LHD..(LT,ST,XT)..EUR197808-197905

W/HEADLAMP CLEANER

sub82220-14813

main82220-14813iRA40,TA40..LHD..(LT,ST,XT)..EUR197905-197908

W/HEADLAMP CLEANER

main82220-14830iRA40,TA40..RHD197708-197802

main82220-14831iRA40,TA40..RHD197802-197808

main82220-14832iRA40,TA40..RHD197808-197905

sub82220-14833

main82220-14833iRA40,TA40..RHD197905-197908

main82220-1B300iRA40,TA40..RHD..(LT,ST,XT)197908-198107

main82220-1B310iRA40,TA40..LHD..ST..EUG197908-198008

main82220-1B311iRA40,TA40..LHD..ST..GEN198008-198107

main82220-1B320iRA40,TA40..LHD..(GT,XT)..GEN197908-198008

W/HEADLAMP CLEANER

main82220-1B321iRA40,TA40..LHD..(GT,XT)..GEN198008-198107

W/HEADLAMP CLEANER

main82220-1B490iRA40..RHD..(ST,XT)..EUG198001-198107

82241CWIRE, RELAY

main82241-14010iTA40..(LT,ST)..GEN197908-198107

main82241-22060iTA40..(LT,ST)..GEN197802-197908

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-14170iRA40,TA40..MTM197708-197908

main82310-14171iRA40,TA40..MTM197908-198107

82823CAP, TERMINAL, NO.1

main82823-22020iRA40,TA40197708-198107

ALTERNATOR

sub82823-12020

82981WIRE, HEADLAMP REPAIR

main82981-22010iRA40,TA40197908-198107

82982WIRE, CLEARANCE LAMP REPAIR

main82983-22010iRA40,TA40197908-198107

82983WIRE, FRONT TURN SIGNAL LAMP REPAIR

main82983-14010iRA40,TA40197908-198107

82984WIRE, HORN REPAIR

main82984-22010iRA40,TA40197908-198107

9011906005

main90119-06005

9011906033

main90119-06033

9161141014

main91611-41014

9165140616

main91651-40616

9165140816

main91651-40816

9356615514

main93566-15514

9356655514

main93566-55514

21 parts on this diagram · 5 diagrams in section
