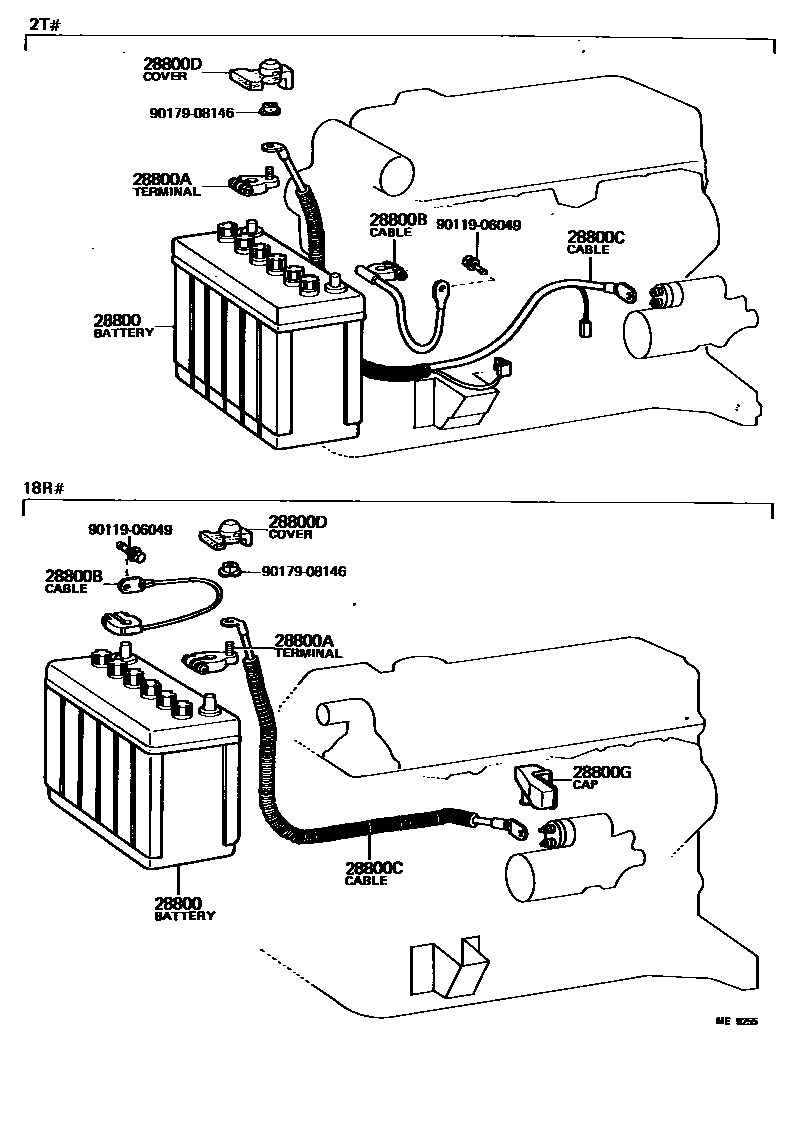

BATTERY & BATTERY CABLE

28800BATTERY

main28800-26040i18R,18RG,2T#..RA40,TA40..GEN197708-198107

34B19L,NS40ZAL

sub28800-26050

main28800-30131i18R#,2T#..RA40,TA40..EUR,GEN197708-198107

55D26R,N50ZL

sub28800-73010

main28800-31031i18RC..RA40..ARL;18R,18RG,2T#..RA40,TA40197708-198107

32C24L,N40L

sub28800-31021

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i18R,18RG,2T#..RA40,TA40..GEN197708-198107

NS40ZAL

sub90982-05028

main90982-05005i18R#,2T#..RA40,TA40197708-198107

N40L & N50Z

sub90982-05030

28800BCABLE, BATTERY TO GROUND

main90982-02135i18R,18RG,2T#..RA40,TA40..GEN197708-198107

NS40ZAL

sub90982-02222

main90982-02136i18R#,2T#..RA40,TA40197708-198107

N40L & N50ZL

sub90982-02224

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-14070i2T#..TA40197708-198008

main82021-14070i2T#..TA40198008-198107

STARTER=12V 0.8KW

main82021-14081i2T#..TA40198008-198107

STARTER=12V 1.0KW

main90982-01223i18R#..RA40197708-198107

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-14020i18R#,2T#..RA40,TA40197708-198103

main82821-22100i18R#,2T#..RA40,TA40198103-198107

28800GCAP, TERMINAL(FOR STARTER)

main82823-14030i18R#..RA40197708-198107

9011906049

main90119-06049

9017908146

main90179-08146

8 parts on this diagram · 1 diagram in section
