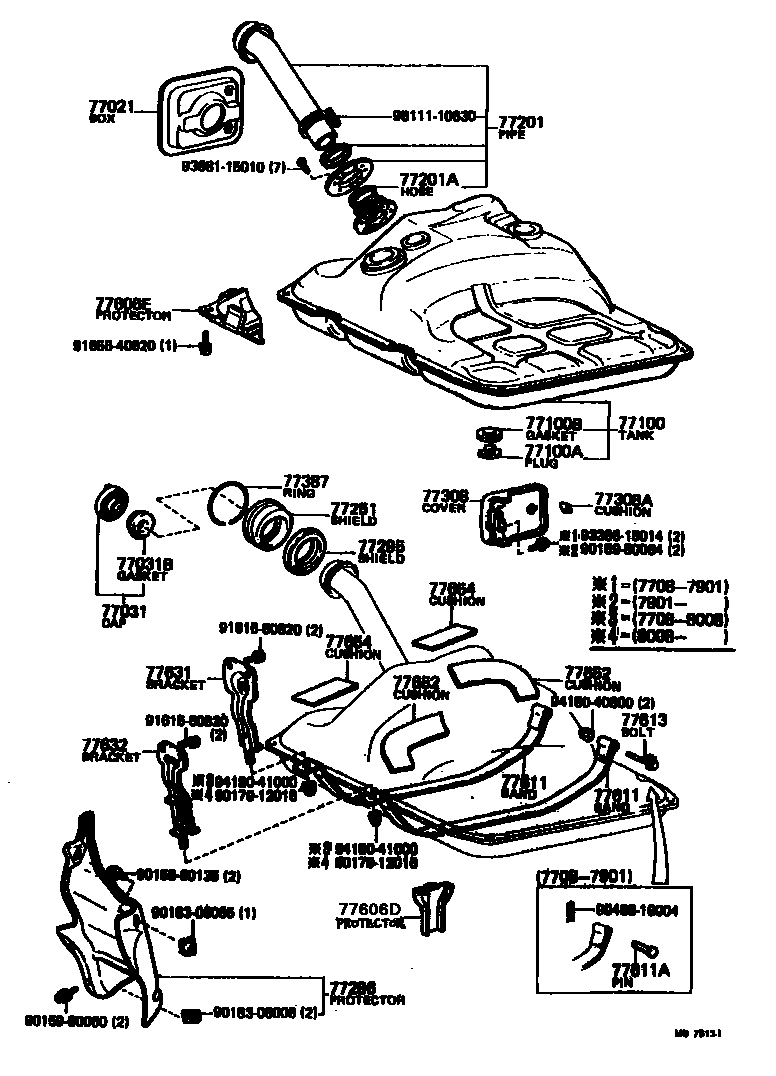

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77021BOX ASSY, FUEL TANK INLET

main61709-14020iRA40,TA40..CP¥2,310197708-198107

main61709-14030iRA40,TA40..LB197708-198107

77031CAP ASSY, FUEL TANK

main77310-12090iRA40,TA40¥2,320197911-198107

sub77310-12100¥2,320

main77310-14070iRA40,TA40¥2,320197708-197911

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iRA40,TA40¥310197708-198107

77100TANK ASSY, FUEL

main77001-14925iRA40,TA40¥48,200197708-198106

sub77001-19095¥50,800

sub77012-14022¥2,110

main77001-14929iRA40,TA40¥50,500198106-198107

sub77001-19095¥50,800

77100APLUG(FOR FUEL TANK)

main90341-24036iRA40,TA40¥890197708-198107

77100BGASKET(FOR FUEL TANK)

main90430-24047iRA40,TA40¥250197708-198107

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14160iRA40,TA40¥8,700197708-197911

sub77201-14161¥8,100

sub77310-12100¥2,320

main77201-14161iRA40,TA40¥8,100197911-198107

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iRA40,TA40¥11,000197708-198107

77251SHIELD, FUEL TANK, INLET, NO.1

main77291-14020iRA40,TA40¥850197708-198107

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-14030iRA40,TA40197708-198107

77295SHIELD, FUEL FILLER PIPE

main77292-14010iRA40,TA40¥580197708-198107

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14020iRA40,TA40197708-198107

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08003iRA40,TA40¥90197708-198107

77387RING, FUEL INLET BOX

main77391-14010iRA40,TA40¥250197708-198107

77606DPROTECTOR, FUEL TANK, NO.3

main77643-14020iRA40,TA40198008-198107

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14070iRA40,TA40198008-198107

77611BAND, FUEL TANK

main77601-14040iRA40,TA40197708-198107

sub77601-14060¥2,350

77611APIN (FOR FUEL TANK BAND)

main90240-08150iRA40,TA40¥260197708-197901

sub90240-08060¥360

77613BOLT, FUEL TANK BAND SET

main77645-14030iRA40,TA40¥320197902-198107

main91121-50875iRA40,TA40¥210197901-197902

77631BRACKET, FUEL TANK, NO.1

main77613-14020iRA40,TA40¥1,530197708-198008

sub77613-14021¥1,470

sub90179-12016¥140

main77613-14021iRA40,TA40¥1,470198008-198107

sub77613-14022¥1,470

77632BRACKET, FUEL TANK, NO.2

main77614-14020iRA40,TA40¥1,920197708-198008

sub77614-14021¥1,820

sub90179-12016¥140

main77614-14021iRA40,TA40¥1,820198008-198107

77652CUSHION, FUEL TANK, NO.1

main77651-14050iRA40,TA40¥700197708-198008

sub77652-20010¥650

77654CUSHION, FUEL TANK, NO.2

main77652-14060iRA40,TA40197708-198107

120X70

main77652-20010iRA40,TA40¥650198008-198107

120X120

9015950064

main90159-50064¥120

9015960060

main90159-60060¥190

9015960135

main90159-60135¥330

9017912016

main90179-12016¥140

9018306006

main90183-06006¥270

9018306065

main90183-06065¥110

9046816004

main90468-16004¥60

9161560820

main91615-60820¥140

9165540620

main91655-40620¥120

9338115010

main93381-15010¥60

9338615014

main93386-15014¥130

9418040800

main94180-40800¥150

9418041000

main94180-41000¥100

9611110630

main96111-10630¥230

37 parts on this diagram · 5 diagrams in section
