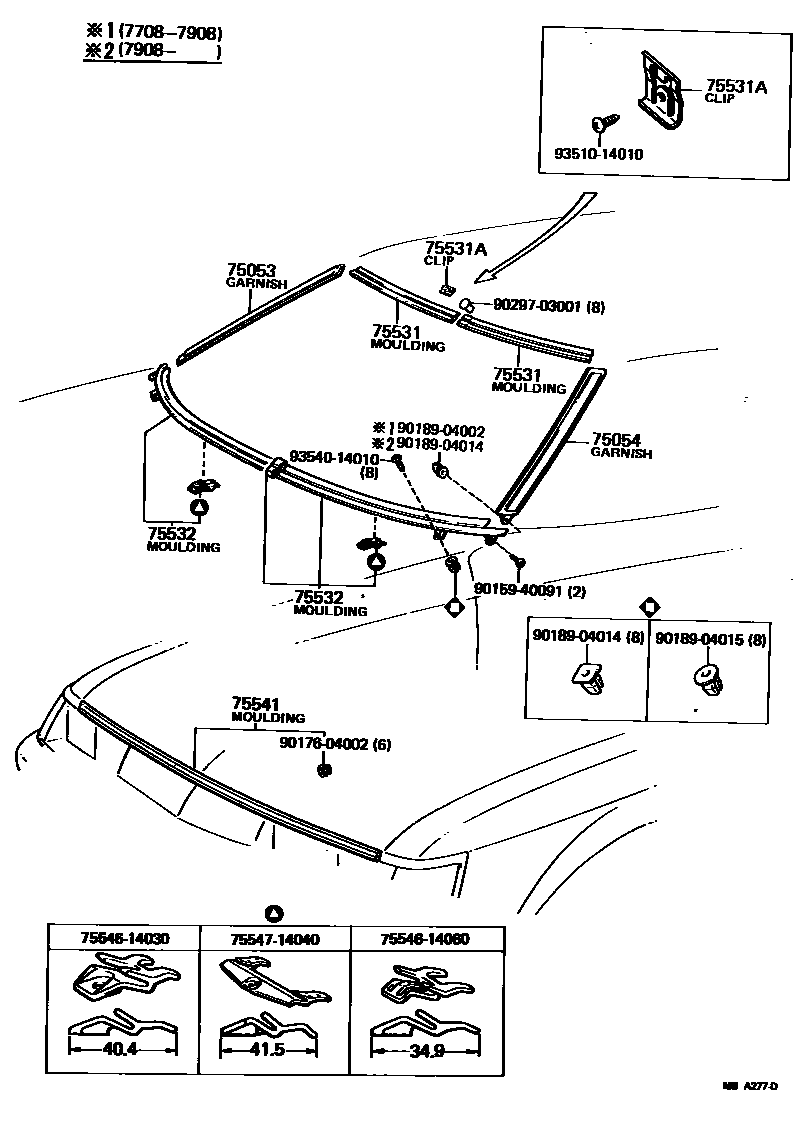

FRONT MOULDING

75053GARNISH SUB-ASSY, FRONT PILLAR, OUTER RH

main75053-14010iRA40,TA40197708-198107

75054GARNISH SUB-ASSY, FRONT PILLAR, OUTER LH

main75054-14010iRA40,TA40197708-198107

75531MOULDING, WINDSHIELD, OUTER UPPER

main75503-14010iRA40,TA40197708-197709

RH

sub75503-19015

main75503-14020iRA40,TA40197709-198107

LH

main75531-14090iRA40,TA40197709-198107

RH

main75532-14030iRA40,TA40197708-197709

LH

sub75503-14020

sub75503-19015

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-14050iRA40,TA40197906-198107

TEE STUD

main75545-30021iRA40,TA40197708-197906

TEE STUD

main75545-30030iRA40,TA40197708-198107

SCREW

75532MOULDING, WINDSHIELD, LOWER

main75504-14010iRA40,TA40197709-198107

RH

sub75504-14050

main75504-14020iRA40,TA40197708-197709

RH

sub75504-19015

main75509-14010iRA40,TA40197708-197709

LH

sub75509-14030

main75509-14030iRA40,TA40197709-198107

LH

sub75504-14020

75541MOULDING, HOOD, FRONT

main75770-19155iRA40,TA40197908-198107

7554614030CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-14030

7554614060CLIP, WINDSHIELD OUTSIDE MOULDING

main75546-14060

7554714040MOULDING, FRONT FENDER, RH

main75547-14040

9015940091

main90159-40091

9017604002

main90176-04002

9018904002

main90189-04002

9018904014

main90189-04014

9018904015

main90189-04015

9029703001

main90297-03001

9351014010

main93510-14010

9354014010

main93540-14010

17 parts on this diagram · 1 diagram in section
