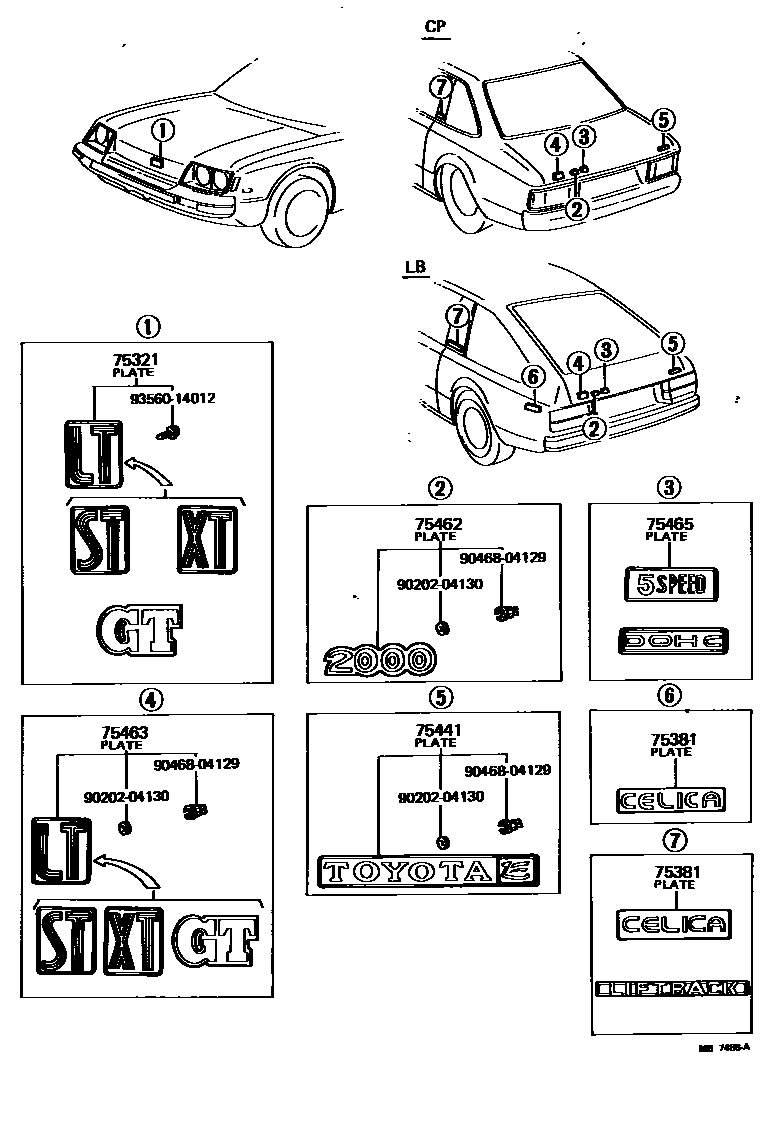

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-19345iRA40..ARL197708-197808

LT

main75321-19355iRA40,TA40..ST..(EUR,GEN)197708-197808

ST

main75321-19357iRA40,TA40..ST..GEN198008-198107

ST

main75321-19365iRA40..XT197708-197808

XT

main75321-19415iRA40,TA40..GT197708-197808

GT

main75321-19515iRA40,TA40197808-197908

TOYOTA

main75321-19516iRA40,TA40197908-198107

TOYOTA

75381PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)

main75381-14100iRA40,TA40..CP197805-198107

CELICA

main75381-14110iRA40,TA40..LB197808-197908

CELICA,CTR PILLAR

main75381-14120iRA40,TA40..LB197708-197808

CELICA,QUARTER PANEL

main75442-14080iRA40,TA40..LB197805-197808

LIFT BACK

75441PLATE, REAR NAME, NO.1

main75441-14120iRA40,TA40197808-197808

TOYOTA

main75442-14150iRA40,TA40197708-197808

TOYOTA

75462PLATE, REAR NAME, NO.3 (DISPLACEMENT)

main75443-14130iRA40197708-198107

2000

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75441-14080iRA40..ARL197708-198107

LT

main75441-14090iRA40,TA40..ST197708-198107

ST

main75441-14100iRA40..XT197708-198107

XT

main75441-14110iRA40,TA40..GT197708-197908

GT

main75441-14111iRA40,TA40..GT197908-198107

GT

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75044-14010iRA40,TA40..GT197708-198107

DOHC

sub75445-14071

main75402-14010iRA40,TA40..5F..(LT,ST,XT)..(EUR,GEN)197708-198107

5-SPEED

main75402-14020iRA40..5F..ST..ARL197908-198107

5-SPEED

9020204130

main90202-04130

9046804129

main90468-04129

9356014012

main93560-14012

9 parts on this diagram · 3 diagrams in section
