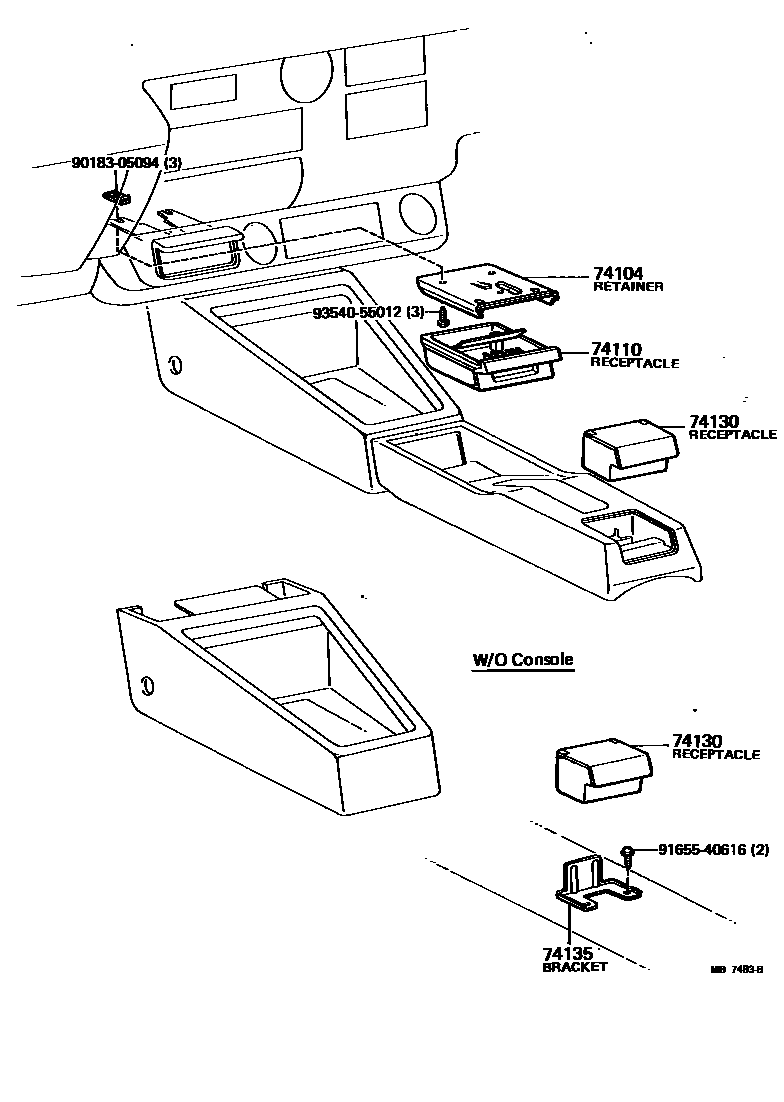

ASH RECEPTACLE

0001 1 0003 1

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-14060iRA40,TA40..LT197708-197811

sub74104-14070

main74104-14070iRA40,TA40..RHD197708-198107

main74104-14090iTA40..LHD..LT197801-197811

sub74104-14100

main74104-14100iRA40,TA40..LHD197801-198107

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74102-14080iRA40,TA40197708-198107

74130RECEPTACLE ASSY, REAR ASH

main74130-12030-01iRA40,TA40197708-197807

BLACK,BLACK,TRIM2#

sub74130-20060

main74130-12030-04iRA40,TA40197708-197807

BLUE,BLUE,TRIM8#

sub74130-20060

main74130-12030-16iRA40,TA40197708-197807

LIGHT BROWN,BROWN,TRIM4#

sub74130-20060

main74130-20060-01iRA40,TA40..LT,ST197807-198107

BLACK,BLACK,TRIM2#

sub74130-16010

sub74130-20060

main74130-20060-04iRA40,TA40..LT,ST197807-198107

BLUE,BLUE,TRIM8#

sub74130-16010

sub74130-20060

main74130-20060-05iRA40,TA40197807-198107

BEIGE,BEIGE,TRIM4#

sub74130-16010

sub74130-20060

74135BRACKET, REAR ASH RECEPTACLE

main74149-14010iRA40,TA40..LT197708-198107

9018305094

main90183-05094

9165540616

main91655-40616

9354055012

main93540-55012

7 parts on this diagram · 2 diagrams in section
