ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-14040-01iRA40,TA40197708-198107

BLACK,BLACK,TRIM2#

main74210-14040-04iRA40,TA40197708-198107

BLUE,BLUE,TRIM8#

main74210-14040-06iRA40,TA40197708-198107

LIGHT BROWN,BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-14040-01iRA40,TA40197708-198107

BLACK,BLACK,TRIM2#

main74220-14040-04iRA40,TA40197708-198107

BLUE,BLUE,TRIM8#

main74220-14040-06iRA40,TA40197708-198107

LIGHT BROWN,BROWN,TRIM4#

74223CAP, DOOR ARMREST, RH

main74223-14010-01iRA40,TA40197708-198107

RH,BLACK,BLACK

sub74223-14010

main74223-14010-04iRA40,TA40197708-198107

RH,BLUE,BLUE

sub74223-14010

main74223-14010-06iRA40,TA40197708-198107

RH,LIGHT BROWN,BROWN

sub74223-14010

74224CAP, DOOR ARMREST, LH

main74224-14010-01iRA40,TA40197708-198107

LH,BLACK,BLACK

sub74224-14010

main74224-14010-04iRA40,TA40197708-198107

LH,BLUE,BLUE

sub74224-14010

main74224-14010-06iRA40,TA40197708-198107

LH,LIGHT BROWN,BROWN

sub74224-14010

74310VISOR ASSY, RH

main74310-14060-03iTA40..CP..RHD..(LT,ST)197708-197808

GRAY,GRAY,TRIM2#

sub74310-14061

main74310-14060-04iTA40..CP..RHD..(LT,ST)197708-197808

BLUE,BLUE,TRIM8#

sub74310-14061

main74310-14060-06iTA40..CP..RHD..(LT,ST)197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14061

main74310-14061-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

GRAY,GRAY,TRIM2#

main74310-14061-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

BLUE,BLUE,TRIM8#

main74310-14061-06iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

LIGHT BROWN,BROWN,TRIM4#

main74310-14090-03iRA40..RHD..XT197708-198107

GRAY,GRAY,TRIM2#

main74310-14090-04iRA40..RHD..XT197708-198107

BLUE,BLUE,TRIM8#

main74310-14090-06iRA40..RHD..XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

main74310-14100-03iRA40,TA40..RHD..GT197708-197808

GRAY,GRAY,TRIM2#

sub74310-14061

main74310-14100-04iRA40,TA40..RHD..GT197708-197808

BLUE,BLUE,TRIM8#

sub74310-14061

main74310-14100-06iRA40,TA40..RHD..GT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14061

main74310-14110-03iRA40..LT197708-197808

GRAY,GRAY,TRIM2#

sub74310-14111

main74310-14110-04iRA40..LT197708-197808

BLUE,BLUE,TRIM8#

sub74310-14111

main74310-14110-06iRA40..LT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14111

main74310-14111-03iRA40..ARL197808-198107

GRAY,GRAY,TRIM2#

main74310-14111-04iRA40..ARL197808-198107

BLUE,BLUE,TRIM8#

main74310-14111-06iRA40..ARL197808-198107

LIGHT BROWN,BROWN,TRIM4#

main74310-14120-03iRA40..ST..ARL197708-197808

GRAY,GRAY,TRIM2#

sub74310-14111

main74310-14120-04iRA40..ST..ARL197708-197808

BLUE,BLUE,TRIM8#

sub74310-14111

main74310-14120-06iRA40..ST..ARL197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14111

main74310-14130-03iRA40..LHD..XT197808-198107

W/MIRROR,GRAY,GRAY,TRIM2#

main74310-14130-04iRA40..LHD..XT197808-198107

W/MIRROR,BLUE,BLUE,TRIM8#

main74310-14130-06iRA40..LHD..XT197808-198107

W/MIRROR,LIGHT BROWN,BROWN,TRIM4#

main74310-14140-03iRA40,TA40..LHD..GT197808-197808

GRAY,TRIM2#

main74310-14140-04iRA40,TA40..LHD..GT197808-197808

BLUE,TRIM8#

main74310-14140-06iRA40,TA40..LHD..GT197808-197808

LIGHT BROWN,TRIM4#

main74310-14141-03iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

W/MIRROR,GRAY,GRAY,TRIM2#

main74310-14141-04iRA40,TA40..LHD..(GT,ST)..GEN197807-198107

W/MIRROR,BLUE,BLUE,TRIM8#

main74310-14141-06iRA40,TA40..LHD..(GT,ST)..GEN197808-198107

W/MIRROR,L.BROWN,BROWN,TRIM4#

main74320-14080-03iRA40,TA40..CP..LHD..(LT,ST)197708-197808

GRAY,GRAY,TRIM2#

sub74320-14081

main74320-14080-04iRA40,TA40..CP..LHD..(LT,ST)197708-197808

BLUE,BLUE,TRIM8#

sub74320-14081

main74320-14080-06iRA40,TA40..CP..LHD..(LT,ST)197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14081

main74320-14081-03iRA40,TA40..LHD..(LT,ST)197808-198107

GRAY,GRAY,TRIM2#

main74320-14081-04iRA40,TA40..LHD..(LT,ST)197808-198107

BLUE,BLUE,TRIM8#

main74320-14081-06iRA40,TA40..LHD..(LT,ST)197808-198107

LIGHT BROWN,BROWN,TRIM4#

main74320-14120-03iRA40..LHD..XT197708-197808

GRAY,GRAY,TRIM2#

main74320-14120-04iRA40..LHD..XT197708-197808

BLUE,BLUE,TRIM8#

main74320-14120-06iRA40..LHD..XT197708-197808

LIGHT BROWN,BROWN,TRIM4#

main74320-14140-03iTA40..CP..LHD..GT197708-197808

GRAY,GRAY,TRIM2#

sub74320-14081

main74320-14140-04iRA40,TA40..LB..LHD..(GT,ST)197708-197808

BLUE,BLUE,TRIM8#

sub74320-14081

main74320-14140-06iRA40,TA40..LB..LHD..(GT,ST)197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14081

74320VISOR ASSY, LH

main74320-14080-03iTA40..CP..RHD..(LT,ST)197708-197808

GRAY,GRAY,TRIM2#

sub74320-14081

main74320-14080-04iTA40..CP..RHD..(LT,ST)197708-197808

BLUE,BLUE,TRIM8#

sub74320-14081

main74320-14080-06iTA40..CP..RHD..(LT,ST)197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14081

main74320-14081-03iRA40,TA40..RHD..(LT,ST)..GEN197808-198107

GRAY,GRAY,TRIM2#

main74320-14081-04iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197808-198107

BLUE,BLUE,TRIM8#

main74320-14081-06iRA40,TA40..RHD..(LT,ST)..GEN197808-198107

LIGHT BROWN,BROWN,TRIM4#

main74320-14090-03iRA40,TA40..CP..LHD..(LT,ST)197708-197808

GRAY,GRAY,TRIM2#

sub74310-14061

sub74320-14091

main74320-14090-04iRA40,TA40..CP..LHD..(LT,ST)197708-197808

BLUE,BLUE,TRIM8#

sub74310-14061

sub74320-14091

main74320-14090-06iRA40,TA40..CP..LHD..(LT,ST)197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14061

sub74320-14091

main74320-14091-03iRA40,TA40..LHD..(GT,LT,ST)197808-198107

GRAY,GRAY,TRIM2#

sub74310-14061

main74320-14091-04iRA40,TA40..LHD..(GT,LT,ST)197808-198107

BLUE,BLUE,TRIM8#

sub74310-14061

main74320-14091-06iRA40,TA40..LHD..(GT,LT,ST)197808-198107

LIGHT BROWN,BROWN,TRIM4#

sub74310-14061

main74320-14120-03iRA40..RHD..XT197708-197808

GRAY,GRAY,TRIM2#

main74320-14120-04iRA40..RHD..XT197708-197808

BLUE,BLUE,TRIM8#

main74320-14120-06iRA40..RHD..XT197708-197808

LIGHT BROWN,BROWN,TRIM4#

main74320-14130-03iRA40..LHD..XT197708-198107

GRAY,GRAY,TRIM2#

sub74310-14090

main74320-14130-04iRA40..LHD..XT197708-198107

BLUE,BLUE,TRIM8#

sub74310-14090

main74320-14130-06iRA40..LHD..XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub74310-14090

main74320-14140-03iRA40,TA40..RHD..GT197708-197808

GRAY,GRAY,TRIM2#

sub74320-14081

main74320-14140-04iRA40,TA40..RHD..GT197708-197808

BLUE,BLUE,TRIM8#

sub74320-14081

main74320-14140-06iRA40,TA40..RHD..GT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14081

main74320-14150-03iTA40..CP..LHD..GT197708-197808

GRAY,GRAY,TRIM2#

sub74310-14061

sub74320-14091

main74320-14150-04iTA40..CP..LHD..GT197708-197808

BLUE,BLUE,TRIM8#

sub74310-14061

sub74320-14091

main74320-14150-06iTA40..CP..LHD..GT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74310-14061

sub74320-14091

main74320-14160-03iRA40..LT197708-197808

GRAY,GRAY,TRIM2#

sub74320-14161

main74320-14160-04iRA40..LT197708-197808

BLUE,BLUE,TRIM8#

sub74320-14161

main74320-14160-06iRA40..LT197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14161

main74320-14161-03iRA40..ARL197808-198107

GRAY,GRAY,TRIM2#

main74320-14161-04iRA40..ARL197808-198107

BLUE,BLUE,TRIM8#

main74320-14161-06iRA40..ARL197808-198107

LIGHT BROWN,BROWN,TRIM4#

main74320-14170-03iRA40..ST..ARL197708-197808

GRAY,GRAY,TRIM2#

sub74320-14161

main74320-14170-04iRA40..ST..ARL197708-197808

BLUE,BLUE,TRIM8#

sub74320-14161

main74320-14170-06iRA40..ST..ARL197708-197808

LIGHT BROWN,BROWN,TRIM4#

sub74320-14161

main74320-14200-03iRA40..RHD..XT197808-198107

GRAY,GRAY,TRIM2#

main74320-14200-04iRA40..RHD..XT197808-198107

W/MIRROR,BLUE,BLUE,TRIM8#

main74320-14200-06iRA40..RHD..XT197808-198107

W/MIRROR,LIGHT BROWN,BROWN,TRIM4#

main74320-14210-03iRA40,TA40..RHD..GT197808-197808

GRAY,TRIM2#

main74320-14210-04iRA40,TA40..RHD..GT197808-197808

BLUE,TRIM8#

main74320-14210-06iRA40,TA40..RHD..GT197808-197808

LIGHT BROWN,TRIM4#

main74320-14211-03iRA40,TA40..RHD..(GT,ST)..GEN197808-198107

W/MIRROR,GRAY,GRAY,TRIM2#

main74320-14211-04iRA40,TA40..RHD..(GT,ST)..EUG197808-198107

W/MIRROR,BLUE,BLUE,TRIM8#

main74320-14211-06iRA40,TA40..RHD..(GT,ST)..EUG197808-198107

W/MIRROR,LIGHT BROWN,BROWN,TRIM4#

74348HOLDER, VISOR

main74348-14020-03iRA40,TA40197708-198107

GRAY,GRAY,TRIM2#

sub74348-14020

main74348-14020-04iRA40,TA40197708-198107

BLUE,BLUE,TRIM8#

sub74348-14020

main74348-14020-06iRA40,TA40197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub74348-14020

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-22020-03iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,GRAY,GRAY,TRIM2#

sub74603-22020

main74603-22020-04iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BLUE,BLUE,TRIM8#

sub74603-22020

main74603-22020-05iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74603-22020

main74610-14020-03iRA40,TA40..(GT,ST,XT)..GEN197708-197810

GRAY,GRAY,TRIM2#

sub74610-20030

main74610-14020-04iRA40,TA40..(GT,ST,XT)..GEN197708-197810

BLUE,BLUE,TRIM8#

sub74610-20030

main74610-14020-06iRA40..SDN197708-197810

LIGHT BROWN,BROWN,TRIM4#

sub74610-20030

main74610-20030-03iRA40,TA40..GT,ST,XT197810-198008

GRAY,GRAY,TRIM2#

sub74610-20030

main74610-20030-04iRA40,TA40..GT,ST,XT197810-198107

BLUE,BLUE,TRIM8#

sub74610-20030

main74610-20030-05iRA40,TA40..GT,ST,XT197810-198107

BEIGE,BEIGE,TRIM4#

sub74610-20030

main74610-20030-08iRA40,TA40..GT,ST,XT198008-198107

IVORY,IVORY,TRIM0#

sub74610-20030

74613PLUG, ASSIST GRIP

main74617-14010-03iRA40,TA40..GT,ST,XT197708-198107

GRAY,GRAY,TRIM2#

sub74617-14010

main74617-14010-04iRA40,TA40..GT,ST,XT197708-198107

BLUE,BLUE,TRIM8#

sub74617-14010

main74617-14010-06iRA40,TA40..GT,ST,XT197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub74617-14010

main74617-22010-03iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,GRAY,GRAY,TRIM2#

sub74617-22010

main74617-22010-04iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BLUE,BLUE,TRIM8#

sub74617-22010

main74617-22010-05iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74617-22010

74631HOOK, COAT, A

main74631-14010-03iRA40,TA40..GT,ST,XT197802-198107

GRAY,GRAY,TRIM2#

sub74631-14010

sub74631-20040

main74631-14010-04iRA40,TA40..GT,ST,XT197802-198107

BLUE,BLUE,TRIM8#

sub74631-14010

sub74631-20040

main74631-14010-06iRA40,TA40..GT,ST,XT197802-198107

LIGHT BROWN,BROWN,TRIM4#

sub74631-14010

sub74631-20040

74671SUPPORT, ASSIST GRIP

main74671-22010-03iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,GRAY,GRAY,TRIM2#

sub74671-22010

main74671-22010-04iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BLUE,BLUE,TRIM8#

sub74671-22010

main74671-22010-05iRA40,TA40..LHD..(GT,ST,XT)..EUG197708-198107

WEST GERMANY SPEC,BEIGE,BEIGE,TRIM4#

sub74671-22010

9015960085

main90159-60085

9016250001

main90162-50001

9018906018

main90189-06018

9354016030

main93540-16030

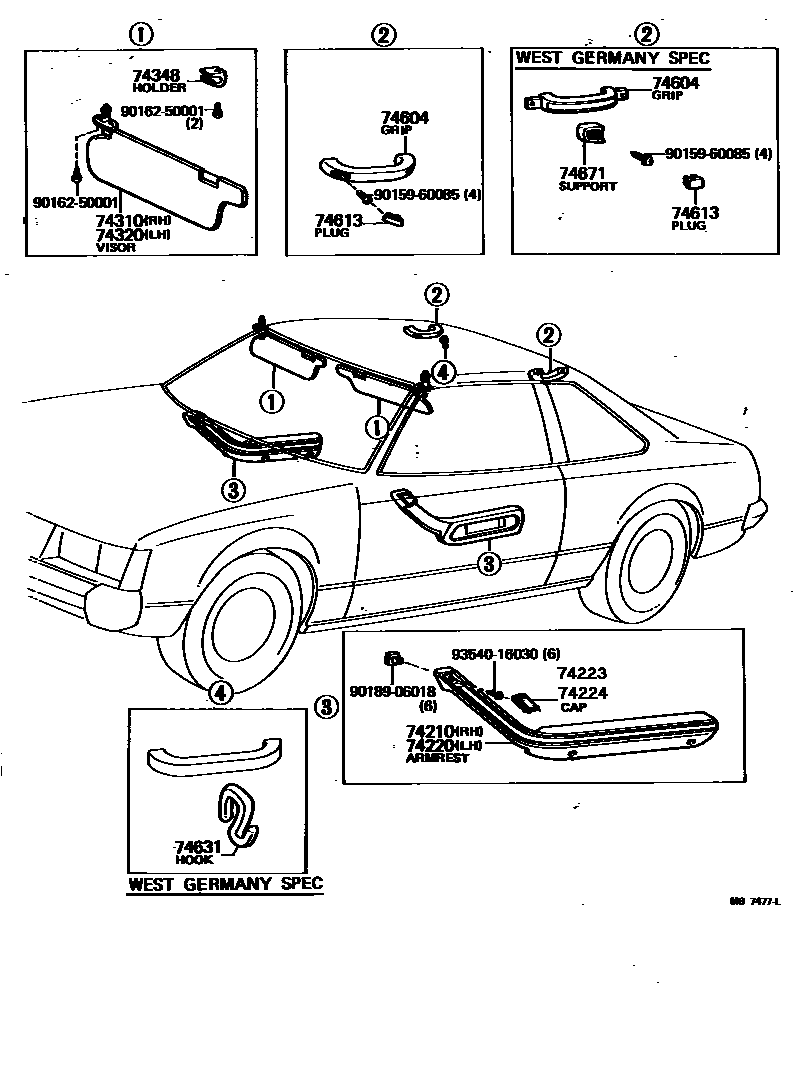

15 parts on this diagram · 1 diagram in section
