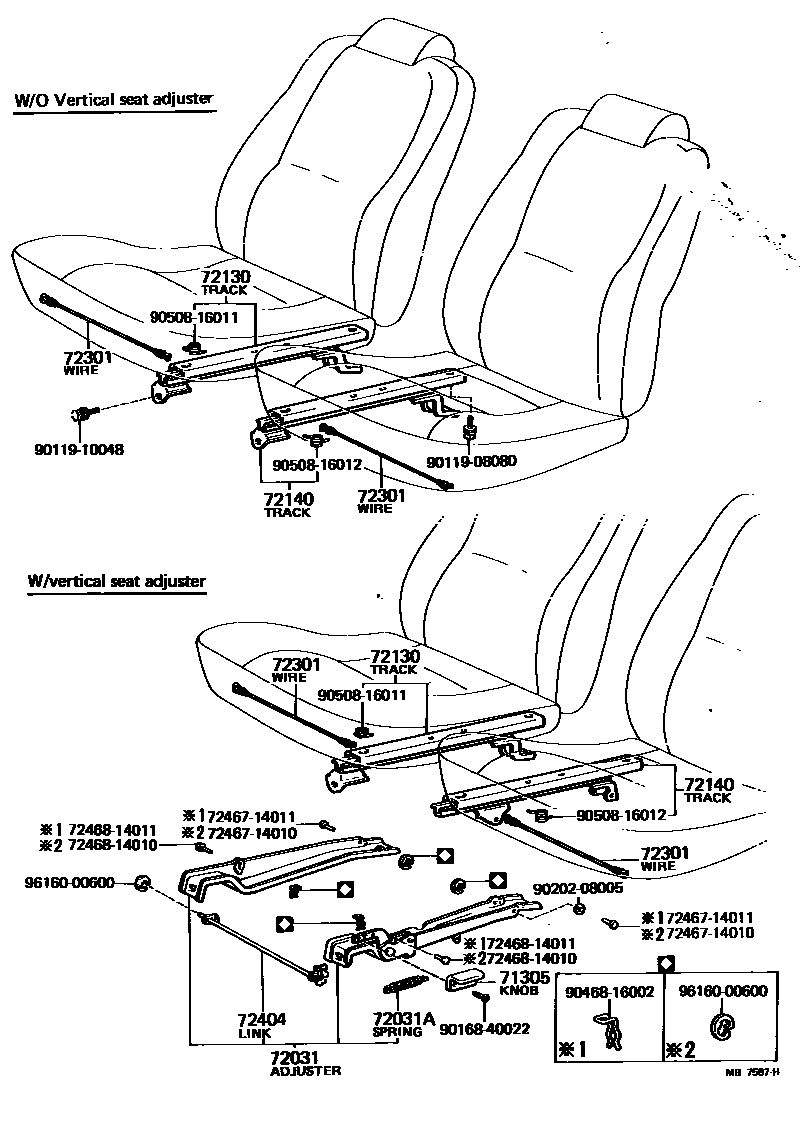

SEAT TRUCK

0001 1 0002 1

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-01iRA40,TA40..RHD..(GT,XT)197708-198107

BLACK,BLACK,TRIM2#

sub72457-14010

main72457-14010-04iRA40,TA40..RHD..(GT,XT)197708-198107

BLUE,BLUE,TRIM8#

sub72457-14010

main72457-14010-06iRA40,TA40..RHD..ST..EUG197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub72457-14010

main72457-14020-01iRA40,TA40..LHD..(LT,ST)..EUR197708-198107

BLACK,BLACK,TRIM2#

sub72457-14020

main72457-14020-04iRA40,TA40..LHD..(GT,XT)197708-198107

BLUE,BLUE,TRIM8#

sub72457-14020

main72457-14020-06iRA40,TA40..LHD197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub72457-14020

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-14020iRA40,TA40..RHD..(GT,XT)197708-197808

sub72310-14021

sub71821-14011

main72310-14021iRA40,TA40..RHD..EUG197808-197902

sub72310-14022

main72310-14022iRA40,TA40..RHD..EUG197902-198107

main72310-14030iRA40,TA40..LHD..(GT,XT)197708-197808

sub72310-14031

sub71822-14011

sub71822-14021

main72310-14031iRA40,TA40..LHD..EUR197808-197902

sub72310-14032

main72310-14032iRA40,TA40..LHD..EUR197902-198107

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-16015iRA40,TA40..EUR197708-198107

72130TRACK ASSY, RH SEAT, INNER

main72130-14100iRA40,TA40..LHD197708-197808

main72130-14110iRA40,TA40..RHD..(LT,ST)197708-197808

main72130-14120iRA40,TA40..RHD..(GT,XT)197708-197808

main72130-14131iRA40,TA40..LHD197808-197908

main72130-14140iRA40,TA40..RHD..(LT,ST)197808-197908

main72130-14150iRA40,TA40..RHD..EUG197808-197908

main72130-14190iRA40,TA40..RHD..(LT,ST)197908-198107

sub72130-14210

main72130-14200iRA40,TA40..RHD..EUG197908-198107

W/VERTICAL ADJUSTER

main72130-14210iRA40,TA40..LHD197908-198107

72140TRACK ASSY, LH SEAT, INNER

main72140-14110iRA40,TA40..RHD197708-197808

main72140-14120iRA40,TA40..LHD..(LT,ST)197708-197808

main72140-14150iRA40,TA40..LHD..(GT,XT)197708-197808

main72140-14170iRA40..LHD..ST..GEN;RA40..LHD..ST..EUG;TA40..LHD..(LT,ST)197808-197908

main72140-14180iRA40,TA40..LHD..EUR197808-197908

main72140-14190iRA40,TA40..RHD197808-197908

main72140-14230iRA40,TA40..LHD..(LT,ST)197908-198107

sub72140-14250

main72140-14240iRA40,TA40..LHD..EUR197908-198107

W/VERTICAL ADJUSTER

main72140-14250iRA40,TA40..RHD197908-198107

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-14020iRA40,TA40197708-197908

main72301-14040iRA40,TA40..GT,XT197908-198107

W/VERTICAL ADJUSTER

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-14011iRA40,TA40..RHD..EUG197905-198107

main72404-14021iRA40,TA40..LHD..EUR197905-198107

7246714010PIN, VERTICAL ADJUSTER

main72467-14010

7246714011PIN, VERTICAL ADJUSTER

main72467-14011

7246814010

main72468-14010

7246814011

main72468-14011

9011908080

main90119-08080

9011910048

main90119-10048

9016840022

main90168-40022

9020208005

main90202-08005

9046816002

main90468-16002

9050816011

main90508-16011

9050816012

main90508-16012

9616000600

main96160-00600

19 parts on this diagram · 2 diagrams in section
