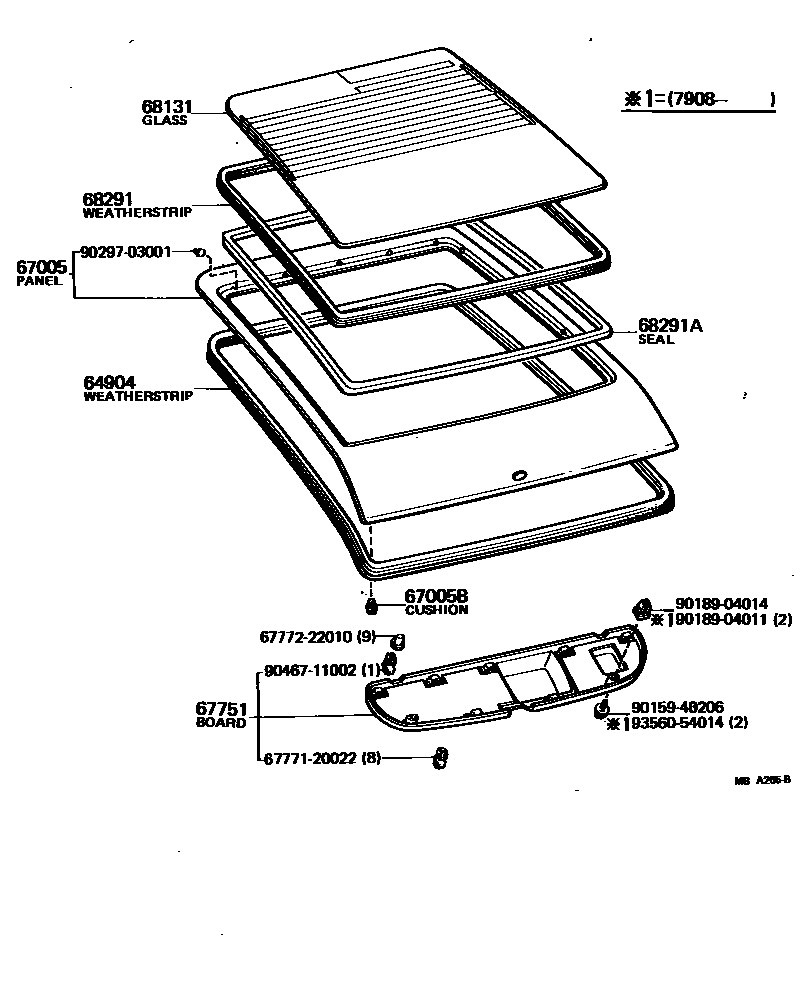

BACK DOOR PANEL & GLASS

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-14010iRA40,TA40..LB197708-198107

67005PANEL SUB-ASSY, BACK DOOR

main67005-14130iRA40,TA40..LB..(ARL,GEN)197708-198107

sub67005-14230

main67005-14140iRA40,TA40..LB197708-198107

W/RR WIPER

sub67005-14240

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041iRA40,TA40..LB197708-198107

W/RR WIPER

67751BOARD, BACK DOOR TRIM

main64780-14030-01iRA40,TA40..LB197708-198107

BLACK,BLACK,TRIM2#

main64780-14030-04iRA40,TA40..LB197708-197908

BLUE,BLUE,TRIM8#

main64780-14030-06iRA40,TA40..LB197708-198107

LIGHT BROWN,BROWN,TRIM4#

main64780-14030-14iRA40,TA40..LB197908-198107

BLUE,BLUE,TRIM8#

68131GLASS, BACK DOOR

main64801-14240iRA40..ST..ARL197708-197811

*TEM,T=4.0,W/*DEF,RADIO

sub64801-14250

main64801-14250iRA40,TA40..LB..EUG197708-197808

*TT,T=4.0W/*DEF,RADIO

main64801-14250iRA40,TA40..LB..GEN197708-197808

*TT,T=4.0,W/*DEF,RADIO

main64801-14280iRA40,TA40..LB..LHD..EUR197708-197808

*TT,T=4.0,W/HEAVY,*DEF,RADIO

main64801-14330iRA40,TA40..LB..(EUR,GEN)197808-198107

*TT,T=4.0,W/*DEF

sub64801-14250

main64801-14340iRA40,TA40..LB..LHD..EUR197808-198107

*TT,T=4.0,W/HEAVY *DEF

sub64801-14280

main64801-14390iRA40..ST..ARL197811-197908

*TEM,T=4.0,W/*DEF,RADIO

sub64801-14240

main64811-14360iRA40,TA40..LB..ST..EUR197708-198107

*TT,T=4.0,W/O *DEF,RADIO

sub64801-14250

68291WEATHERSTRIP, BACK DOOR GLASS

main64812-14050iRA40,TA40..LB197708-198107

68291ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14010iRA40,TA40..LB197708-198107

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9015940206

main90159-40206

9018904011

main90189-04011

9018904014

main90189-04014

9029703001

main90297-03001

9046711002

main90467-11002

9356054014

main93560-54014

15 parts on this diagram · 1 diagram in section
