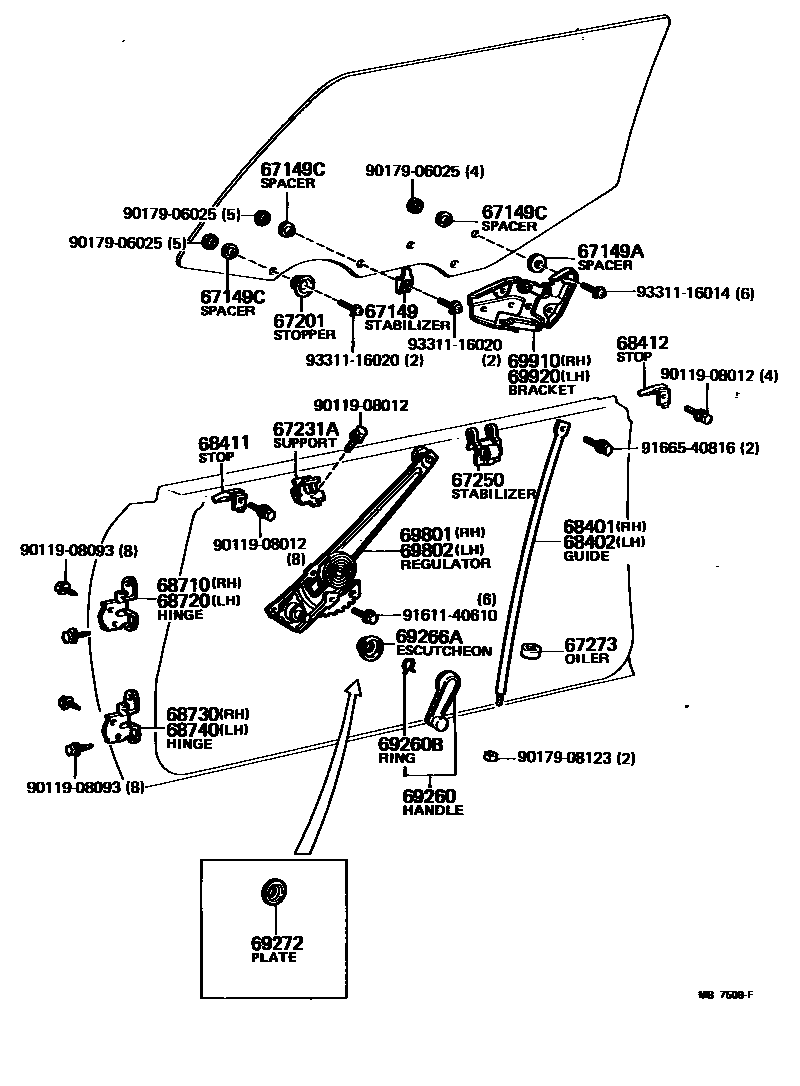

FRONT DOOR WINDOW REGULATOR & HINGE
67149STABILIZER, FRONT DOOR GLASS
67149ASPACER, FRONT DOOR GLASS, NO.1
67149CSPACER, FRONT DOOR GLASS, NO.2
67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
67231ASUPPORT, FRONT DOOR TRIM
67250STABILIZER ASSY, FRONT DOOR GLASS
67273OILER, FRONT DOOR WINDOW BAR
68401GUIDE SUB-ASSY, FRONT DOOR WINDOW, RH
main67401-14060iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X¥2,730197708-198107
68402GUIDE SUB-ASSY, FRONT DOOR WINDOW, LH
main67402-14070iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107
68411STOPPER, DOOR WINDOW GLASS, UPPER FRONT
main67211-14010iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X¥700197708-198107
68412STOPPER, DOOR WINDOW GLASS, UPPER REAR
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
LIGHT BROWN,BROWN,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69910BRACKET ASSY, FRONT DOOR GLASS, RH
69920BRACKET ASSY, FRONT DOOR GLASS, LH
9011908012
9011908093
9017906025
9017908123
9161140610
9166540816
9331116014
9331116020
31 parts on this diagram · 1 diagram in section
