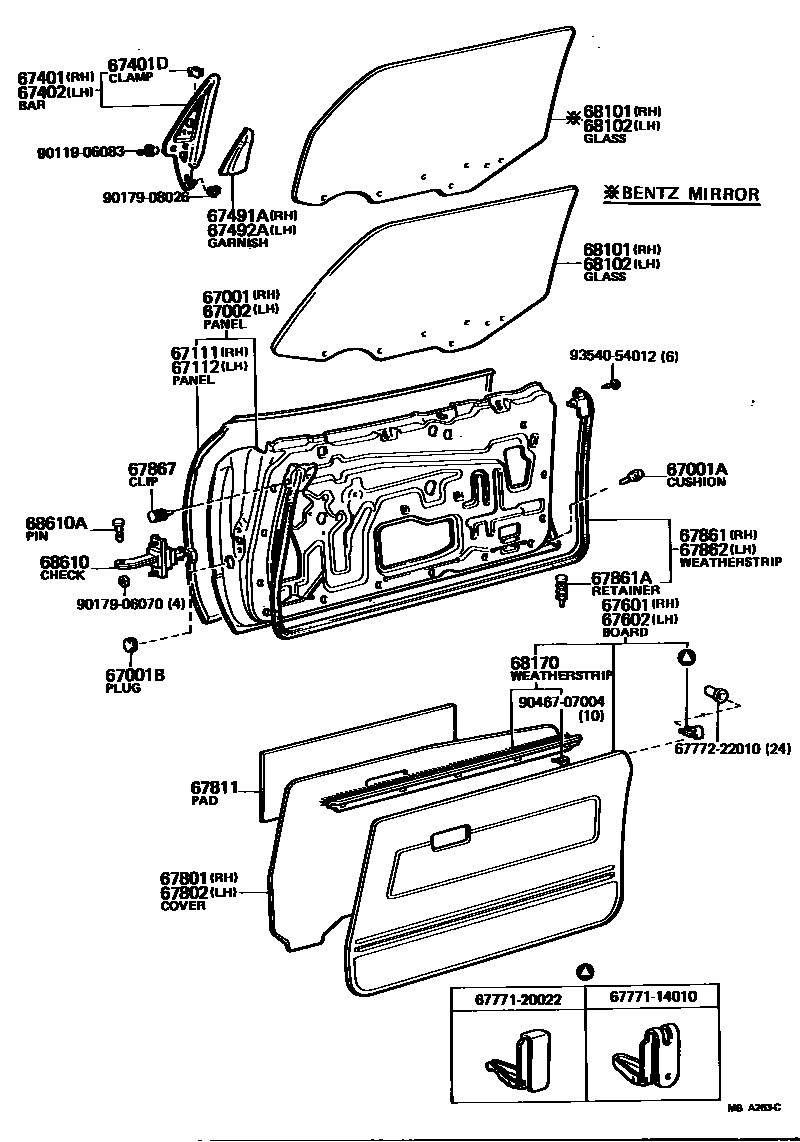

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-14160iRA40,TA40..GEN197708-197907

W/O MIRROR HOLE

sub67001-14162

main67001-14161iRA40,TA40..EUR,GEN197908-198107

main67001-14162iRA40,TA40..GEN197907-197908

W/O MIRROR HOLE

sub67001-14161

main67001-14171iRA40..LHD..5F..XT..GEN198012-198107

SAUDI ARABIA SPEC

sub67001-14270

main67001-14171iRA40..ARL197908-198107

sub67001-14270

main67001-14180iRA40..ARL197708-197907

sub67001-14182

main67001-14182iRA40..ARL197907-197908

main67001-14190iRA40,TA40..RHD..GEN197708-197907

W/MIRROR HOLE

sub67001-14191

main67001-14191iRA40,TA40..EUR197907-197908

W/MIRROR HOLE

67001ACUSHION, FRONT DOOR PANEL

main90541-09121iRA40,TA40197708-198107

67001BPLUG, HOLE(FOR FRONT DOOR PANEL)

main90950-01061iRA40,TA40..LT197708-198107

sub90950-01872

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-14180iRA40,TA40..EUG197708-197907

W/O MIRROR HOLE

sub67002-14182

main67002-14181iRA40,TA40..EUR,GEN197908-198107

main67002-14182iRA40,TA40..GEN197907-197908

W/O MIRROR HOLE

sub67002-14181

main67002-14191iRA40..LHD..5F..XT..GEN198012-198107

SAUDI ARABIA SPEC

sub67002-14300

main67002-14191iRA40..ARL197908-198107

sub67002-14300

main67002-14200iRA40,TA40..EUR197708-197907

W/MIRROR HOLE

sub67002-14201

main67002-14201iRA40,TA40..LHD..GEN197907-197908

W/MIRROR HOLE

main67002-14210iRA40..ARL197708-197907

sub67002-14211

main67002-14211iRA40..ARL197907-197908

sub67002-14191

67111PANEL, FRONT DOOR, OUTER RH

main67111-14110iRA40,TA40..EUR,GEN197708-197907

sub67111-14111

main67111-14111iRA40,TA40197907-198107

main67111-14140iRA40..ARL197708-197907

sub67111-14141

main67111-14141iRA40..LHD..5F..XT..GEN198012-198107

SAUDI ARABIA SPEC

sub67111-14111

67112PANEL, FRONT DOOR, OUTER LH

main67112-14120iRA40,TA40..EUR,GEN197708-197907

sub67112-14121

main67112-14121iRA40,TA40197907-198107

main67112-14150iRA40..ARL197708-197907

sub67112-14151

main67112-14151iRA40..LHD..5F..XT..GEN198012-198107

SAUDI ARABIA SPEC

sub67112-14121

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-14080iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

main67401-14090iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

W/HOLE COVER PLATE

67401DCLAMP(FOR FRONT DOOR WINDOW BAR)

main90463-05021iRA40,TA40197908-198107

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-14080iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

main67402-14090iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

W/HOLE COVER PLATE

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-14010iRA40,TA40..RHD..(LT,ST)197908-198107

main67491-14020iRA40,TA40..RHD..(GT,XT)197908-198107

REMOTE CONTROL MIRROR

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-14010iRA40,TA40..EUR,GEN197908-198107

main67492-14020iRA40,TA40..LHD..(GT,XT)..GEN197908-198107

REMOTE CONTROL MIRROR

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-14660-01iRA40,TA40..LT197908-198107

BLACK,BLACK,TRIM2#

sub67610-14660

main67610-14660-06iRA40,TA40..LT197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub67610-14660

main67610-14660-14iRA40,TA40..LT197908-198107

BLUE,BLUE,TRIM8#

sub67610-14660

main67610-14681-01iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,BLACK,BLACK,TRIM2#

main67610-14681-04iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,BLUE,BLUE,TRIM8#

main67610-14681-06iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,LIGHT BROWN,BROWN,TRIM4#

main67610-14690-01iRA40,TA40..ST197708-198107

BLACK,BLACK,TRIM2#

sub67610-14690

main67610-14690-04iRA40,TA40..ST197708-197908

BLUE,BLUE,TRIM8#

sub67610-14690

main67610-14690-06iRA40,TA40..ST197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67610-14690

main67610-14690-14iRA40,TA40..ST197908-198107

BLUE,BLUE,TRIM8#

sub67610-14690

main67610-14700-01iRA40,TA40..GT197708-197908

BLACK,BLACK,TRIM2#

sub67610-14701

main67610-14700-04iRA40,TA40..GT197708-197908

BLUE,BLUE,TRIM8#

sub67610-14701

main67610-14700-06iRA40,TA40..GT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub67610-14701

main67610-14701-01iRA40,TA40..GT197908-198107

BLACK,BLACK,TRIM2#

main67610-14701-04iRA40,TA40..GT197908-198107

BLUE,BLUE,TRIM8#

main67610-14701-06iRA40,TA40..GT197908-198107

LIGHT BROWN,BROWN,TRIM4#

main67610-14710-01iRA40..XT197708-197908

BLACK,BLACK,TRIM2#

sub67610-14711

main67610-14710-04iRA40..XT197708-197908

BLUE,BLUE,TRIM8#

sub67610-14711

main67610-14710-06iRA40..XT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub67610-14711

main67610-14711-01iRA40..XT197908-198107

BLACK,BLACK,TRIM2#

main67610-14711-01iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#

main67610-14711-04iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#

main67610-14711-04iRA40..XT197908-198107

BLUE,BLUE,TRIM8#

main67610-14711-06iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#

main67610-14711-06iRA40..XT197908-198107

LIGHT BROWN,BROWN,TRIM4#

main67610-14720-01iRA40,TA40..LT197708-197908

BLACK,BLACK,TRIM2#

sub67610-14660

main67610-14720-04iRA40,TA40..LT197708-197908

BLUE,BLUE,TRIM8#

sub67610-14660

main67610-14720-06iRA40,TA40..LT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub67610-14660

main67610-14880-01iRA40,TA40..GT197802-197908

FABRIC SEAT,BLACK,BLACK,TRIM2#

main67610-14880-04iRA40,TA40..GT197802-197908

FABRIC SEAT,BLUE,BLUE,TRIM8#

main67610-14880-06iRA40,TA40..GT197802-197908

FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#

main67610-14881-01iRA40,TA40..GT197908-198107

FABRIC SEAT,BLACK,BLACK,TRIM2#

main67610-14881-04iRA40,TA40..GT197908-198107

FABRIC SEAT,BLUE,BLUE,TRIM8#

main67610-14881-06iRA40,TA40..GT197908-198107

FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-14410-01iRA40,TA40..LT197708-198107

BLACK,BLACK,TRIM2#

sub67620-14410

main67620-14410-04iRA40,TA40..LT197708-197908

BLUE,BLUE,TRIM8#

sub67620-14410

main67620-14410-06iRA40,TA40..LT197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67620-14410

main67620-14410-14iRA40,TA40..LT197908-198107

BLUE,BLUE,TRIM8#

sub67620-14410

main67620-14420-01iRA40,TA40..ST197708-198107

BLACK,BLACK,TRIM2#

sub67620-14420

main67620-14420-04iRA40,TA40..ST197708-197908

BLUE,BLUE,TRIM8#

sub67620-14420

main67620-14420-06iRA40,TA40..ST197708-198107

LIGHT BROWN,BROWN,TRIM4#

sub67620-14420

main67620-14420-14iRA40,TA40..ST197908-198107

BLUE,BLUE,TRIM8#

sub67620-14420

main67620-14440-01iRA40..XT197708-197908

BLACK,BLACK,TRIM2#

sub67620-14440

sub67620-14800

main67620-14440-04iRA40..XT197708-197908

BLUE,BLUE,TRIM8#

sub67620-14440

sub67620-14800

main67620-14440-06iRA40..XT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub67620-14440

sub67620-14800

main67620-14480-01iRA40,TA40..GT197708-197908

BLACK,BLACK,TRIM2#

sub67620-14481

main67620-14480-04iRA40,TA40..GT197708-197908

BLUE,BLUE,TRIM8#

sub67620-14481

main67620-14480-06iRA40,TA40..GT197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub67620-14481

main67620-14481-01iRA40,TA40..GT197908-198107

BLACK,BLACK,TRIM2#

main67620-14481-04iRA40,TA40..GT197908-198107

BLUE,BLUE,TRIM8#

main67620-14481-06iRA40,TA40..GT197908-198107

LIGHT BROWN,BROWN,TRIM4#

main67620-14670-01iRA40,TA40..GT197802-197908

FABRIC SEAT,BLACK,BLACK,TRIM2#

main67620-14670-04iRA40,TA40..GT197802-197908

FABRIC SEAT,BLUE,BLUE,TRIM8#

main67620-14670-06iRA40,TA40..GT197802-197908

FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#

main67620-14671-01iRA40,TA40..GT197908-198107

FABRIC SEAT,BLACK,BLACK,TRIM2#

main67620-14671-04iRA40,TA40..GT197908-198107

FABRIC SEAT,BLUE,BLUE,TRIM8#

main67620-14671-06iRA40,TA40..GT197908-198107

FABRIC SEAT,LIGHT BROWN,BROWN,TRIM4#

main67620-14800-01iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#

main67620-14800-01iRA40..XT197908-198107

BLACK,BLACK,TRIM2#

main67620-14800-04iRA40..XT197908-198107

BLUE,BLUE,TRIM8#

main67620-14800-04iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#

main67620-14800-06iRA40..LHD..GT..EUG;TA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#

main67620-14800-06iRA40..XT197908-198107

LIGHT BROWN,BROWN,TRIM4#

main67620-1B050-01iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,BLACK,BLACK,TRIM2#

main67620-1B050-04iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,BLUE,BLUE,TRIM8#

main67620-1B050-06iRA40,TA40..ST..(EUR,GEN)198008-198107

SPECIAL PACKAGE,LIGHT BROWN,BROWN,TRIM4#

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-14080iRA40,TA40197708-198107

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-14080iRA40,TA40197708-198107

67811PAD, FRONT DOOR SILENCER

main67811-20060iRA40,TA40..EUR,GEN197708-197710

sub67811-12010

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-14150iRA40,TA40197708-198107

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iRA40,TA40197708-198107

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-14150iRA40,TA40197708-198107

67867CLIP, DOOR WEATHERSTRIP

main67869-30020iRA40,TA40197708-198107

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-14160iRA40,TA40..CP..(EUR,GEN)197708-198107

*TT,T=5.0

main68111-14170iRA40..LT197708-197908

*TEM,T=5.0

sub68111-14160

main68111-14180iRA40,TA40..LB..EUG197708-198107

*TT,T=5.0

main68111-14210iRA40..ST..ARL197708-197908

*TEM,T=5.0

sub68111-14180

main68111-14220iTA40..CP..ST197908-198107

*TT,T=5.0,BENTZ MIRROR

main68111-14230iRA40,TA40..LB..ST197908-198107

*TT,T=5.0,BENTZ MIRROR

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-14170iRA40,TA40..CP..(EUR,GEN)197708-198107

*TT,T=5.0

main68112-14180iRA40..LT197708-197908

*TEM,T=5.0

sub68112-14170

main68112-14190iRA40,TA40..LB197708-198107

*TT,T=5.0

main68112-14220iRA40..ST..ARL197708-197908

*TEM,T=5.0

sub68112-14190

main68112-14230iTA40..CP..ST197908-198107

*TT,T=5.0,BENTZ MIRROR

main68112-14240iRA40,TA40..LB..ST197908-198107

*TT,T=5.0,BENTZ MIRROR

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-14100iRA40,TA40197708-198005

RH

sub68170-14101

main68170-14101iRA40,TA40198005-198107

RH

main68220-14080iRA40,TA40197708-198005

LH

sub68220-14081

main68220-14081iRA40,TA40198005-198107

LH

68610CHECK ASSY, FRONT DOOR

main68610-14020iRA40,TA40197708-198107

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010iRA40,TA40197708-198107

sub68617-12010

6777114010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14010

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9011906083

main90119-06083

9017906070

main90179-06070

9017908026

main90179-08026

9046707004

main90467-07004

9354054012

main93540-54012

33 parts on this diagram · 1 diagram in section
