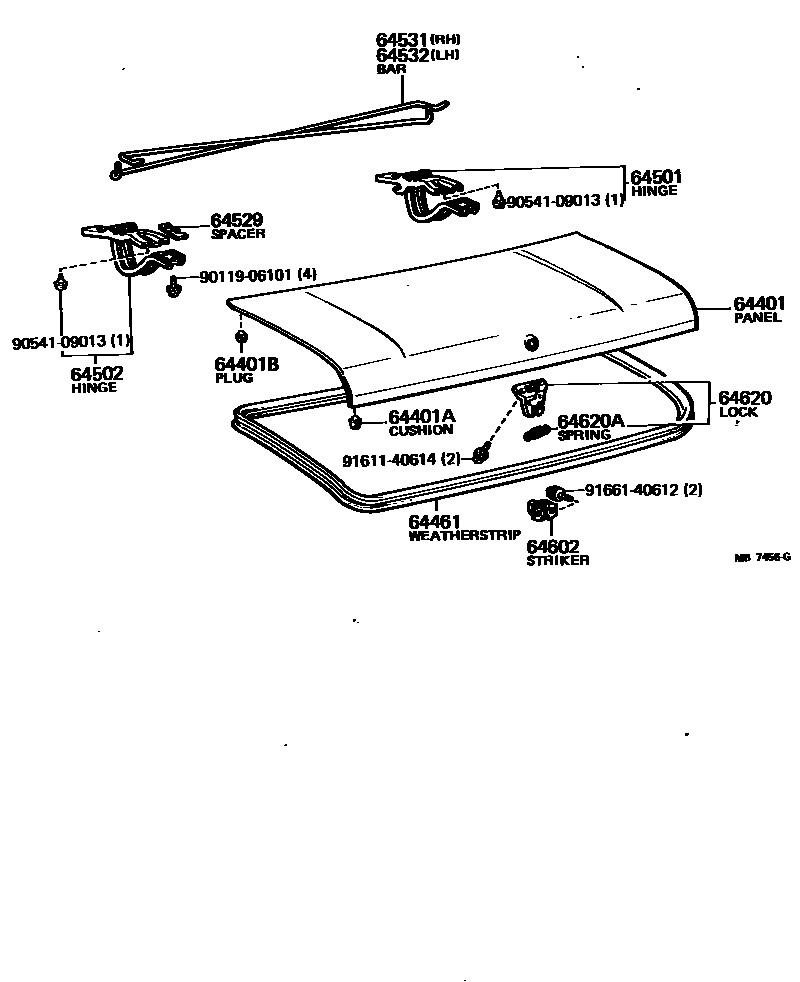

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-14330iRA40,TA40..CP197708-198107

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09041iRA40,TA40..CP197708-198107

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07001iRA40,TA40..CP198008-198107

OD=7

sub90541-07003

main90541-07022iRA40,TA40..CP197801-198008

OD=7

sub90541-07001

main90950-01065iRA40,TA40..CP197708-197801

OD=7

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-14110iRA40,TA40..CP197708-198107

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-14060iRA40,TA40..CP197708-198107

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-14060iRA40,TA40..CP197708-198107

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010iRA40,TA40..CP197708-198107

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-14060iRA40,TA40..CP197708-198107

sub64531-14100

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-14060iRA40,TA40..CP197708-198107

sub64532-14100

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iRA40,TA40..CP197708-198107

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20040iRA40,TA40..CP197908-198107

main64610-95800iRA40,TA40..CP197708-197804

sub64610-95801

main64610-95801iRA40,TA40..CP197804-197908

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08107iRA40,TA40..CP197708-197908

WD=0.8

main90506-09001iRA40,TA40..CP197908-198107

WD=0.8

9011906101

main90119-06101

9054109013

main90541-09013

9161140614

main91611-40614

9166140612

main91661-40612

16 parts on this diagram · 1 diagram in section
