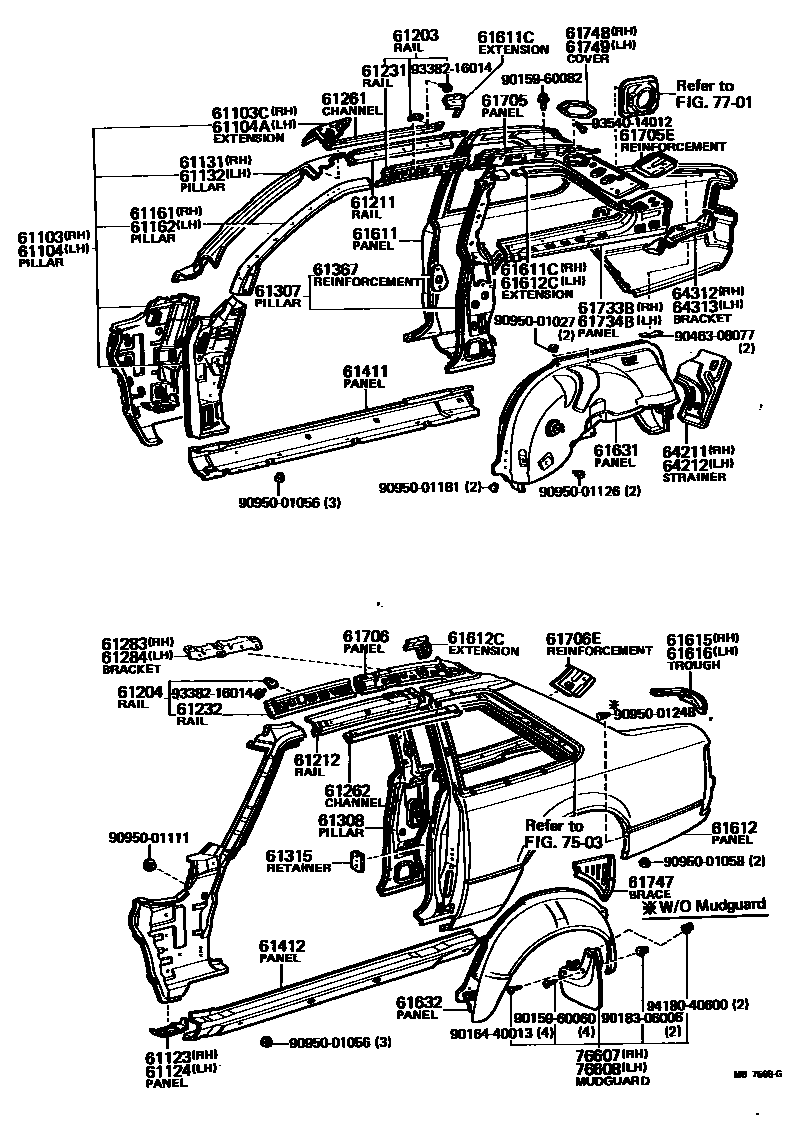

SIDE MEMBER
61104PILLAR SUB-ASSY, FRONT BODY, LH
61123PANEL, COWL SIDE LOWER, RH
61124PANEL, COWL SIDE LOWER, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
W/SUN ROOF
W/SUN ROOF
61204RAIL SUB-ASSY, ROOF SIDE, INNER LH
W/SUN ROOF
W/SUN ROOF
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
RH
LH
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
61611CEXTENSION, QUARTER PANEL, RH
FR
FR
RR
RR
61612PANEL, QUARTER, LH
61612CEXTENSION, QUARTER PANEL, LH
FR
FR
RR
RR
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
61632PANEL, QUARTER WHEEL HOUSE, LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W/SUN ROOF
61705EREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
W/SUN ROOF
61706EREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61733BPANEL, ROOF SIDE, INNER REAR RH
61734BPANEL, ROOF SIDE, INNER REAR LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
RH
LH
LH
61748COVER, ROOF SIDE PANEL INNER HOLE, RH
61749COVER, ROOF SIDE PANEL INNER HOLE, LH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
7503
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
7701
9015960060
main90159-60060
9015960082
main90159-60082
9016440013
main90164-40013
9018306006
main90183-06006
9046308077
main90463-08077
9095001027
main90950-01027
9095001056
main90950-01056
9095001058
main90950-01058
9095001111
main90950-01111
9095001126
main90950-01126
9095001181
main90950-01181
9095001248
main90950-01248
9338216014
main93382-16014
9354014012
main93540-14012
9418040600
main94180-40600
66 parts on this diagram · 6 diagrams in section
