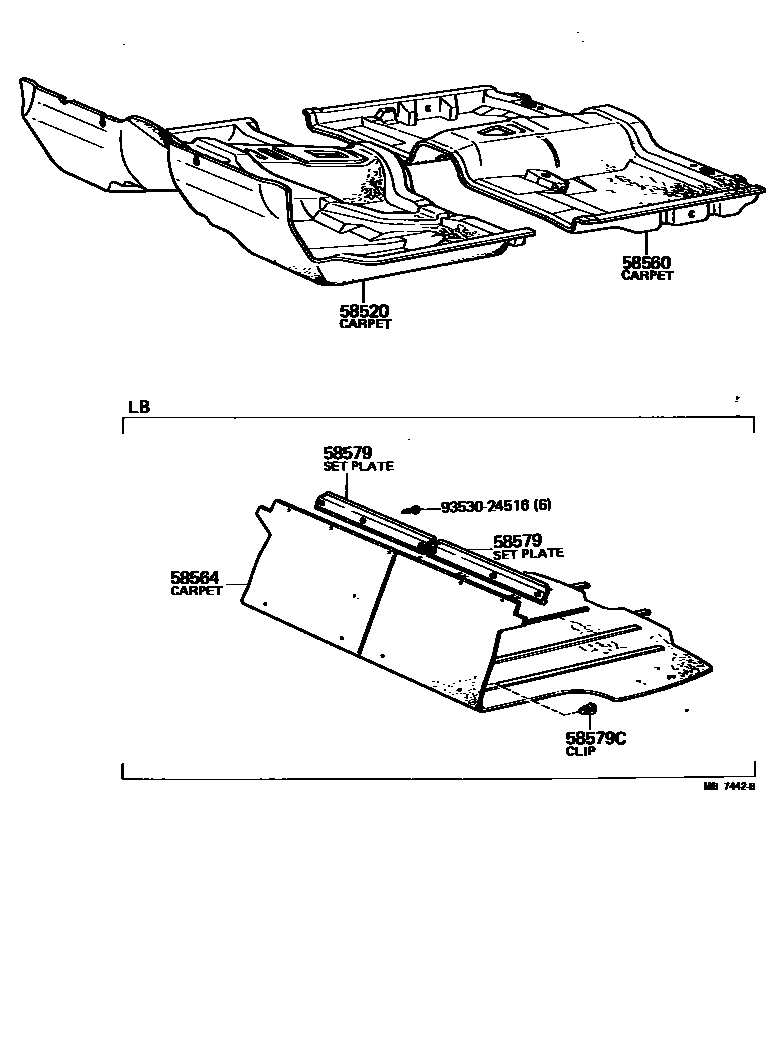

MAT & CARPET

58520CARPET ASSY, FRONT FLOOR

main58510-14390-01iRA40,TA40..RHD..(LT,ST)197708-198107

BLACK,BLACK,TRIM2#

main58510-14390-04iRA40,TA40..RHD..(LT,ST)197708-197908

BLUE,BLUE,TRIM8#

main58510-14390-06iRA40,TA40..RHD..(LT,ST)197708-198107

LIGHT BROWN,BROWN,TRIM4#

main58510-14390-14iRA40,TA40..RHD..(LT,ST)197908-198107

BLUE,BLUE,TRIM8#

main58510-14400-01iRA40,TA40..LHD..(LT,ST)..EUG197708-198107

BLACK,BLACK,TRIM2#

main58510-14400-01iRA40,TA40..LHD..(LT,ST)..EUG197708-198107

BLAK,BLACK,TRIM2#

main58510-14400-04iRA40,TA40..LHD..(LT,ST)..EUG197708-197908

BLUE,BLUE,TRIM8#

main58510-14400-06iRA40,TA40..LHD..(LT,ST)..GEN197708-198107

LIGHT BROWN,BROWN,TRIM4#

main58510-14400-14iRA40,TA40..LHD..(LT,ST)..GEN197908-198107

BLUE,BLUE,TRIM8#

main58510-14450-01iRA40,TA40..RHD..ST..EUG197708-198107

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14450-04iRA40,TA40..RHD..ST..EUG197708-197908

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14450-06iRA40,TA40..RHD..ST..EUG197708-198107

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14450-14iRA40,TA40..RHD..ST..EUG197908-198107

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14460-01iRA40,TA40..LHD..(LT,ST)..EUR197708-198107

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14460-04iRA40,TA40..LHD..(LT,ST)..EUR197708-197908

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14460-06iRA40,TA40..LHD..(LT,ST)..EUR197708-198107

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14460-14iRA40,TA40..LHD..(LT,ST)..EUR197908-198107

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14480-01iRA40,TA40..LHD..(GT,XT)197708-197908

BLACK,BLACK,TRIM2#

main58510-14480-04iRA40,TA40..LHD..(GT,XT)197708-197908

BLUE,BLUE,TRIM8#

main58510-14480-06iRA40,TA40..LHD..(GT,XT)197708-197908

LIGHT BROWN,BROWN,TRIM4#

main58510-14490-01iRA40,TA40..RHD..(GT,XT)..EUG197708-197908

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14490-04iRA40,TA40..RHD..(GT,XT)..EUG197708-197908

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14490-06iRA40,TA40..RHD..(GT,XT)..EUG197708-197908

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14500-01iRA40,TA40..LHD..(GT,XT)..EUG197708-197908

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14500-04iRA40,TA40..LHD..(GT,XT)..EUG197708-197908

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14500-06iRA40,TA40..LHD..(GT,XT)..EUG197708-197908

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14520-01iRA40,TA40..RHD..(GT,XT)197708-197908

BLACK,BLACK,TRIM2#

main58510-14520-04iRA40,TA40..RHD..(GT,XT)197708-197908

BLUE,BLUE,TRIM8#

main58510-14520-06iRA40,TA40..RHD..(GT,XT)197708-197908

LIGHT BROWN,BROWN,TRIM4#

main58510-14530-01iRA40..LHD..ST..EUG198008-198107

*SPP,W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14530-01iRA40,TA40..CP..RHD..(GT,XT)..EUG197908-198107

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14530-06iRA40,TA40..CP..RHD..(GT,XT)..EUG197908-198107

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14530-06iRA40..LHD..ST..EUG198008-198107

*SPP,W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14530-14iRA40,TA40..CP..RHD..(GT,XT)..EUG197908-198107

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14530-14iRA40..LHD..ST..EUG198008-198107

*SPP,W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14550-01iRA40,TA40..LHD..ST..GEN198008-198107

*SPP,BLACK,BLACK,TRIM2#

main58510-14550-01iRA40,TA40..RHD..(GT,XT)197908-198107

BLACK,BLACK,TRIM2#

main58510-14550-04iRA40,TA40..RHD..ST..GEN198008-198107

*SPP,BLUE,BLUE,TRIM8#

main58510-14550-04iRA40,TA40..RHD..(GT,XT)197908-198107

BLUE,BLUE,TRIM8#

main58510-14550-06iRA40,TA40..RHD..(GT,XT)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main58510-14550-06iRA40,TA40..RHD..ST..GEN198008-198107

*SPP,LIGHT BROWN,BROWN,TRIM4#

main58510-14560-01iRA40,TA40..LHD..(GT,XT)197908-198107

BLACK,BLACK,TRIM2#

main58510-14560-01iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#

main58510-14560-01iTA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN198008-198107

*SPP,BLACK,BLACK,TRIM2#

main58510-14560-04iRA40,TA40..LHD..(GT,XT)197908-197910

BLUE,BLUE,TRIM8#

main58510-14560-06iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#

main58510-14560-06iTA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN198008-198107

*SPP,LIGHT BROWN,BROWN,TRIM4#

main58510-14560-06iRA40,TA40..LHD..(GT,XT)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main58510-14560-14iTA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5F..ST..GEN198008-198107

*SPP,BLUE,BLUE,TRIM8#

main58510-14560-14iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#

main58510-14560-14iRA40,TA40..LHD..(GT,XT)197910-198107

BLUE,BLUE,TRIM8#

main58510-14570-01iRA40,TA40..LHD..(GT,XT)..EUG197908-198107

W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14570-01iRA40,TA40..LHD..ST..EUR198008-198107

*SPP,W/RR DUCT,BLACK,BLACK,TRIM2#

main58510-14570-04iRA40,TA40..LHD..(GT,XT)..EUG197908-197910

W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14570-06iRA40,TA40..LHD..ST..EUR198008-198107

*SPP,W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14570-06iRA40,TA40..LHD..(GT,XT)..EUG197908-198107

W/RR DUCT,LIGHT BROWN,BROWN,TRIM4#

main58510-14570-14iRA40,TA40..LHD..ST..EUR198008-198107

*SPP,W/RR DUCT,BLUE,BLUE,TRIM8#

main58510-14570-14iRA40,TA40..LHD..(GT,XT)..EUG197910-198107

W/RR DUCT,BLUE,BLUE,TRIM8#

58560CARPET ASSY, FLOOR, REAR

main58540-14110-01iRA40,TA40..LT,ST197708-198107

BLACK,BLACK,TRIM2#

main58540-14110-04iRA40,TA40..LT,ST197708-197908

BLUE,BLUE,TRIM8#

main58540-14110-06iRA40,TA40..LT,ST197708-198107

LIGHT BROWN,BROWN,TRIM4#

main58540-14110-14iRA40,TA40..LT,ST197908-198107

BLUE,BLUE,TRIM8#

main58540-14130-01iRA40,TA40..RHD..(GT,XT)197708-198107

BLACK,BLACK,TRIM2#

main58540-14130-01iRA40,TA40..RHD..ST..(EUR,GEN)198008-198107

*SPP,BLACK,BLACK,TRIM2#

main58540-14130-04iRA40,TA40..RHD..(GT,XT)197708-197908

BLUE,BLUE,TRIM8#

main58540-14130-04iRA40,TA40..RHD..ST..(EUR,GEN)198008-198107

*SPP,BLUE,BLUE,TRIM8#

main58540-14130-06iRA40,TA40..RHD..ST..(EUR,GEN)198008-198107

*SPP,LIGHT BROWN,BROWN,TRIM4#

main58540-14130-06iRA40,TA40..RHD..(GT,XT)197708-198107

LIGHT BROWN,BROWN,TRIM4#

main58540-14130-14iRA40,TA40..RHD..(GT,XT)197908-198107

BLUE,BLUE,TRIM8#

main58540-14180-01iRA40,TA40..LHD..ST198008-198107

*SPP,BLACK,BLACK,TRIM2#

main58540-14180-01iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#

main58540-14180-01iRA40,TA40..LHD..(GT,XT)197708-198107

BLACK,BLACK,TRIM2#

main58540-14180-04iRA40,TA40..LHD..(GT,XT)197708-197908

BLUE,BLUE,TRIM8#

main58540-14180-06iRA40,TA40..LHD..ST198008-198107

*SPP,LIGHT BROWN,BROWN,TRIM4#

main58540-14180-06iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#

main58540-14180-06iRA40,TA40..LHD..(GT,XT)197708-198107

LIGHT BROWN,BROWN,TRIM4#

main58540-14180-14iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#

main58540-14180-14iRA40,TA40..LHD..(GT,XT)197908-198107

BLUE,BLUE,TRIM8#

main58540-14180-14iRA40,TA40..LHD..ST198008-198107

*SPP,BLUE,BLUE,TRIM8#

58564CARPET, REAR FLOOR

main58570-14041-01iRA40,TA40..LB..ST197908-198107

BLACK,BLACK,TRIM2#

main58570-14041-04iRA40,TA40..LB..ST197908-198107

BLUE,BLUE,TRIM8#

main58570-14041-06iRA40,TA40..LB..ST197908-198107

LIGHT BROWN,BROWN,TRIM4#

main58570-14051-01iRA40,TA40..LB..(GT,XT)197908-198107

BLACK,BLACK,TRIM2#

main58570-14051-01iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLACK,BLACK,TRIM2#

main58570-14051-04iRA40,TA40..LB..(GT,XT)197908-198107

BLUE,BLUE,TRIM8#

main58570-14051-04iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,BLUE,BLUE,TRIM8#

main58570-14051-06iRA40,TA40..LB..(GT,XT)197908-198107

LIGHT BROWN,BROWN,TRIM4#

main58570-14051-06iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN,LIGHT BROWN,BROWN,TRIM4#

main58571-14010-01iRA40,TA40..LB..ST197708-197908

BLACK,TRIM2#

sub58570-14040

main58571-14010-04iRA40,TA40..LB..ST197708-197908

BLUE,TRIM8#

sub58570-14040

main58571-14010-06iRA40,TA40..LB..ST197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub58570-14040

main58571-14030-01iRA40,TA40..LB..(GT,XT)197708-197908

BLACK,TRIM2#

main58571-14030-04iRA40,TA40..LB..(GT,XT)197708-197908

BLUE,TRIM8#

main58571-14030-06iRA40,TA40..LB..(GT,XT)197708-197908

LIGHT BROWN,TRIM4#

58579SET PLATE, REAR FLOOR CARPET, NO.1

main58583-14010iRA40,TA40..LB197708-197804

sub58583-14020

sub58584-14010

main58583-14020iRA40,TA40..LB197804-198107

RH

main58584-14010iRA40,TA40..LB197804-198107

LH

58579CCLIP, REAR FLOOR CARPET SET

main90467-07005-01iRA40,TA40..LB197908-198107

BLACK,BLACK,TRIM2#

sub90467-07005

main90467-07005-04iRA40,TA40..LB197908-198107

BLUE,BLUE,TRIM8#

sub90467-07005

main90467-07005-06iRA40,TA40..LB197908-198107

LIGHT BROWN,BROWN,TRIM4#

sub90467-07005

main90467-07162-01iRA40,TA40..LB197708-197908

BLACK,BLACK,TRIM2#

sub90467-07162

main90467-07162-04iRA40,TA40..LB197708-197908

BLUE,BLUE,TRIM8#

sub90467-07162

main90467-07162-16iRA40,TA40..LB197708-197908

LIGHT BROWN,BROWN,TRIM4#

sub90467-07162

9353024516

main93530-24516

6 parts on this diagram · 1 diagram in section
