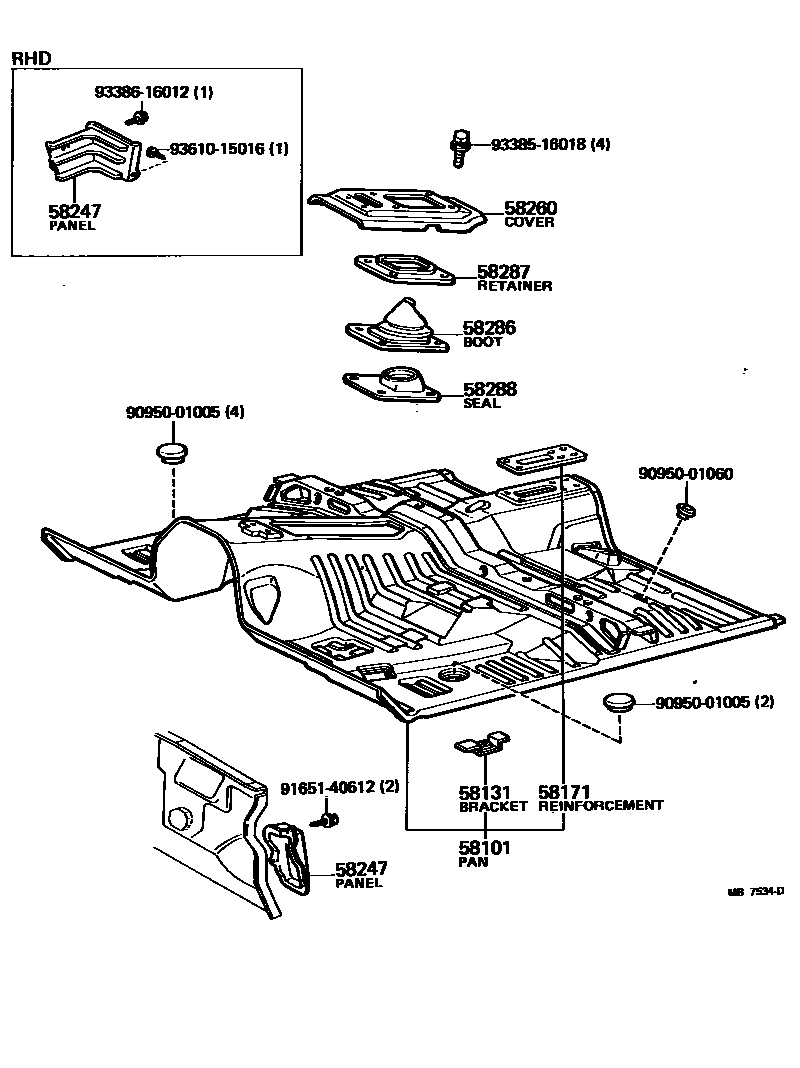

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

58101PAN SUB-ASSY, FRONT FLOOR

main58101-14040iRA40,TA40197711-197808

sub58101-14041¥66,700

sub58041-14050¥12,500

sub89437-14040

main58101-14041iRA40,TA40¥66,700197808-197907

sub58101-14042

sub58041-14051

sub58152-14081¥2,330

main58101-14042iRA40,TA40197907-197908

sub58111-14040

sub57257-14040

sub57258-14040

sub57417-14021

sub57418-14011

sub57451-14020

sub58131-12020¥230

sub58132-14050

sub58135-20010

sub58141-14010

sub58171-14021

sub58183-14020

sub58184-14020

sub58193-14010

sub58266-14040¥320

sub58277-14020

sub58278-14020

sub58294-14030

sub90461-07004¥550

main58101-14044iRA40,TA40197908-198107

sub58101-14902

sub58193-14010

main58101-14901iRA40,TA40¥67,200197708-197711

sub58101-14040

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12020iRA40,TA40¥230197708-198107

sub58131-14030¥340

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-14020iRA40,TA40197708-198107

58247PANEL, FOOTREST, INSIDE

main58191-14020iRA40,TA40..RHD..(GT,XT)¥1,470197908-198107

main58191-14020iRA40,TA40..RHD..ST¥1,470198008-198107

*SPP

main58191-14030iRA40,TA40..LHD..(GT,XT)197908-198107

main58191-14030iRA40,TA40..LHD..ST198008-198107

*SPP

main58191-14030iTA40..LB..5F..ST..EUG198003-198003

SPECIAL CAMPAIGN

58260COVER ASSY, TRANSMISSION, FRONT

main58281-14050iTA40..MTM197708-197908

main58281-14051iTA40..MTM197908-198107

sub58281-14050

main58281-14060iRA40,TA40..3FC197708-197908

main58281-14061iRA40,TA40..3FC197908-198107

sub58281-14060

main58281-14070iRA40..MTM197708-197908

main58281-14071iRA40..MTM197908-198107

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-14021iRA40..MTM¥2,620197708-197908

main58286-20030iRA40..MTM197908-198107

main58286-20070iTA40..MTM¥2,520197708-198107

58287RETAINER, SHIFT LEVER BOOT

main58287-14011iRA40..MTM197708-197908

main58287-20050iTA40..MTM¥680197708-198107

58288SEAL, SHIFT LEVER BOOT

main58288-14021iRA40..MTM¥1,900197708-197807

sub58288-14050¥1,900

main58288-14040iTA40..MTM¥1,600197807-198107

main58288-14050iRA40..MTM¥1,900197807-197908

main58288-20050iRA40..MTM¥1,530197908-198107

main58288-20060iTA40..MTM¥1,320197708-197807

sub58288-14040¥1,600

9095001005

main90950-01005¥400

9095001060

main90950-01060¥200

9165140612

main91651-40612¥70

9338516018

main93385-16018¥140

9338616012

main93386-16012¥80

9361015016

main93610-15016¥180

14 parts on this diagram · 2 diagrams in section
