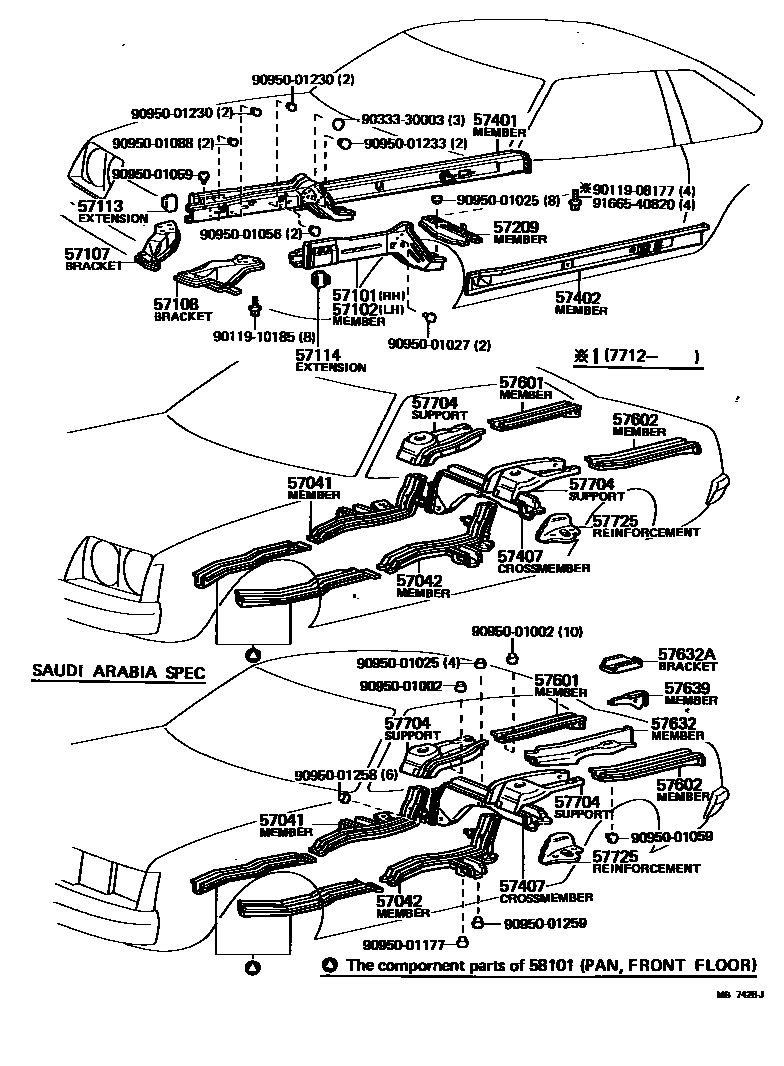

FLOOR SIDE MEMBER

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-14050iRA40,TA40197708-197811

main57041-14060iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

main57041-14070iRA40,TA40..GT197811-198107

sub57041-14060

main57041-20020iTA40..LB..LHD..5F..ST..GEN197811-198107

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-14040iRA40,TA40197708-197811

main57042-14050iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

main57042-14060iTA40..B;TA40..RHD;TA40..LHD..4F..GEN;TA40..LHD..GT..GEN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..ST..GEN197811-198107

sub57042-14050

main57042-20020iRA40,TA40..LT,ST,XT197811-198107

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14050iRA40,TA40197708-197908

sub57101-14100

main57101-14091iRA40,TA40..(GT,ST,XT)..GEN197905-198107

W/URETHANE BUMPER

sub57101-14120

main57101-14101iRA40,TA40197908-198107

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14040iRA40,TA40197708-197908

sub57102-14100

main57102-14091iRA40..ARL197905-198107

W/URETHANE BUMPER

sub57102-14120

main57102-14101iRA40,TA40197908-198107

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14012iRA40,TA40..LT,ST,XT197708-198107

sub57107-14040

main57107-14040iRA40,TA40..GT197708-198107

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14012iRA40,TA40..(LT,ST,XT)..(EUR,GEN)197708-198107

sub57108-14040

main57108-14040iRA40,TA40..GT197708-198107

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14020iRA40,TA40197708-197804

sub57113-14050

main57113-14050iRA40,TA40197804-197905

main57113-14060iRA40,TA40197905-198107

57114EXTENSION, FRONT SIDE MEMBER, LH

main57113-14020iRA40,TA40197708-197804

sub57113-14050

main57113-14050iRA40,TA40197804-197905

main57113-14060iRA40,TA40197905-198107

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14110iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-198107

main57209-15010iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197911

sub57209-15011

main57209-15011iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197911-198107

sub57209-20091

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14090iRA40,TA40197708-198107

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14090iRA40,TA40197708-198107

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57405-14020iRA40,TA40197708-197806

sub57405-14021

main57405-14021iRA40,TA40197806-197901

sub57405-14040

main57405-14040iRA40,TA40197901-198107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14011iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

main57601-14020iRA40,TA40197708-197908

main57601-14081iRA40,TA40197908-198107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14011iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

main57602-14020iRA40,TA40197708-197908

main57602-14071iRA40,TA40197908-198107

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-14010iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

57632ABRACKET, REAR BUMPER ARM SUPPORT, CENTER

main57616-14050iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

57639MEMBER, REAR FLOOR, CENTER NO.2

main57639-14010iRA40..CP..LHD..5F198012-198107

SAUDI ARABIA SPEC

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iRA40,TA40197708-198107

RH

main57704-14010iRA40,TA40197708-198107

LH

57725REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main57725-14010iRA40,TA40197901-198107

RH

main57726-14010iRA40,TA40197901-198107

LH

9011908177

main90119-08177

9011910185

main90119-10185

9033330003

main90333-30003

9095001002

main90950-01002

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001059

main90950-01059

9095001088

main90950-01088

9095001177

main90950-01177

9095001230

main90950-01230

9095001233

main90950-01233

9095001258

main90950-01258

9095001259

main90950-01259

9166540820

main91665-40820

34 parts on this diagram · 1 diagram in section
