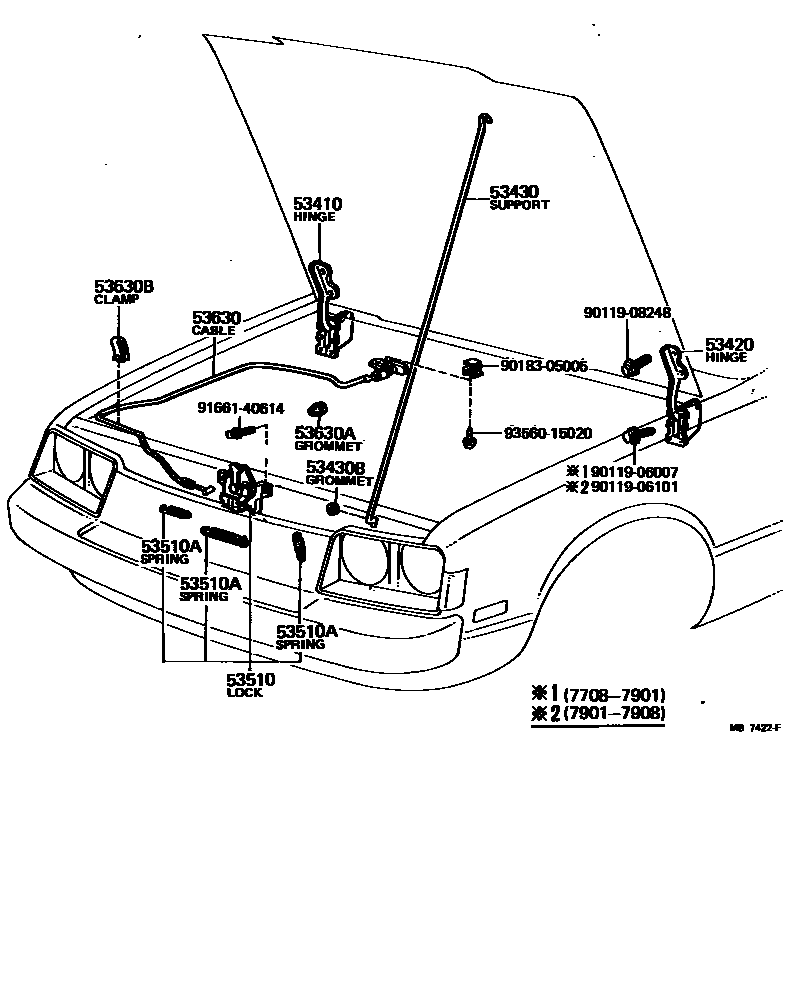

HOOD LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

53410HINGE ASSY, HOOD, RH

main53410-14040iRA40,TA40197708-198107

53420HINGE ASSY, HOOD, LH

main53410-14040iRA40,TA40197708-198107

53430SUPPORT ASSY, HOOD

main53451-14030iRA40,TA40197708-197908

main53451-14031iRA40,TA40197908-198107

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15002iRA40,TA40197708-198107

53510LOCK ASSY, HOOD

main53510-14090iRA40,TA40..RHD197708-197908

main53510-14091iRA40,TA40..RHD197908-198107

main53510-14100iRA40,TA40..LHD197708-197908

main53510-14101iRA40,TA40..LHD197908-198107

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-08107iRA40,TA40197708-197908

WD=0.8

main90506-09008iRA40,TA40197908-198107

WD=0.9,CW=21.25,WD=0.9

main90506-10487iRA40,TA40197708-197908

WD=1.0

main90506-20008iRA40,TA40197708-198107

WD=2.0,CW=17,WD=2.0

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14100iRA40,TA40197708-197908

main53630-14101iRA40,TA40197908-198002

main53630-14150iRA40,TA40198002-198107

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15001iRA40,TA40197708-198002

main90480-15194iRA40,TA40198002-198107

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90463-10338iRA40,TA40197708-198107

9011906007

main90119-06007

9011906101

main90119-06101

9011908248

main90119-08248

9018305005

main90183-05005

9166140614

main91661-40614

9356015020

main93560-15020

15 parts on this diagram · 4 diagrams in section
