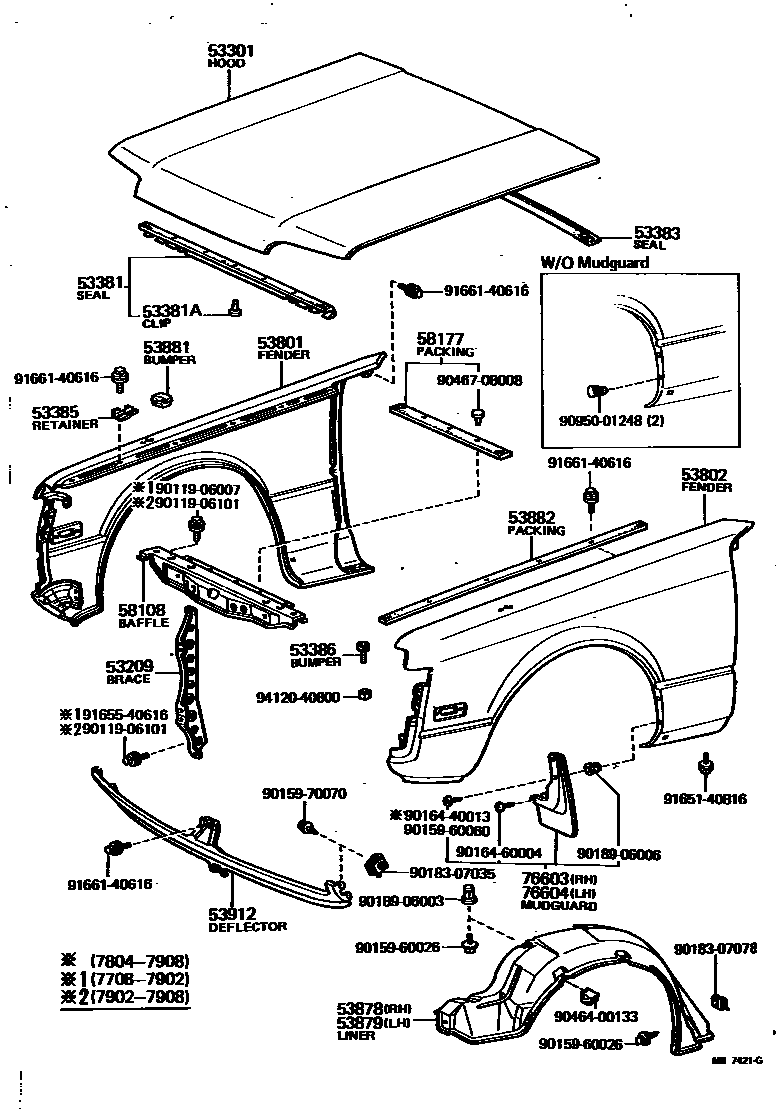

HOOD & FRONT FENDER

0001 1 0002 1

53209BRACE SUB-ASSY, HOOD LOCK

main53208-14070iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197711-197804

sub53208-14080

main53208-14080iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197804-197908

main53208-14081iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..3FC..EUG;RA40..LB..LHD..5F..XT..GEN;TA40..CP..LHD..5197908-198107

main53215-14040iTA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB..RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X197708-197711

53301HOOD SUB-ASSY

main53301-14130iRA40,TA40197804-197908

sub53301-14140

main53301-14131iRA40,TA40..ARL,GEN197908-198107

sub53301-14141

main53301-14140iRA40,TA40197708-197804

main53301-14141iRA40,TA40..EUR198010-198107

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14050iRA40,TA40197708-197908

main53381-14070iRA40,TA40197908-198107

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008iRA40,TA40197708-197908

main90467-08011iRA40,TA40197908-198107

53383SEAL, HOOD TO COWL TOP

main53383-14040iRA40,TA40197804-197908

main53383-14041iRA40,TA40197908-198107

main53383-14050iRA40,TA40197708-197804

sub53383-14040

53385RETAINER, HOOD, BUMPER

main53385-14010iRA40,TA40197708-198107

RH

main53386-14010iRA40,TA40197708-198107

LH

53386BUMPER, HOOD, REAR

main53382-20011iRA40,TA40197708-198107

sub53382-90A00

53801FENDER SUB-ASSY, FRONT RH

main53801-14360iRA40,TA40..GEN197708-197908

W/MIRROR HOLE

main53801-14361iTA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..RHD..(GT,ST)..GEN;TA40..CP..LHD..5F..(GT,ST)..GEN197908-198107

W/MIRROR HOLE

main53801-14370iRA40,TA40..ARL,GEN197808-197908

W/O MIRROR HOLE

sub53801-14400

main53801-14381iRA40,TA40..ARL,GEN197908-198107

W/O MIRROR HOLE

main53801-14400iRA40,TA40..EUR197708-197908

W/O MIRROR HOLE

main53801-14401iRA40,TA40..EUR197908-198107

W/O MIRROR HOLE

sub53801-14381

53802FENDER SUB-ASSY, FRONT LH

main53802-14380iRA40,TA40..GEN197708-197908

W/MIRROR HOLE

main53802-14381iRA40..(ST,XT)..GEN197908-198107

W/MIRROR HOLE

main53802-14390iRA40,TA40..ARL,GEN197808-197908

W/O MIRROR HOLE

sub53802-14420

main53802-14401iRA40,TA40..ARL,GEN197908-198107

W/O MIRROR HOLE

main53802-14420iRA40,TA40197708-197908

W/O MIRROR HOLE

main53802-14421iRA40,TA40..EUR197908-198107

W/O MIRROR HOLE

sub53802-14401

53878LINER, FRONT FENDER, RH

main53875-14040iRA40,TA40197708-197908

main53875-14041iRA40,TA40197908-198107

53879LINER, FRONT FENDER, LH

main53876-14040iRA40,TA40197708-197908

main53876-14041iRA40,TA40197908-198107

53881BUMPER, FENDER TO HOOD

main53384-14010iRA40,TA40197708-197804

main53384-14030iRA40,TA40197804-198107

53882PACKING, FRONT FENDER MAIN

main53882-14060iRA40,TA40197708-198107

53912DEFLECTOR, FRONT BUMPER STONE

main53911-14080iRA40,TA40197708-197908

main53911-14081iRA40,TA40197908-198107

58108BAFFLE SUB-ASSY, RADIATOR UPPER

main53205-14030iRA40,TA40197908-198107

main53216-14070iRA40,TA40197708-197908

58177PACKING, RADIATOR BAFFLE

main53293-14020iTA40..GEN;RA40..LHD..GT..GEN;RA40..(LT,ST,XT)..(ARL,GEN)197708-198107

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-19015-01iRA40,TA40197708-197804

BLACK,BLACK

sub76603-14010

main76603-19015-05iRA40,TA40197708-197804

GOLD-M,BEIGE

sub76603-14010

main76603-19015-06iRA40,TA40197708-197804

COPPER-M,BROWN

sub76603-14010

main76603-19015-08iRA40,TA40197708-197804

WHITE,IVORY

sub76603-14010

main76603-19016-01iRA40,TA40197804-198107

BLACK,BLACK

sub76603-19016

main76603-19016-02iRA40,TA40197908-198008

RED,RED/MAROON

sub76603-19016

main76603-19016-06iRA40,TA40197804-198107

COPPER-M,BROWN

sub76603-19016

main76603-19016-08iRA40,TA40197804-197908

WHITE,IVORY

sub76603-19016

main76603-19016-12iRA40,TA40198008-198107

RED,RED/MAROON

sub76603-19016

main76603-19016-18iRA40,TA40197908-198107

WHITE,IVORY

sub76603-19016

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-19015-01iRA40,TA40197708-197804

BLACK,BLACK

sub76604-14010

main76604-19015-05iRA40,TA40197708-197804

COLD-M,BEIGE

sub76604-14010

main76604-19015-06iRA40,TA40197708-197804

COPPER-M,BROWN

sub76604-14010

main76604-19015-08iRA40,TA40197708-197804

WHITE,IVORY

sub76604-14010

main76604-19016-01iRA40,TA40197804-198107

BLACK,BLACK

sub76604-19016

main76604-19016-02iRA40,TA40197908-198008

RED,RED/MAROON

sub76604-19016

main76604-19016-06iRA40,TA40197804-198107

COPPER-M,BROWN

sub76604-19016

main76604-19016-08iRA40,TA40197804-197908

WHITE,IVORY

sub76604-19016

main76604-19016-12iRA40,TA40198008-198107

RED,RED/MAROON

sub76604-19016

main76604-19016-18iRA40,TA40197908-198107

WHITE,IVORY

sub76604-19016

9011906007

main90119-06007

9011906101

main90119-06101

9015960026

main90159-60026

9015960060

main90159-60060

9015970070

main90159-70070

9016440013

main90164-40013

9016460004

main90164-60004

9018307035

main90183-07035

9018307078

main90183-07078

9018906003

main90189-06003

9018906006

main90189-06006

9046400133

main90464-00133

9046708008

main90467-08008

9095001248

main90950-01248

9165140816

main91651-40816

9165540616

main91655-40616

9166140616

main91661-40616

9412040800

main94120-40800

36 parts on this diagram · 2 diagrams in section
